Yamaha MG20 Mixer
6.110 kr. (inkl. moms)
| Afhent på lager | 0,- |
| GLS - Pakkeshop | 0,- |
| GLS - Erhvervslevering | 59,- |
| GLS - Hjemmelevering | 99,- |
| Danske Fragtmænd* | 299,- |
Tilbehør der passer til:
- 20-kanals livemixer
- 16 mic/20 line inputs
- PAD-switch + phantom power
- D-PRE mic preamps
- kompressorer, EQ, high pass filter mm.

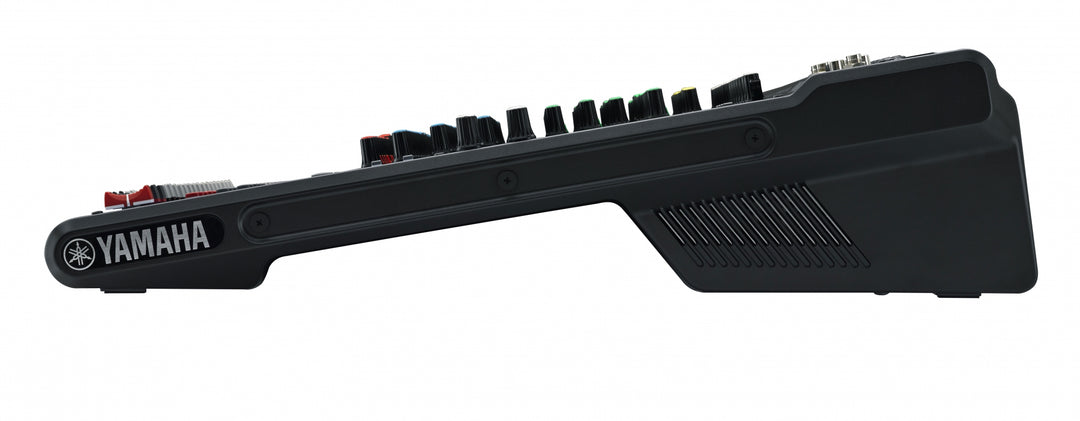

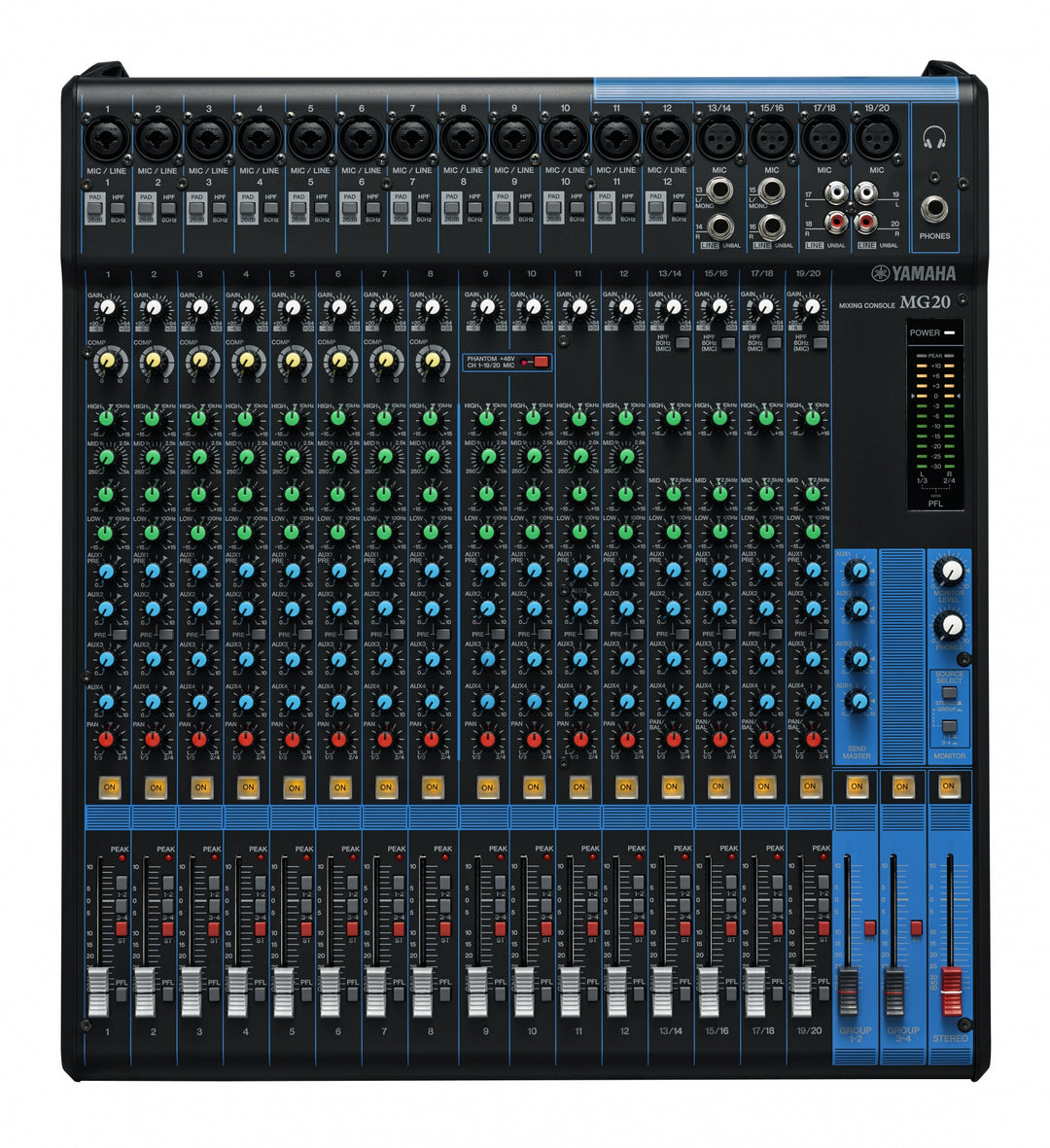

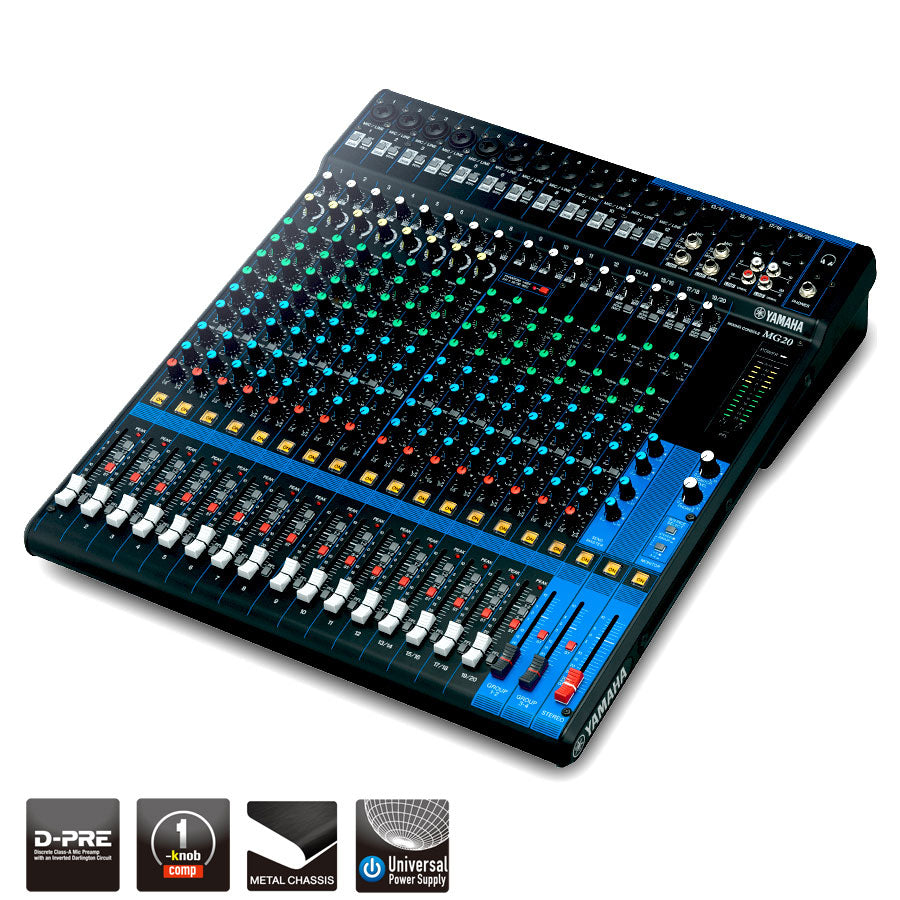

Yamaha MG20 Livemixer
Yamaha MG20 er en 20-kanals livemixer med 16 mic/20 line inputs (12 mono + stereo), 4 GROUP busser, 4 AUX, PAD-switch på mono-inputs, 48 V phantom power, 3-bånds EQ og high pass filter til eliminering af lavfrekvente lyde.
Yamaha MG20 er konstrueret i pulverlakeret metalchassis, der giver optimal holdbarhed og samtidig sørger for passiv afkøling af komponenter.
D-PRE mic preamps
MG-serien har indbygget D-PRE mic preamps med operationsforstærkere, der er med til at forbedre effekten og reducere impedansen. Yamaha MG20 har et inverteret Darlington-kredsløb med to kaskader, der giver lav forvrængning. Frekvensgangen er bred, hvilket gør mixeren i stand til håndtere signaler fra alle lydkilder.
1-knaps kompressorer
Yamaha MG20?s 1-knaps kompressorer er enkle og hurtige at bruge. Du kan ændre dynamikken af dine signaler for optimeret lyd af eksempelvis guitarer, basser eller trommer mm.
| Varenr.: | YAM-MG20 |
| EAN: | 4957812557542 |
| Vægt (kg.) | 6,9 |
| Antal mikrofonindgange | 16 |
| Antal stereo kanaler | 4 |
| Antal AUX sends | 4 |
| Indbygget effektmaskine | Nej |
| Fadere | Ja |
| Antal grupper | 2 |
| Indbygget kompressor | Ja |
| USB Interface | Nej |
| Multitrack | Nej |
| Bluetooth | Nej |
| 19" Rackmonterbar | Ja |
Features |
|
|
20-Channel Mixing Console
|
|
|
Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo)
|
|
|
4 GROUP Buses + 1 Stereo Bus
|
|
|
4 AUX (incl. FX)
|
|
|
“D-PRE” mic preamps with an inverted Darlington circuit
|
|
|
1-Knob compressors
|
|
|
PAD switch on mono inputs
|
|
|
+48V phantom power
|
|
|
XLR balanced outputs
|
|
|
Internal universal power supply for world-wide use
|
|
|
Rack Mount Kit Included
|
|
|
Metal chassis
|
|
Outline |
|

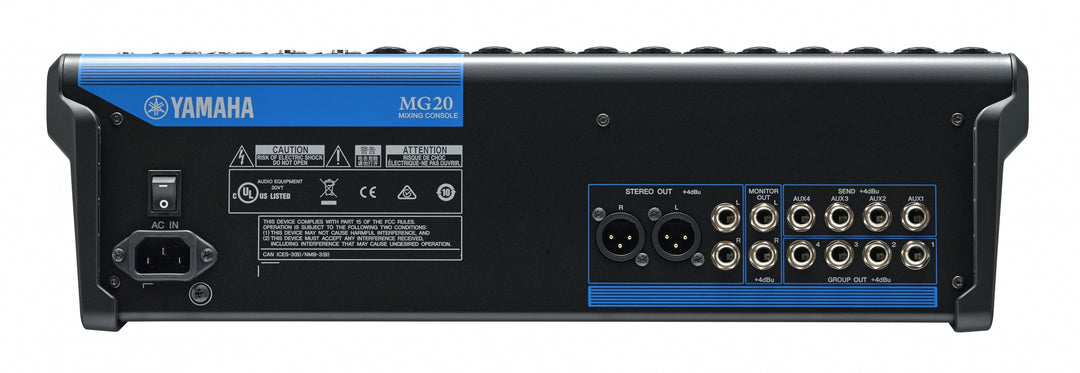

| I/O | |
| Phantom power: | +48V |
| Input Channels: | |
| Mono[MIC/LINE]: | 12 |
| Mono/Stereo[MIC/LINE]: | 4 |
| Output Channels | |
| STEREO OUT: | 2 |
| MONITOR OUT: | 1 |
| PHONES: | 1 |
| AUX SEND: | 4 |
| GROUP OUT: | 4 |
| Bus: | Stereo: 1, GROUP: 4, AUX: 4 |
| Input Channel Function | |
| PAD: | 26 dB(Mono) |
| HPF: | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) |
| COMP: | 1-knob compressor (Gain/Threshold/Ratio) |
| Threshold: +22 dBu to -8 dBu, | |
| Ratio: 1:1 to 4:1, | |
| Output level: 0 dB to 7 dB | |
| Attack time: approx. 25 msec | |
| Release time: approx. 300 msec | |
| EQ HIGH | Gain: +15 dB/-15 dB, |
| EQ MID | |
| Gain: | +15 dB/-15 dB |
| Frequency: | Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking |
| EQ LOW | |
| Gain: | +15 dB/-15 dB |
| Frequency: | 100 Hz shelving |
| PEAK LED: | LED turns on when post EQ signal reaches 3 dB below clipping(Mono) |
| Level Meter: | 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
General specifications |
|
| Total harmonic distortion: | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min |
| Frequency response: | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz |
| GAIN knob: | Min |
| Hum & noise level | |
| Equivalent input noise: | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise: | -102 dBu (STEREO OUT, STEREO master fader: Min) |
| Crosstalk: | -78 dB |
| Power requirements: | AC 100 – 240 V, 50 / 60 Hz |
| Power consumption: | 36 W |
| Dimensions (WxHxD): | 444 mm (17.5") x 130 mm (5.1") x 500 mm (19.7") |
| Net weight: | 6.9kg (15.2 lbs.) |
| Included Accessory: | Owner’s Manual, Technical Specifications, AC power cord, Rack-mount kit |
| Others: | Operating Temperature: 0 to +40˚C |
