dbx 234S Stereo 2/3 Vejs, Mono 4-Vejs Delefilter
Beskrivelse
Beskrivelse
DBX 234s er et stereo 2- eller 3-vejs. Mono 4-vejs delefilter.
Udover regulært delefilter har dbx 223 S ekstra funktioner som LF (subwoofer) summed out og 40 Hz high pass filter.
dbx 234 s er et ægte 24dB per octave Linkwitz-Riley filter der er den professionelle standard.

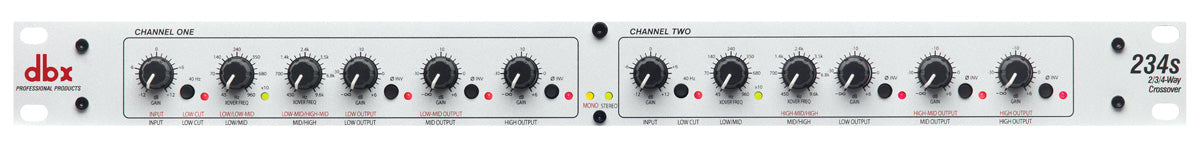

dbx 234S
Stereo 2/3 Vejs, Mono 4-Vejs Delefilter
Oplev professionel lydkvalitet med dbx 234s, en alsidig crossover designet til at optimere dit PA-system. Ved hjælp af præcisionsfiltre adskilles lydsignaler, og de korrekte frekvenser sendes til dine højttalerdrivere. Dette reducerer forvrængning, maksimerer forstærkerens ydeevne og leverer en klar og fyldig lydoplevelse.
Funktioner
- Valgbar stereo 2/3-vejs eller mono 4-vejs operation.
- TRS balancerede ind- og udgange.
- 40 Hz low-cut filter for begge kanaler.
- 24 dB per oktav Linkwitz-Riley filtre for præcis frekvensdeling.
- Uafhængige niveaukontroller og fasevender på alle udgange.
- Indikatorer for stereo/mono-status.
Fordele
Denne crossover er ideel til både professionelle lydinstallationer og transportable systemer. Med sin robuste konstruktion og intuitive betjening er dbx 234s et pålideligt valg til at opnå førsteklasses lyd.
Tag dit lydsystem til næste niveau med dbx 234s.
Yderligere Specifikationer
Yderligere Specifikationer

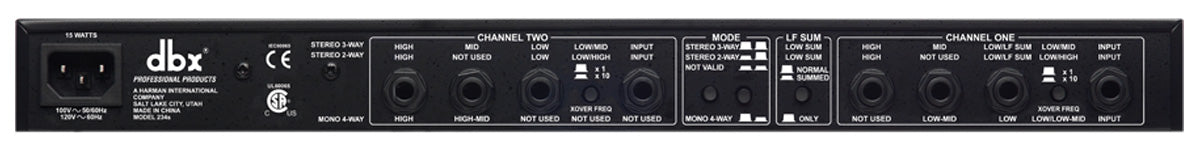

| Input Connectors | 1/4" TRS |
| Input Type | Electronically balanced/unbalanced, RF filtered |
| Input Impedance | Balanced >50k ohm, unbalanced >25k ohm |
| Max Input | >+22dBu balanced or unbalanced |
| CMRR | >40dB, typically >55dB at 1kHz |
| Output Connectors | 1/4" TRS |
| Output Type | Impedance-balanaced/unbalanced, RF filtered |
| Output Impedance | Balanced 200 ohm, unbalanced 100 ohm |
| Max Output | >+21dBu balanced/unbalanced into 2k ohms or greater |
| Bandwidth | 20Hz to 20kHz, +/-0.5dB |
| Frequency Response | < 3 Hz to > 90 kHz, +0/-3 dB |
| Signal to Noise Ratio | Ref: +4 dBu, 22 kHz measurement bandwidth |
| Signal-to-Noise (Stereo Mode) | >94dB (Low Output), >93dB (Mid Output), >90dB (High Output) |
| Signal-to-Noise (Mono Mode) | >94dB (Low Output, Low/Mid Output); >92dB (High/Mid Output); >88dB (High Output) |
| Dynamic Range | > 106 dB, unweighted, any output |
| THD+Noise | < 0.004% at +4 dBu, 1 kHz; < 0.04% at +20 dBu, 1 kHz |
| Interchannel Crosstalk | < -80 dB, 20 Hz to 20 kHz |
| Crossover Frequencies (Stereo Mode) | Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting); Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting); Mid/High 450Hz to 9.6kHz (x10 setting) |
| Crossover Frequencies (Mono Mode) | Low/Low-Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting); Low-Mid/High-Mid: 450 Hz to 9.6 kHz; High-Mid/High: 450 Hz to 9.6 kHz |
| Crossover Filter Type | Linkwitz-Riley, 24 dB/octave, state-variable |
| Low cut Switch | Activates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel. |
| Phase Invert Switch | Inverts the phase at the output, one switch per output. |
| x1 / x10 Switch | Multiplies the low-high(mono: low/mid and high/mid) crossover frequency range of the front-panel markings by a factor of 1 or 10, one switch per channel. |
| Mode Switch | Selects stereo/mono and 2/3/4-way operation |
| LF Sum Switch | Selects normal (stereo) or mono-summed low frequency operation and disables Ch 2’s low output phase invert LED to indicate that this output is not operational in the LF sum mode. |
| Indicators | Stereo Operation (Green); Mono Operation (Yellow); Low Cut (Red-per channel); x10 (Green-per channel); Phase Invert (Red-per output) |
| Operating Voltage | 100-120 VAC 50/60Hz; 120 VAC 60Hz 230 VAC 50/60Hz |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Power Consumption | 15W |
| Power Connector | IEC receptacle |
| Dimensions | 1.75" H X 19" W X 6.9" D (4.4cm x 48.3cm x 17.5cm) |
| Unit Weight | 4.0 lbs. (1.8 kg) |
| Shipping Weight | 5.8 lbs. (2.6 kg) |
