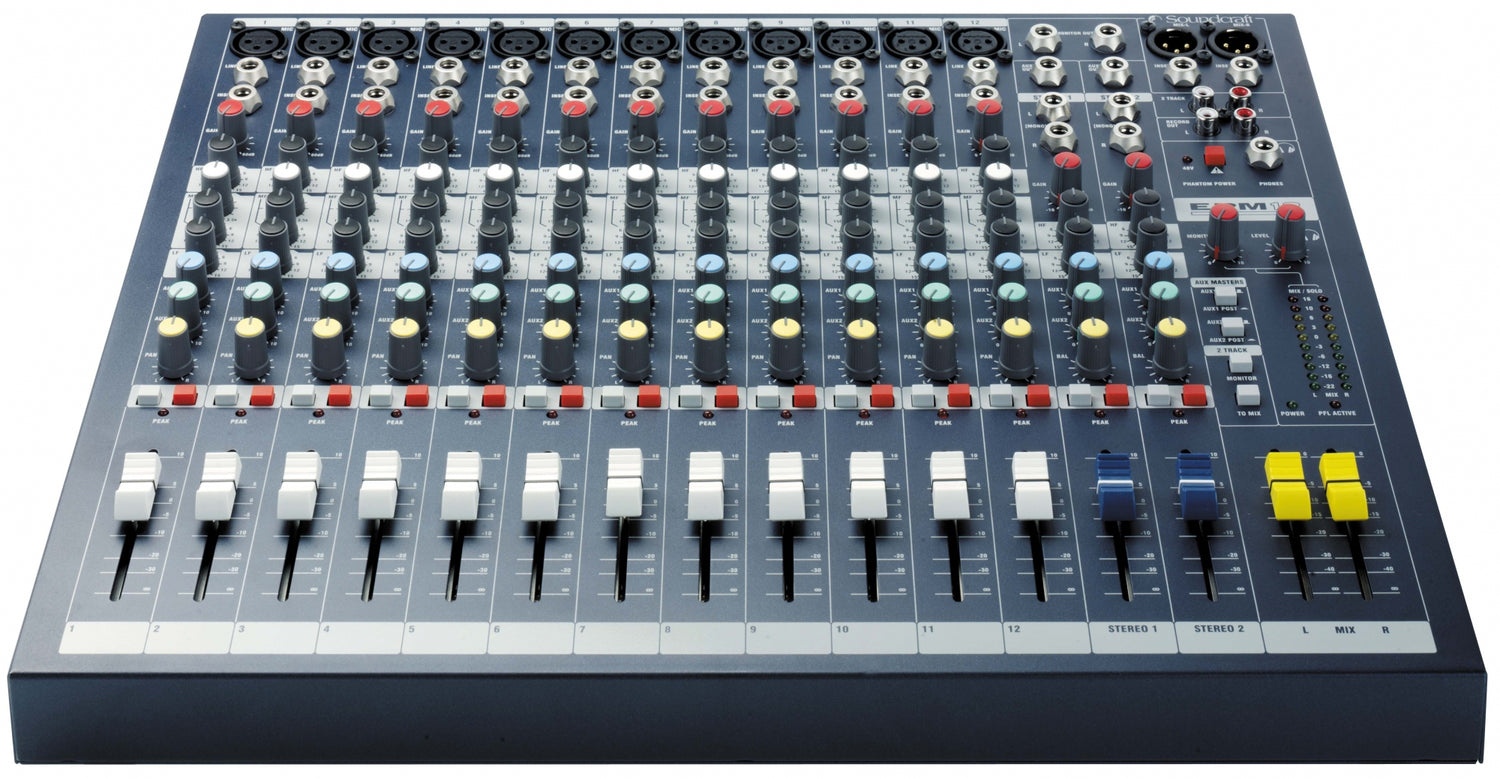

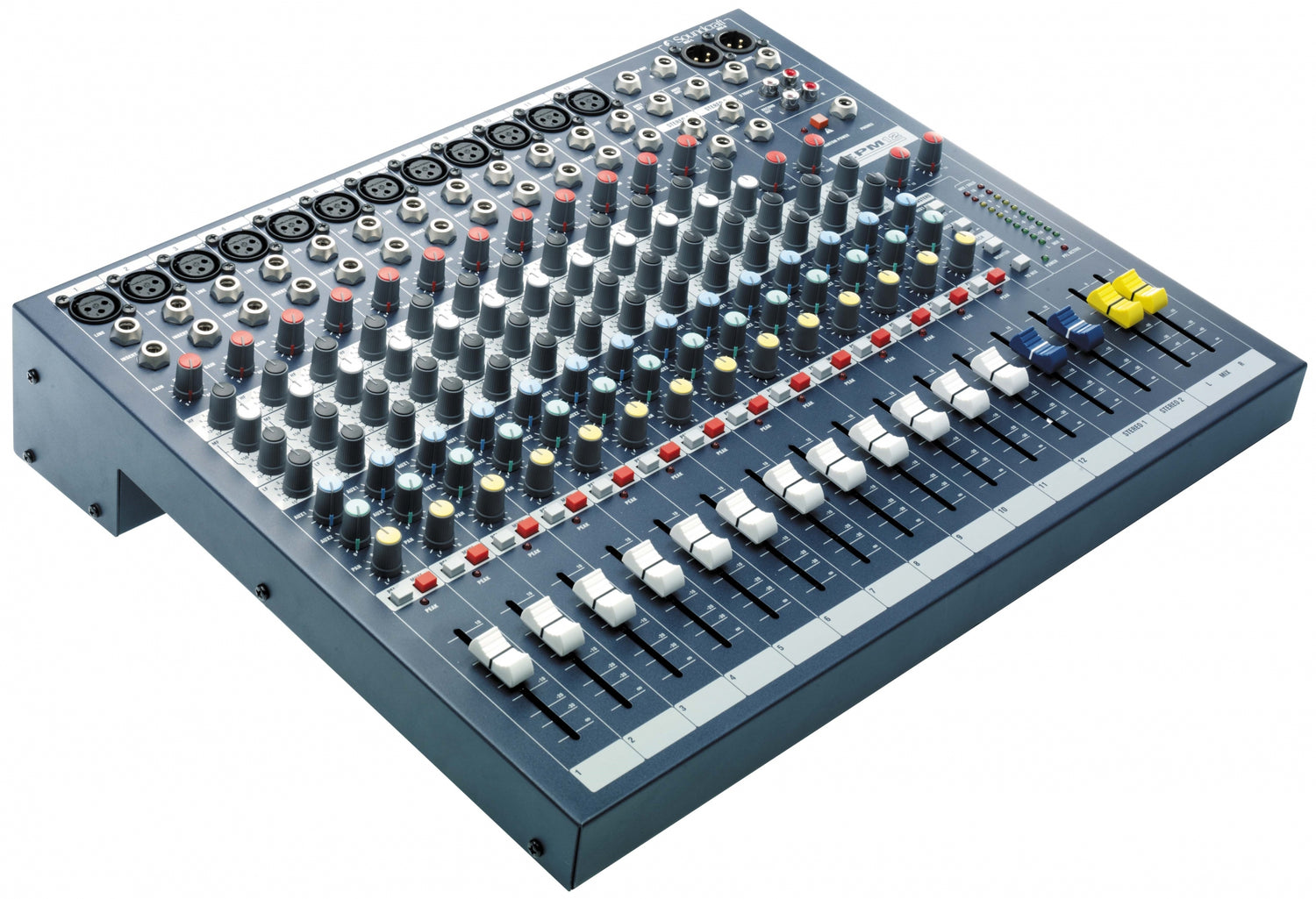

Soundcraft EPM12 Mixer

EPM serien er en prisbillig mixer-serie, med komponenter som man normalt kun finder i dyrere mixere fra Soundcraft.

Blandt andet kan nævnes GB30 mikrofon-forforstærkere, som findes i dyrere mixere som GB4, GB8 og LX7ii. Alle kanaler på Soundcraft EPM12 er udstyret med egne peak-lamper, som, i kombination med peak metrene i master sektionen, gør, at man har fuld kontrol over signalniveauer over hele mixeren.

Peak metrene er af "multipoint" typen, (kan checke signalet flere steder), og de lyser gradvist mere og mere op imod evt. peak / overload -tilstand.

Soundcraft EPM12 har 12 mikrofon-indgange (monokanaler) men er endvidere forsynet med yderligere 2 stereokanaler, to aux sends, 3-bånds EQ med mid sweep på mono kanalerne, og 2-bånds EQ på stereokanalerne.

Soundcraft EPM12

Low-cost high-performance mixers

Soundcraft have unveiled another addition to the rapidly growing new Soundcraft family, the multi-format low-cost EPM mixers.

The emphasis with the Soundcraft EPM is very firmly on quality build and audio performance, with an easy to understand control surface uncluttered by unnecessary facilities, and Soundcraft have brought new technologies and ideas to this very cost-effective range. Surface mount technology is used throughout, using close-tolerance components for high accuracy and repeatable settings for EQ and gain controls. The highly-transparent GB30 Mic amp (designed by Graham Blyth for the company?s 30th anniversary, and also used on the larger LX7ii and GB Series consoles) features high-resolution adjustment over a wide gain range of 55dB, and provides a stunning +22dB headroom through the console. True professional 48-volt phantom power caters for condenser microphones of all types.

A unique feature of the signal monitoring is the PEAK led. This uses multipoint signal take-offs to watch for overload in several parts of the channel strip, and the led lights more brightly as the signal approaches the peak point. For smooth and accurate channel control, the EPM has 60mm high quality faders as used on other Soundcraft desks. The monitor output and headphone output work in parallel so that performers can still listen on phones while an engineer is listening on studio monitors.

Other Features:

• Frame sizes 6+2, 8+2 and 12+2
• 2 configurable auxiliary buses
• XLR-type and ¼ metal jack connector sockets
• RCA phono stereo playback inputs and record outputs
• 3-band EQ with a swept mid on mono inputs
• 2-band EQ on stereo inputs
• TRS insert sockets and inserts on all mono inputs and mix output
• Ten-segment LED output metering
• Intuitive and comprehensive solo system
• Headphone output
• Easily rack mountable

  The Soundcraft EPM will find itself in many applications including live music, recording, houses of worship and multi-speaker installations.
