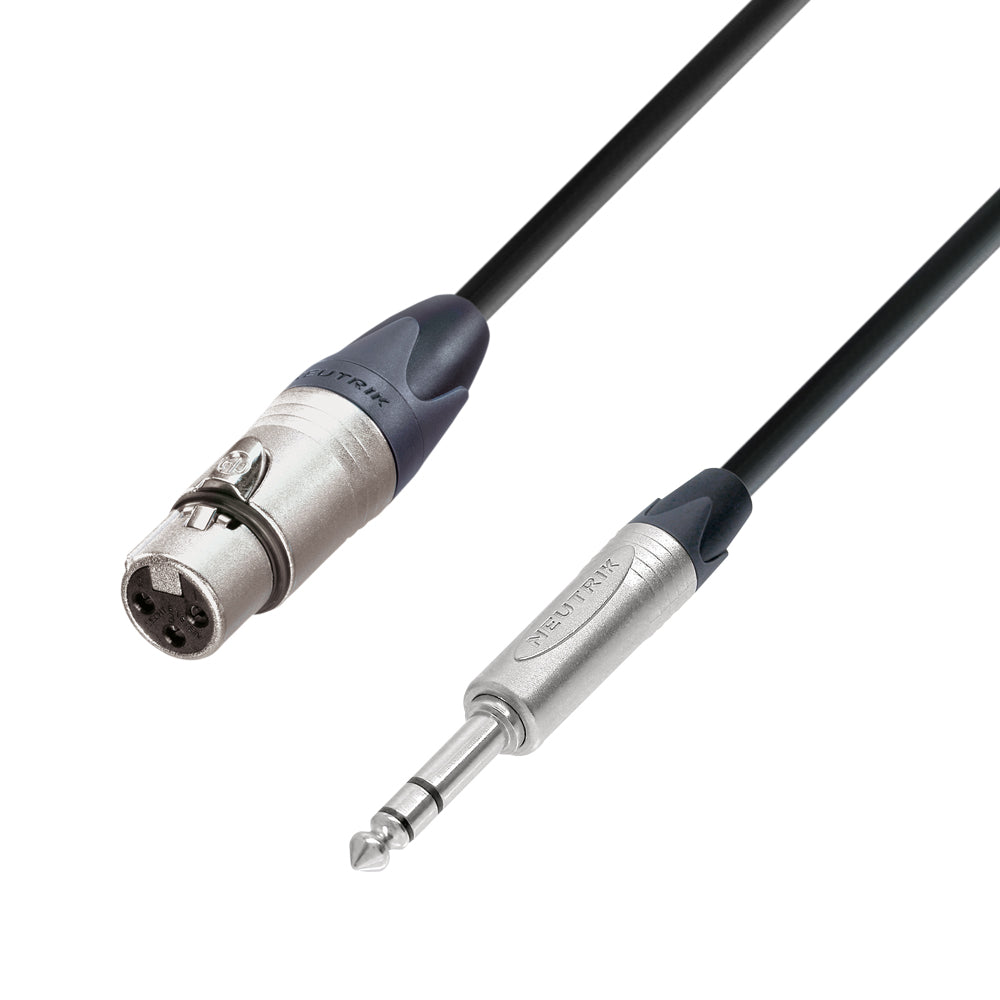

Neutrik XLR Hun til Balanceret Jack Adapterkabel

Professionelt signal mikrofon kabel med Neutrik NC3FXX XLR Hun stik til Neutrik NP3X 6,3 mm Jack stereo.

• Balanced cable, equipped, like all cables in the K5MFP series, with female XLR plugs and 6.3 mm TRS stereo plugs - making it the ideal choice for transmitting microphone signals to the board.
• Of course, these cables, too, are made using NEUTRIK © plugs and high-quality, highly flexible cable.

Specifications:

• Type: Microphone Cable
• Color: black
• Overall diameter: 6.4 mm +/- 0.1 mm
• Conductor area: 0,22 mm²
• AWG (American Wire Gauge): 24
• Conductor material: copper wire screen
• Composition of conductor: 28 x 0,10 mm
• Screen material: bare copper, OFC
• Screen: spiral wound
• Conductor resistance: 87 Ohm / km
• Capacity: < 68 pF/m
• Overall jacket material: PVC

Plugs:

• Model name NC3FXX
• Manufacturer: Neutrik
• Product type: XLR Plug
• Type: straight
• Number of poles: 3
• Gender: female
• Cable diameter: 3.5 - 8 mm
• Colour marking: -
• Contact surface: Silver
• Connection type: Solder contact
• Colour: Silver
• Housing: Cast zinc
• Clamping sleeve: POM
• Dimensions (L x Ø ): 71.5 x 19.2 mm

Model name NP3X

• Manufacturer: Neutrik
• Product type: 6.3 mm Jack
• Type: straight
• Number of poles: 3
• Gender: male
• Cable diameter: 4 - 7 mm
• Colour marking: -
• Contact surface: Nickel
• Connection type: Solder contact
• Colour: Silver
• Housing: Cast zinc
• Clamping sleeve: Polyoxymethylene
• Dimensions (L x Ø ): 6 93 x 14.5 mm
