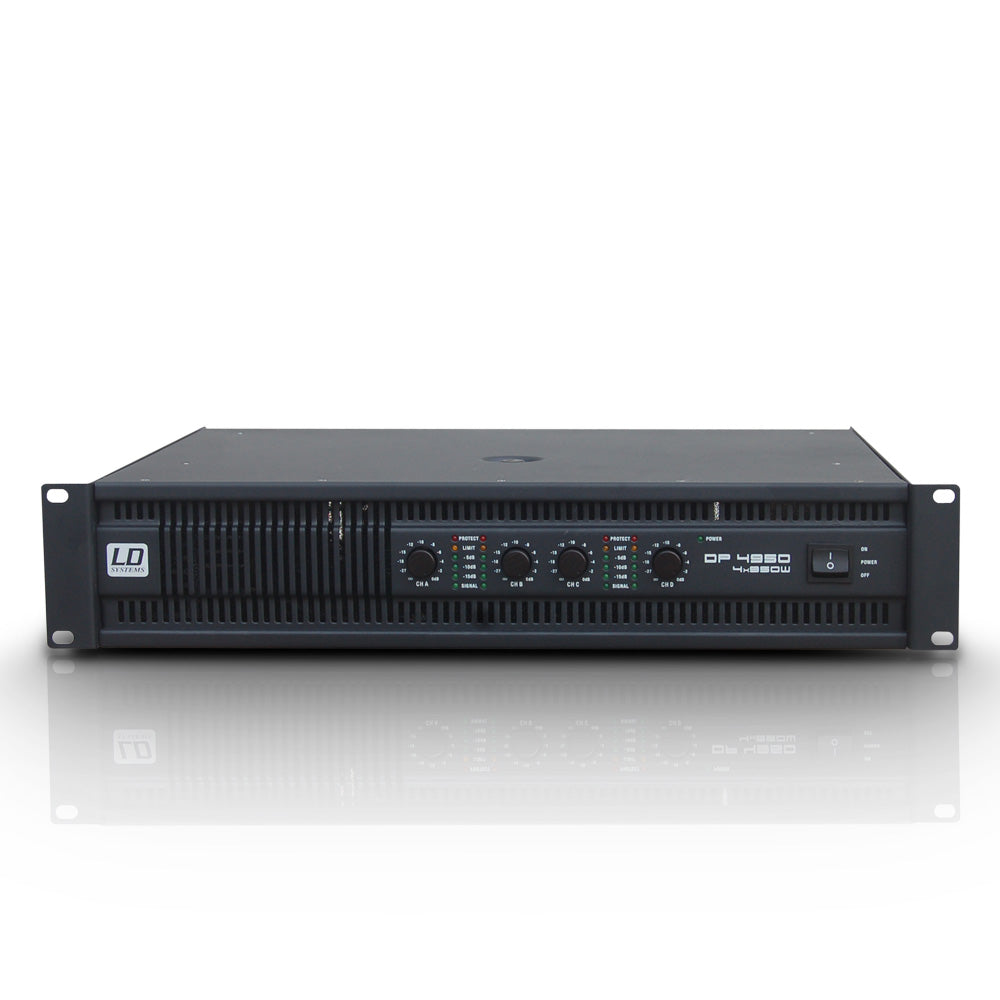

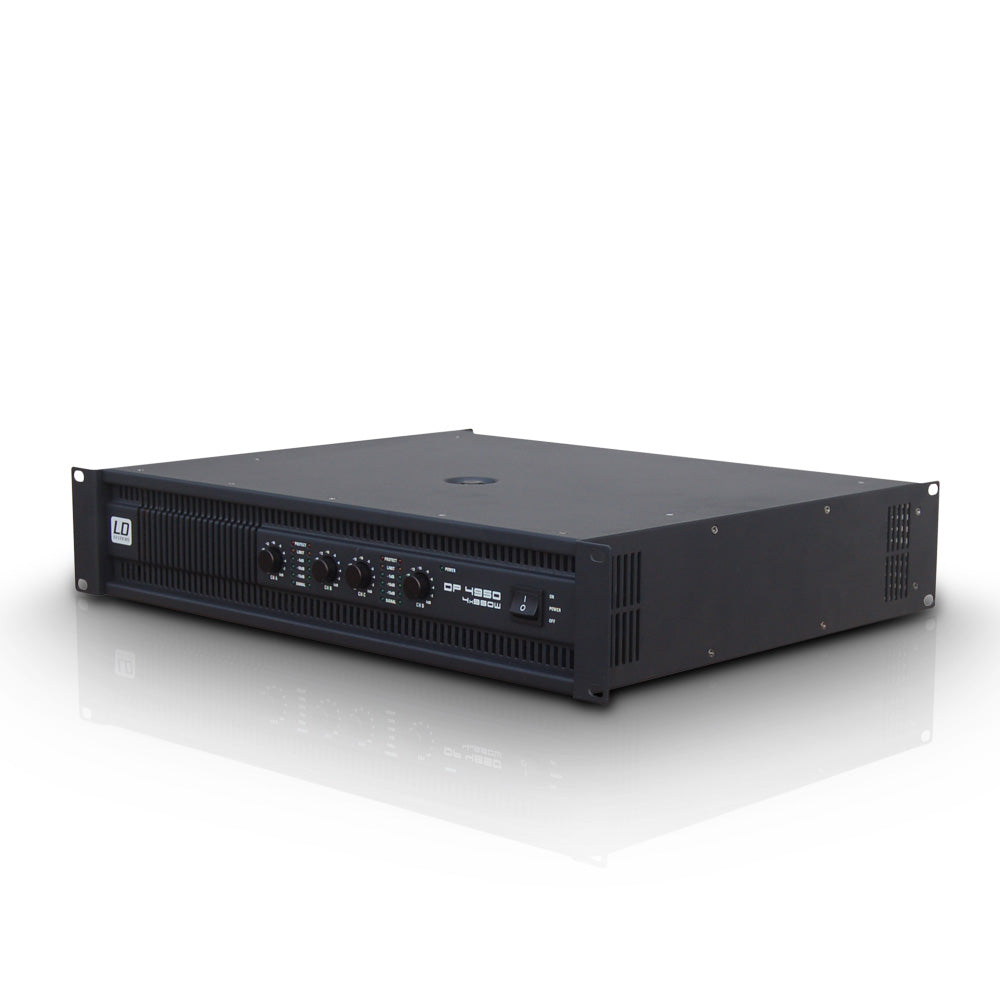

LD Systems DEEP2 4950 Forstærker (4x490W, 8 Ohm)
Beskrivelse
Beskrivelse
LD Systems DP4950 er en Klasse H forstærker på 2 x 490 Watt RMS i 8 Ohm, og med mulighed for 2 Ohm funktion samt brokobling. En rigtig god forstærker til prisen.
DP 4950 fra LD Systems har iøvrigt Clip Limiter for beskyttelse mod overbelastning, alle de tilslutningsmuligheder du har behov for, robust stål kabinet, minimal dybde på kun 35cm samt en meget klar lyd.
LD Systems DEEP2 4950 Forstærker 4x490W 8 Ohm
PA POWER AMPLIFIER 4 X 810 W 4 OHMS
The new DEEP2 amp series features four class-H power amplifiers with toroidal core offering amplifying levels from 2 x 400 W till 2 x 810 W at 4 Ohm. During the development of this series we attached a great importance to the reliability and the durability of the amps in continuous operation, this is why we used exclusively high end and selected components for the construction of these products.

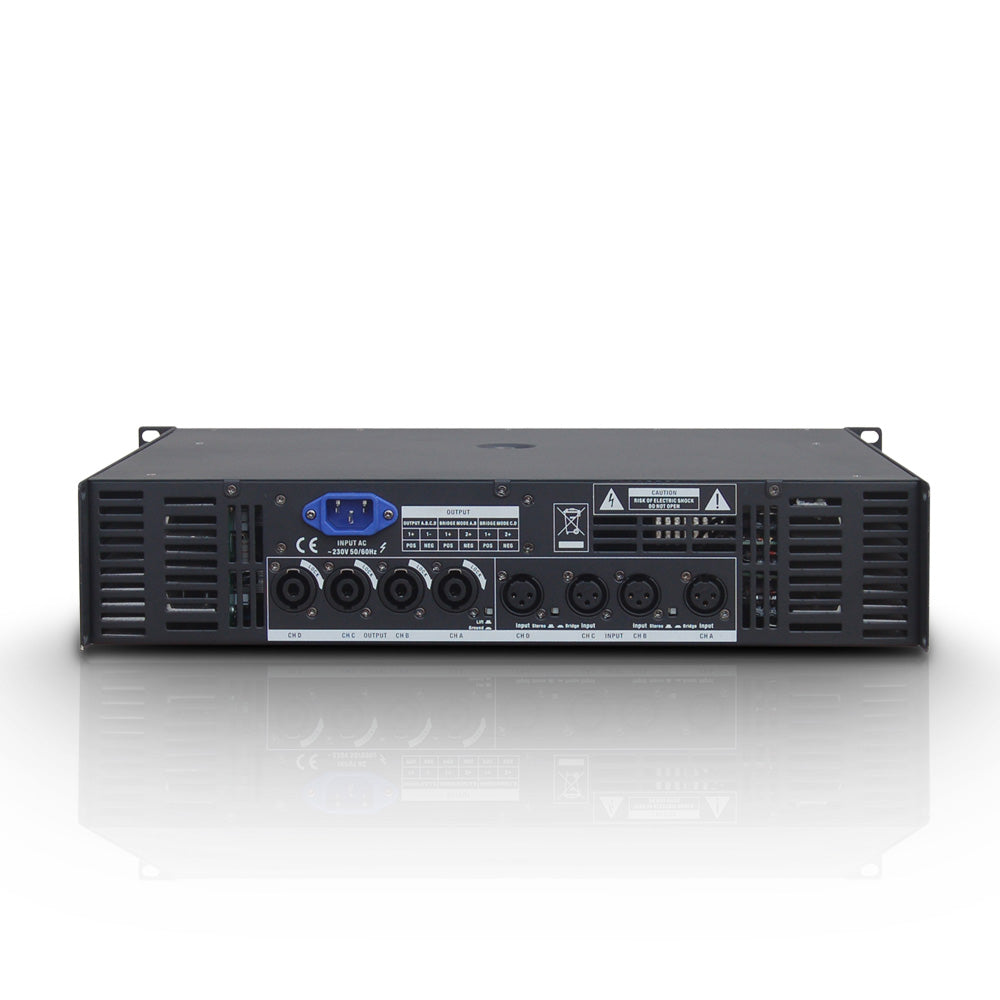

The DEEP2 series features a Clip Limiter as well as every common protection circuits. On the rear panel you will find all the common In- and Outputs.
The DEEP2 series will convince every user thanks to a dynamic and very clear sound which is perfectly adapted for Subbass applications as well as for multifunctional speakers. All models are lightweight and feature a robust steel plate housing and a very user friendly and compact design.
The DEEP2 series will prove to be a profitable and reliable choice for bands, renting companies and professional users thanks to its excellent price/performance ratio.
Yderligere Specifikationer
Yderligere Specifikationer
| Product number: | LDDP4950 |
|---|---|
| Product type: | power amplifier |
| Type: | 4-channel |
| Rated ouput power (1kHz @ 4 Ohms): | 4 x 810W |
| Rated ouput power (1kHz @ 8 Ohms): | 4 x 490W |
| Rated ouput power (1kHz @ 8 Ohms, bridged): | 2 x 1600W |
| Output circuitry: | Class H |
| Frequency response: | 20 - 20000Hz |
| THD: | < 0,1 % |
| Signal-to-noise ratio: | 105dB |
| Damping factor: | > 400 |
| Crosstalk: | >70dB |
| Gain: | 38dB |
| Input sensitivity: | 0,775 |
| Protection circuits: | short circuit, DC protection, thermal overload |
| Controls: | ground lift, 2 x volume, mains switch (on/off), bridge/stereo mode selector |
| Display: | Power, signal, limit, protect (protection circuit engaged) |
| Loudspeaker outputs: | 4 |
| Speaker output connections: | Speakon compatible |
| Cooling: | highly efficient, automatic |
| Operating voltage: | transformer, 230 V AC / 50-60 Hz |
| Weight: | 19,6kg |
