LD Systems MON 121 A G2 Aktiv Scenemonitor
Beskrivelse
Beskrivelse
- Aktiv scenemonitor med indbygget 250 Watt RMS Forstærker.
- Bygget i kraftig trækasse for optimal kvalitet.
- Udstyret med 12" bas/mellemtone enhed med 2" svingspole samt 1" driver med 1" svingspole.
- Leverer 124dB Max. SPL.
- Justerbar volume og afbryder direkte på monitoren.
LD Systems MON 121 A G2 Aktiv Scenemonitor
The LD Stinger MON121AG2 is a compact active stage monitor for all mobile applications.
The specially developed 12" coaxial speaker with an integral 1" HF driver and powerful ferrite magnets stands out because of a precisely symmetrical dispersion over 75° x 75° and attains a maximum sound-level pressure of 124dB with maximum resistance to feedback. It is driven by a Class AB power amplifier with a power output of 250W RMS. The frequency response curve is 80Hz - 20kHz.
Dependable operation of the LD MON121AG2 is ensured by a limiter that prevents overloading of the speaker and a protection circuit that guards against short-circuiting.

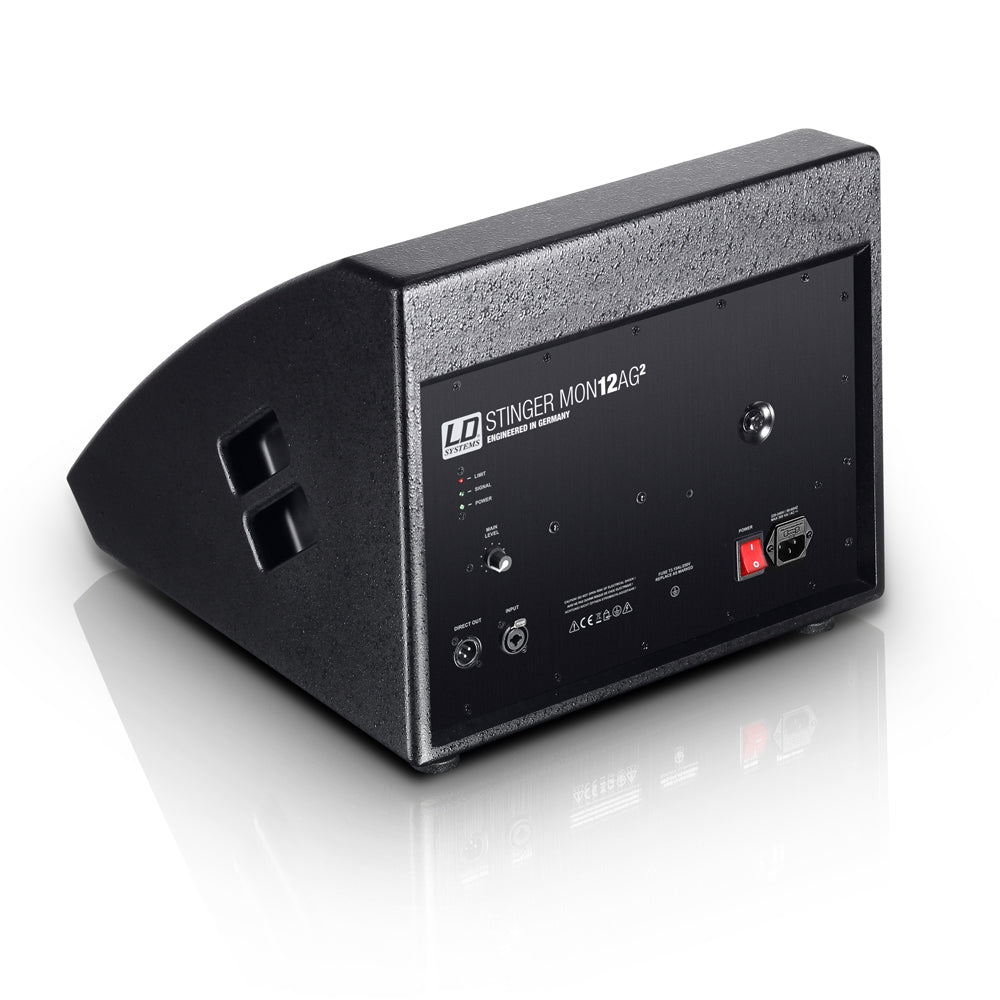

The input is a XLR-jack combo socket, an XLR output permits looping through of the signal. Other connector panel features include a volume control, IEC power socket, LED indicators of various colours for power, signal, and the limiter function.

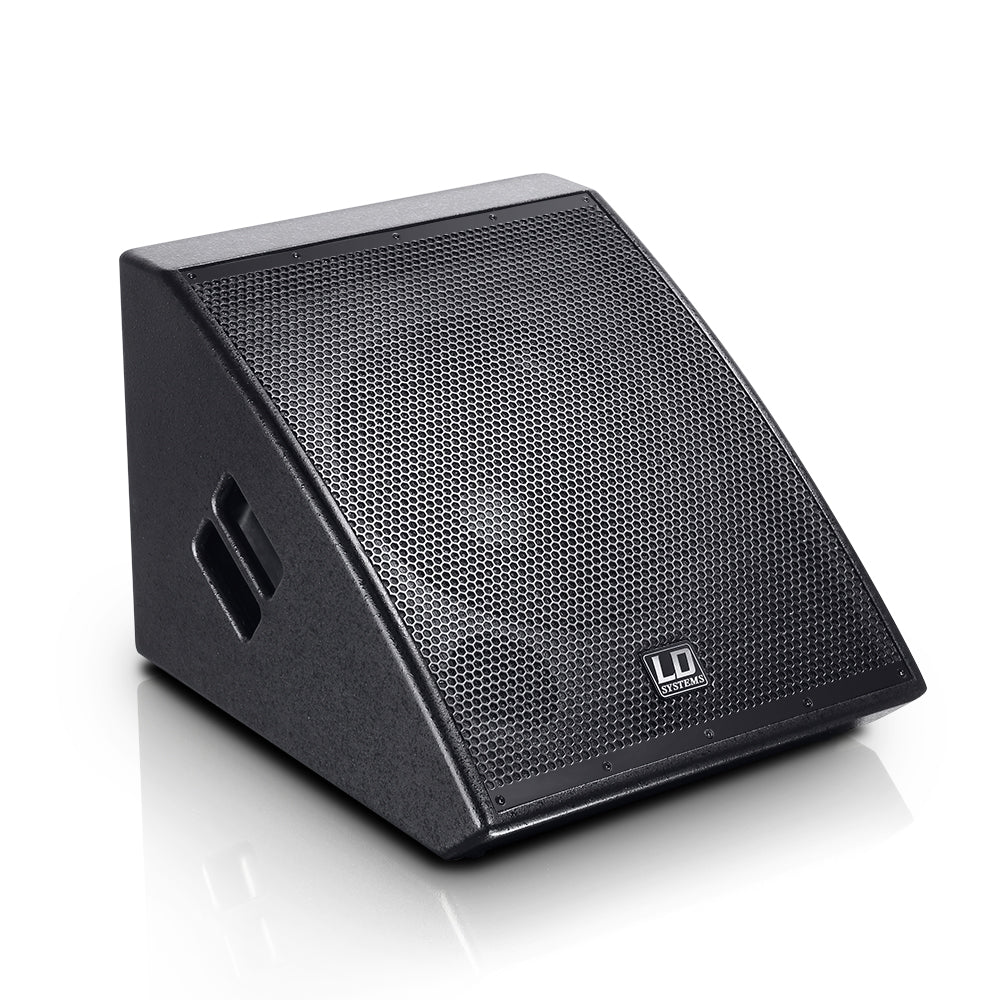

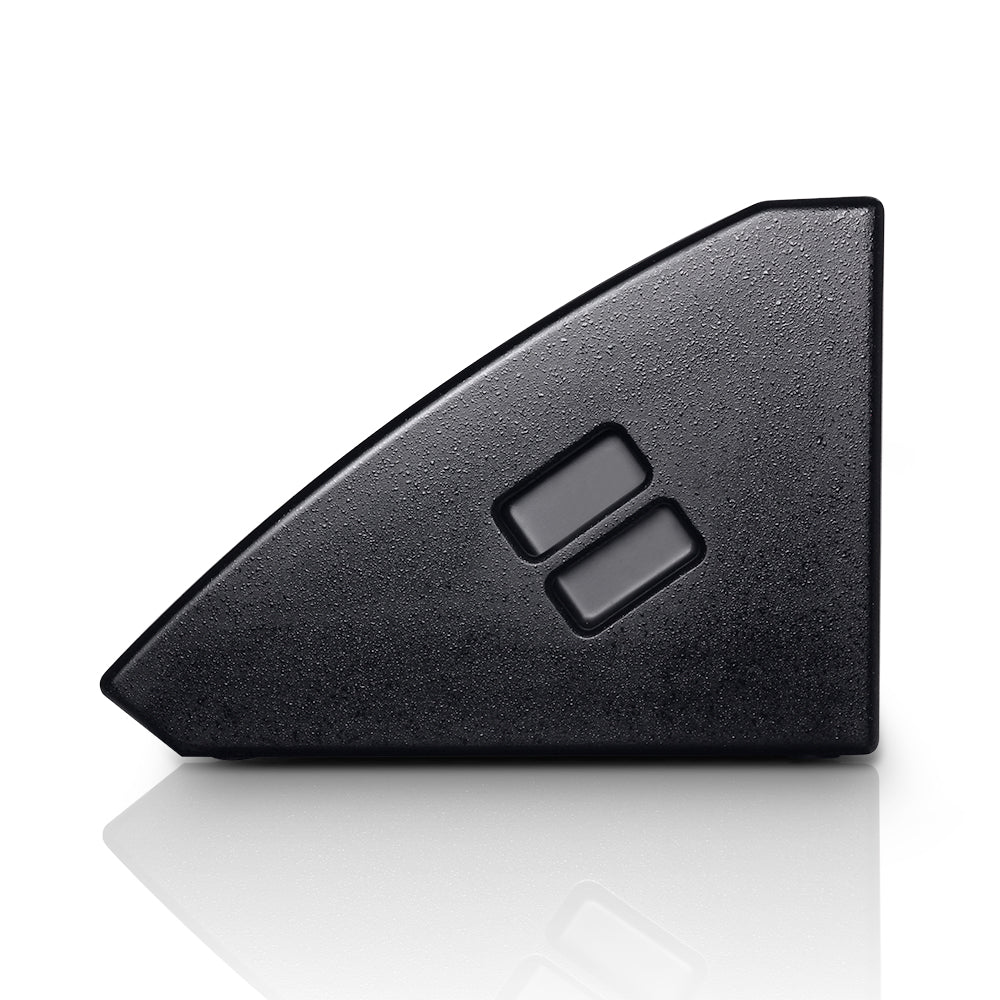

The elegant looking bass-reflex enclosure of the LD MON121AG2 is made of 15mm-thick multiplex finished with a durable coating. A sturdy metal grille guards against speaker damage, and ergonomically milled handles make transport easier. The monitor angle is 35°.
Also known as: MON121 A G2, MON-121 A G2, MON121A G2, MON-121A G2, MON121AG2, MON-121AG2
Yderligere Specifikationer
Yderligere Specifikationer
| Product number: | LDMON121AG2 |
|---|---|
| Product type: | stage monitors |
| Type: | active |
| Low/mid driver dimensions: | 12" |
| Low/mid driver dimensions (mm): | 304mm |
| Woofer type: | coaxial loudspeaker |
| Woofer magnet: | Ferrite |
| Woofer brand: | Custom-made |
| Woofer voice coil: | 2" |
| Woofer voice coil (mm): | 50,8mm |
| HF driver dimensions: | 1" |
| HF driver dimensions (mm): | 25,4mm |
| HF driver magnet: | Ferrite |
| HF driver brand: | Custom-made |
| HF driver voice coil: | 1" |
| HF driver voice coil (mm): | 25,4mm |
| Amplifier: | Class A/B |
| Dispersion (H x V): | 75 x 75 |
| RMS: | 250W |
| Peak power: | 500W |
| Frequency response: | 80 - 20000Hz |
| Crossover frequency: | 2200Hz |
| SPL (1W/1m): | 100dB |
| Max. SPL (continuous): | 116dB |
| Max. SPL (peak): | 124dB |
| Protection circuits: | limiter, short circuit |
| Controls: | On / Off, volume |
| Display: | limit, Power, signal |
| Line Inputs: | 1 |
| Line input connectors: | 6.3 mm Jack, XLR |
| Line Outputs: | 1 |
| Line output connectors: | XLR |
| Operating voltage: | transformer, 230 V AC / 50-60 Hz |
| Cabinet material: | 15 mm Plywood |
| Cabinet construction: | vented |
| Monitor angle: | 35 |
| Width: | 440mm |
| Depth: | 360mm |
| Height: | 514mm |
| Weight: | 17,8kg |
| Features: | ergonomically shaped insert handles |
