LD Systems ZONE 423 Mixer
Beskrivelse
Beskrivelse
- Installationsmixer hvor lydkilder kan afspilles i 2 zoner.
- Master Udgang (stereo), Zone Udgang (stereo)
- 6 line og 2 mikrofon indgange kan vælges og mixes ind i hver zone.
- Professionelle tilslutninger for større opsætninger.
- USB ind og ud for digital afspilning og optagning.
LD Systems ZONE 423
LD Systems zone 423 2-Zone-Mixer

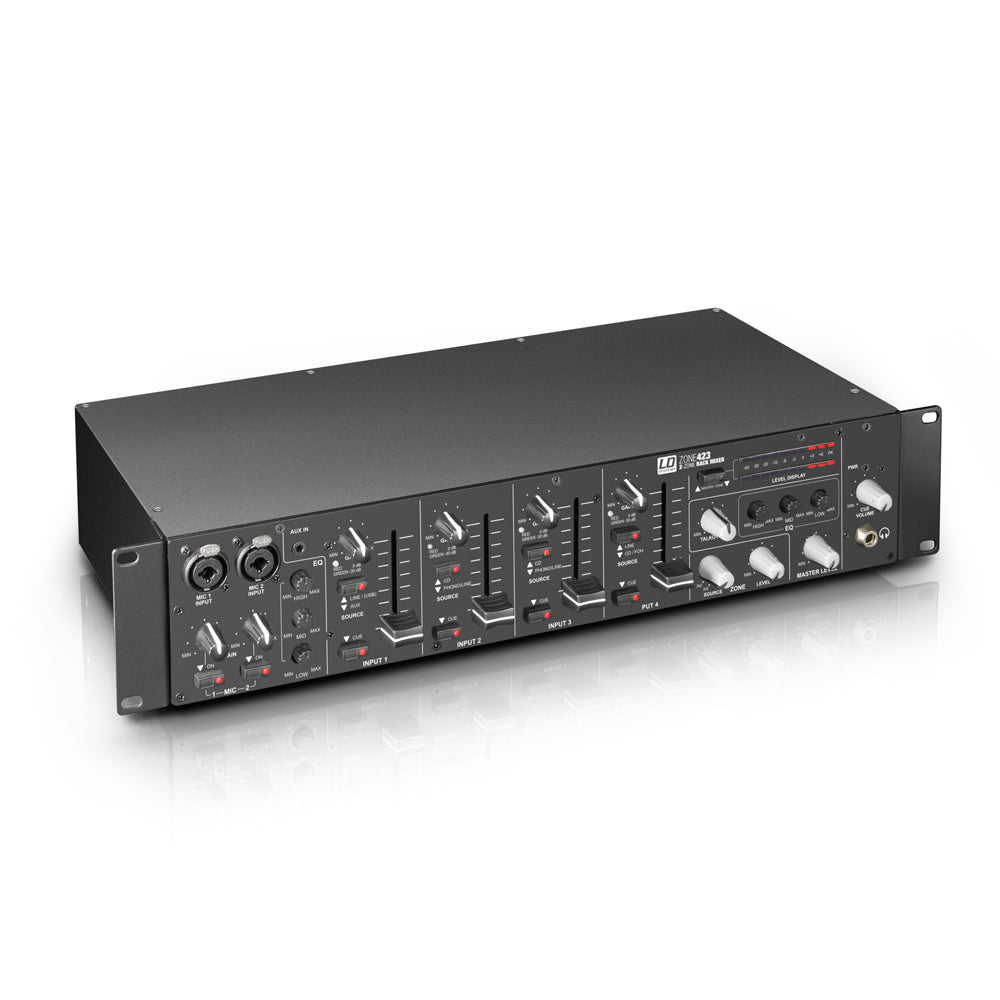

The ZONE 423 is a full featured zone mixer with 4 line and 2 microphone channels, that can be assigned to a master and a zone output, as well as inputs for an external emergency announcement system and remote-controlled switching mute. Through versatile connectivity, the compact 2U rack device is the perfect control centre for PA systems in food outlets, clubs, hotels, fitness centres, and is also excellent for presentations and DJs.

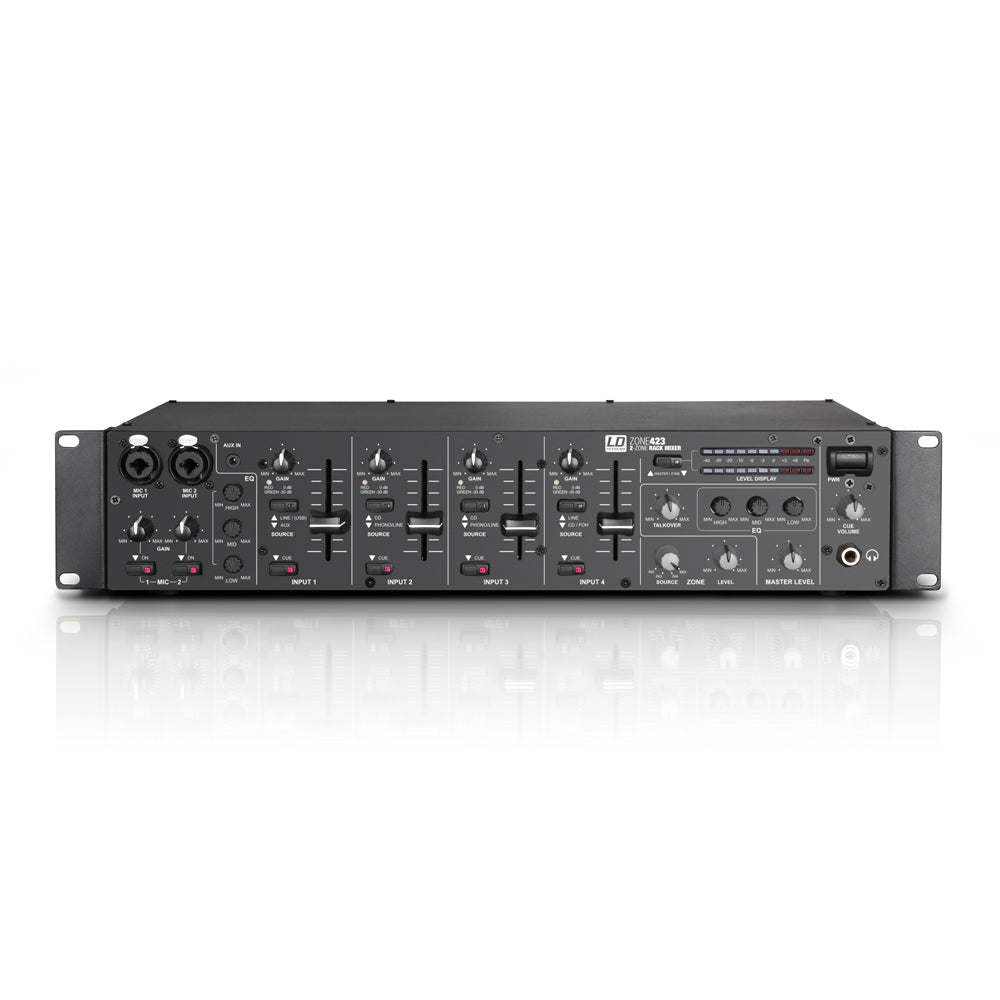

In addition to the two balanced microphone inputs with variable Gain and Talkover level,12V-phantom power, and a shared 3-Band-EQ, the ZONE 423 offers Line, Phono-, and Aux-stereo connections in RCA format, a FOH-input with balanced stereo jack plugs as well as a USB and 3.5mm mini jack. The USB-port is used as a stereo input and output and allows the mixer to be used as an external audio interface. The four input channels have individual gain controls with signal and peak value display, 45 mm faders for adjusting the volume and cue buttons.

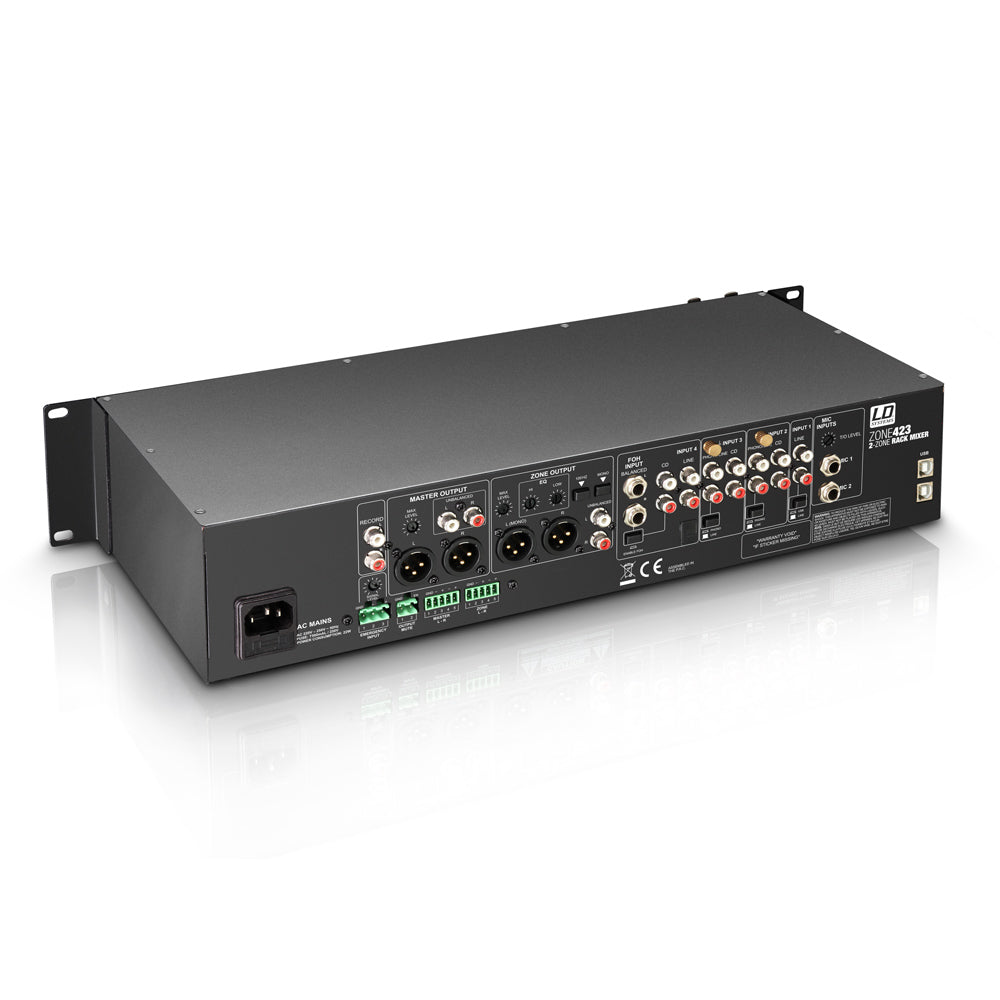

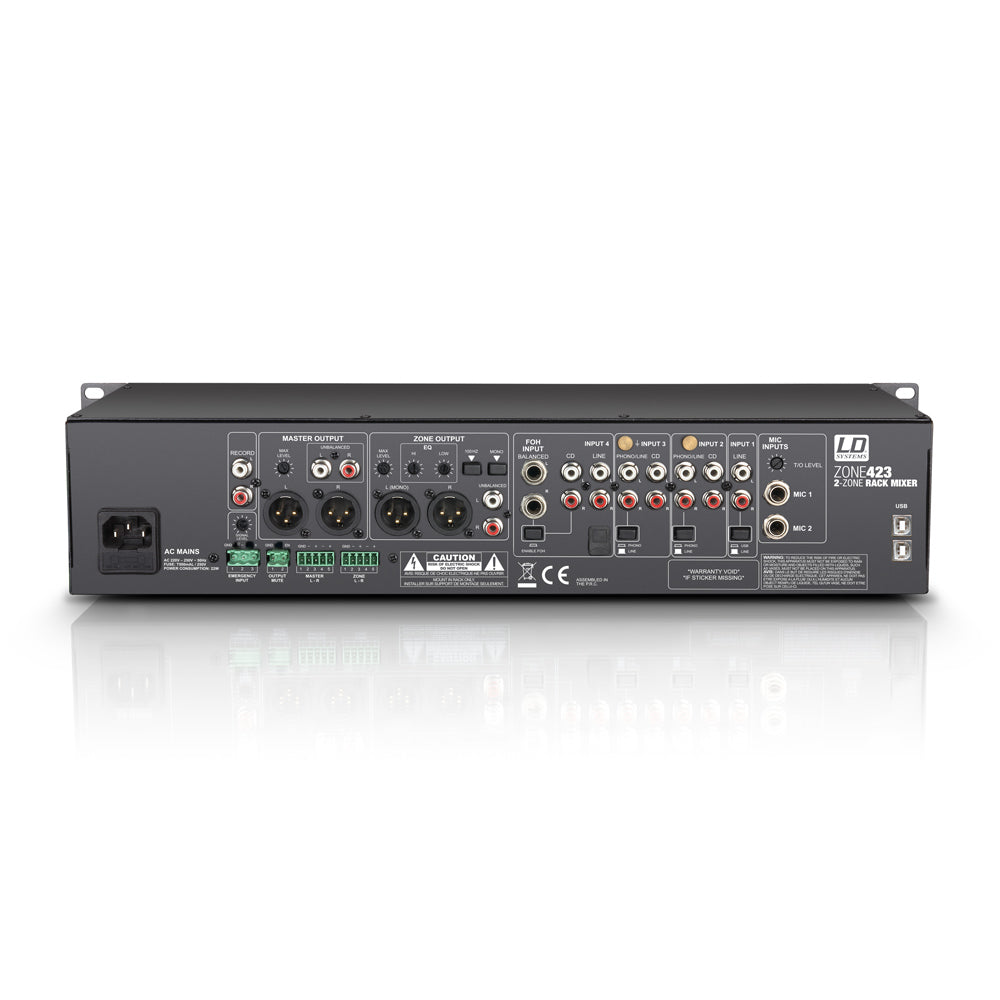

The master and zone sections each have their own EQ, balanced XLR and unbalanced RCA outputs: the master output via terminal block connectors and the zone output using a mono sum switch, and 100 Hz high-pass filter. The stereo level indication can be set to master or zone, and the maximum output level can be preset for both on the back of the mixer. In addition to an adjustable headphone connection for pre-listening, the ZONE 423 also has a recording output.
Also known as: ZONE423, ZONE-423
Yderligere Specifikationer
Yderligere Specifikationer
| Product number: | LDZONE423 |
|---|---|
| Product type: | Zone Mixer |
| Number of Zones: | 2 (Master, Zone) |
| Type: | stereo |
| Installation Height: | 2U |
| Total Input Channels: | 6 (2x Mic, 1x Line/Aux, 2x Line/Phono, 1x Line/FOH) |
| Frequency response: | 20 - 40000Hz |
| : | 2 (with phantom power 12 V), 1 x EQ Low, 1 x Talkover Level, Gain, 1 x EQ Hi, On / Off, 1 x Talkover |
| Microphone Channel Connections: | 6.3 mm stereo jack (balanced), XLR |
| Microphone Channels Display Elements: | On-LED |
| Microphone Channels Input Impedance: | 4kOhm |
| Microphone Channels Input Sensitivity: | 8mV |
| Microphone Channels THD: | 0,07% |
| Line Channels: | 4 (Input 1: USB/Line, Input 2 + 3: Line/Phono/CD, Input 4: Line/FOH) |
| Line input connectors: | input 4: 4 x RCA + 2 x 6.3 mm jack, Input 1: 2 x RCA + 3.5 mm stereo jack + USB, input 2 + 3: 4 x RCA |
| Line Channel Controls: | Cue, level, Enable FOH, Gain, Source |
| Line Channel Display Elements: | Cue-LED, Signal/0 dB-LED |
| Line Channel Input Impedance: | (Phono) 60kOhm, 6kOhm |
| Line Channels Input Sensitivity: | 1V, (Phono) 10mV |
| Line Channels THD: | (Phono) 0,05%, 0,03% |
| input sensitivity AUX/Line: | 3V |
| Line outputs: | 3 (Master - Stereo, Zone - Stereo/Mono, Rec - Stereo) |
| Output Connectors Master: | RCA (x2), terminal block, 2 x XLR (balanced) |
| Master Controls: | EQ Low, EQ Mid, EQ Hi, level, Max. Level |
| Master Display Elements: | 2 x 10 segment level meter (switchable Master/Zone) |
| Master Output Levels: | (unbalanced) 18dBu, (balanced) 21dBu |
| Zone Output Connections: | terminal block, RCA (x2), 2 x XLR (balanced) |
| Zone Controls: | EQ Hi, EQ Low, level, Max. Level, mono, 100 Hz High Pass, Source Input 2 - 4/Mix |
| Zone Display Elements: | 2 x 10 segment level meter (switchable Master/Zone) |
| Zone Output Levels: | (unbalanced) 18dBu, (balanced) 21dBu |
| Output Connections Rec: | 2 x RCA |
| Headphones ouput: | 1 |
| Headphone Out Port: | 6.3 mm TRS |
| Headphone Output Controls: | Cue Volume |
| Headphone Output Voltage: | (@ 32 Ohm) 1.2V |
| Additional Inputs: | 2 (Emergency Input, Output Mute) |
| Connections Additional Inputs: | terminal block |
| Additional Input Controls: | Level Emergency Input |
| Input Sensitivity Emergency Input: | 5V |
| Additional Controls: | power switch |
| Additional Display Elements: | power LED |
| Operating voltage: | 220 - 250 V AC, 50 Hz |
| Mains connector: | IEC power connector |
| Power consumption: | 22W |
| Fuse: | T 500 mAL / 250 V |
| Width: | 483mm |
| Height: | 89mm |
| Depth: | 210mm |
| Weight: | 3,3kg |
| Accessories (included): | terminal blocks, Power cord |
