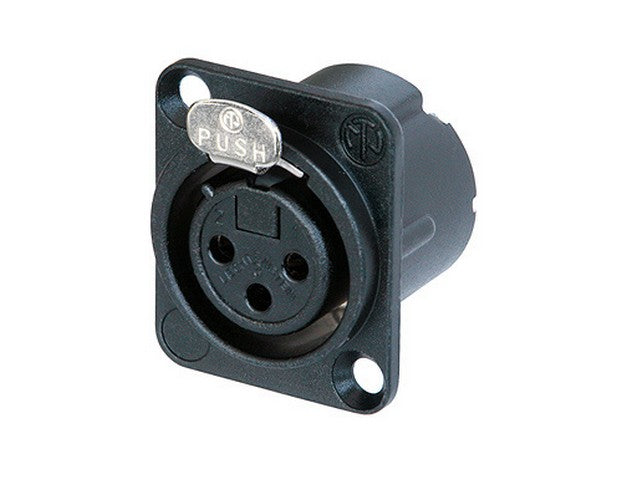

Neutrik NC3FD-LX-B XLR D-type Chassis Stik
49 kr.
Stk. pris
/
Ikke tilgængelig
Beskrivelse
Beskrivelse
- Neutrik chassis-stik til indbygning.
- XLR-hun stik.
- Høj kvalitet og holdbarhed.
Yderligere Specifikationer
Yderligere Specifikationer
Teknisk specifikationer |
| Capacitance between contacts≤ 4 pF |
| Contact resistance≤ 5 mΩ (inner) |
| Dielectric strength1,5 kVdc |
| Insulation resistance> 2 GΩ (initial) |
| Rated current per contact16 A |
| Rated voltage50 V |
| Insertion force≤ 20 N |
| Withdrawal force≤ 20 N |
| Lifetime> 1000 mating cyclesWiresizemax. 2.5 mm²Wiresizemax. 14 AWG |
| Wiring Solder contacts |
| Locking device Latch lock |
| Mounting direction front & rear Chassis shape D |
| Contact plating2 µm Ag over 2 µm Ni |
| Contacts Bronze (CuSn6) |
| Insert Polyamide (PA 6.6 30 % GR) |
| Locking element Steel Ck67 |
| Shell Zinc diecast (ZnAl4Cu1) |
| Shell plating Nickel |
| FlammabilityUL 94 HB |
| Standard complianceIEC 61076-2-103 |
| Protection classIP 40 |
| Solderability Complies with IEC 68-2-20 |
| Temperature range-30 °C to +80 °C |
Brand: Neutrik
SKU: NEU-NC3FDLX-B
