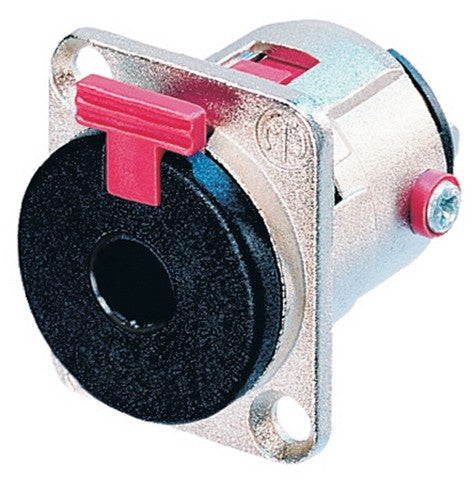

Neutrik NJ3FP6C Chassis Stik

• Neutrik chassis stik
• Balanceret jack
• Udført i metal

Specifications

Contact resistance< 6 mΩ (inner) (initial)
Dielectric strength1 kVdc
Insulation resistance≥ 1 GΩ @ 500 V dc
Rated current per contact10 A
Insertion force< 20 N
With drawal force< 20 N
Lifetime> 10000 mating cycles
Locking force> 80
Wire size1 mm²
Wire size18 AWG
Wiring Solder contacts
Locking device Latch lock
Mounting direction front Chassis shape D
Contact plating2 µm Ag
Contacts Brass (CuZn37) (Ground)
Insert Polyamide (PA 6.6 30 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Standard compliance EIA RS 453, IEC 60603-11
Solderability Complies with IEC 68-2-20
Temperature range-25 °C to +70 °C
