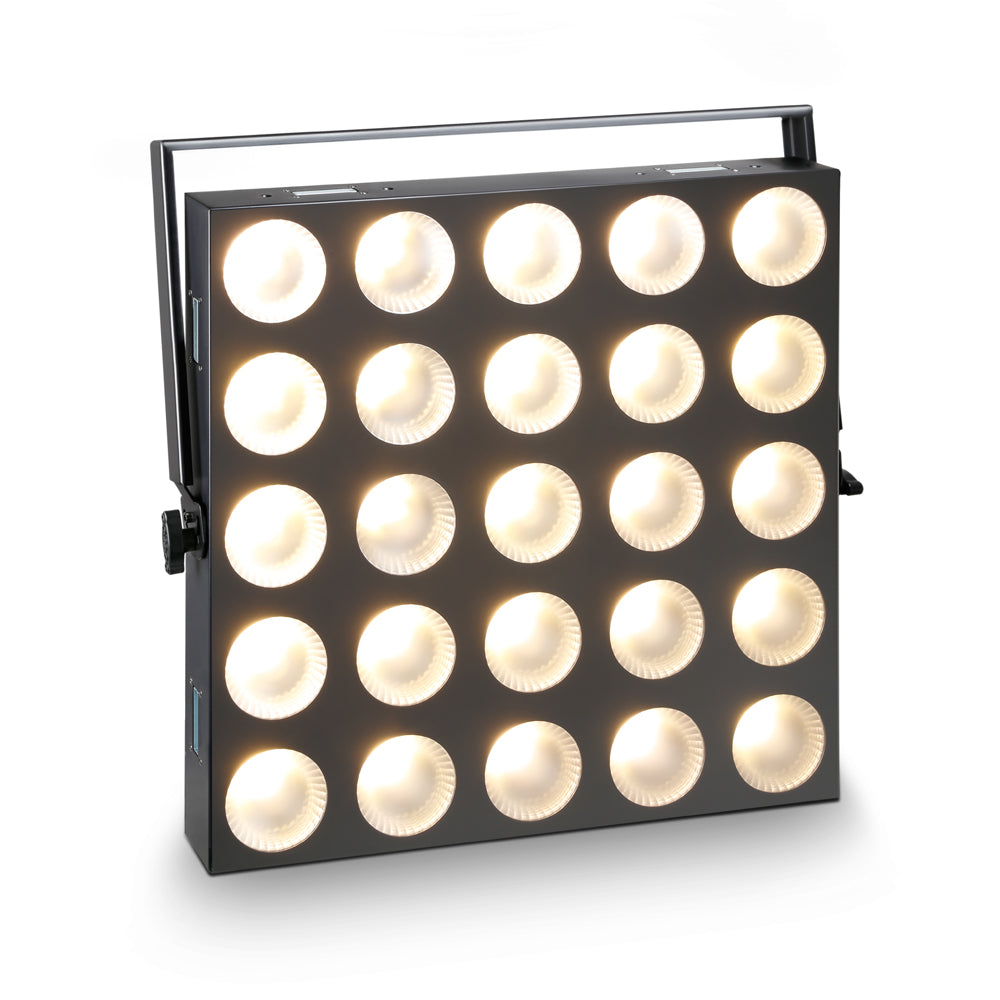

Cameo Matrix Panel LED Matrix Panel (5x5)

• 5 x 5 LED Matrix Panel med single pixel control
• 25 x 3 W warm white LEDs
• 4 DMX modes + soundaktiv
• Master, slave og standalone
• Blinder + Strobe effekt
• Kompakt og nem at installere

5 x 5 LED Matrix Panel

Med en 5 x 5 vifte af varme hvide 3 watt lysdioder og flimmerfri ydelse skaber Cameo Matrix Panel spændende blinder, chase og strobe effekter.

Med kraftfulde enkelt pixel kontrol er det perfekte valg til kortlægning af bogstaver, tal og komplette tekster.

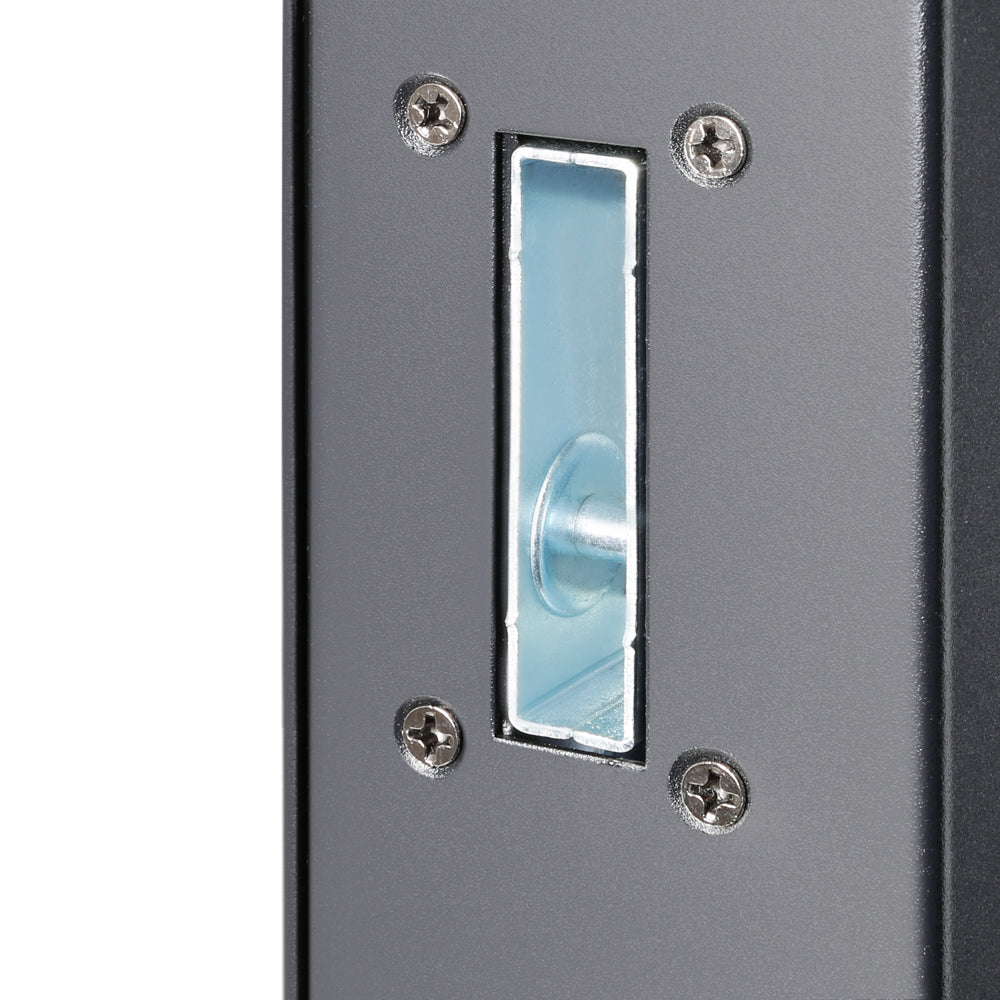

Forsænket låse på alle sider muliggør tilslutning af flere paneler.

Matrix Panel omfatter fire former for DMX styring, lyd aktivering og 4 valgbare dimming kurver. Master, slave og standalone.

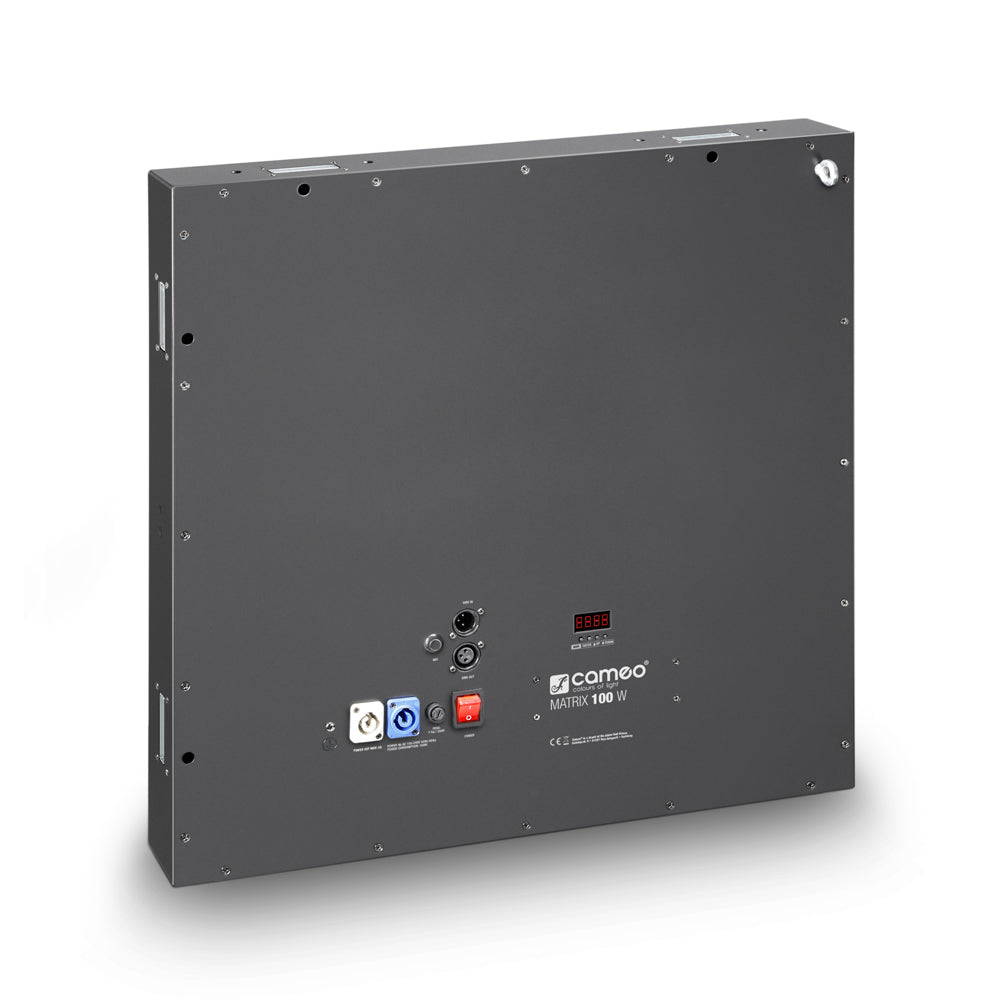

3-polet DMX input + output, powercon in + out strømstik, display menu og sikkerheds øje.

Matrix Panel leveres med et monterings beslag.

• 5 x 5 LED Matrix Panel with single pixel control
• 25 x 3 W warm white LEDs
• 4 DMX modes, sound activation
• Master, slave and standalone capability
• Blinder, chase and strobe effects
• Alphabetic character and numeral mapping
• 4 selectable dimming curves
• Noiseless and flicker-free operation
• Ultra flat enclosure

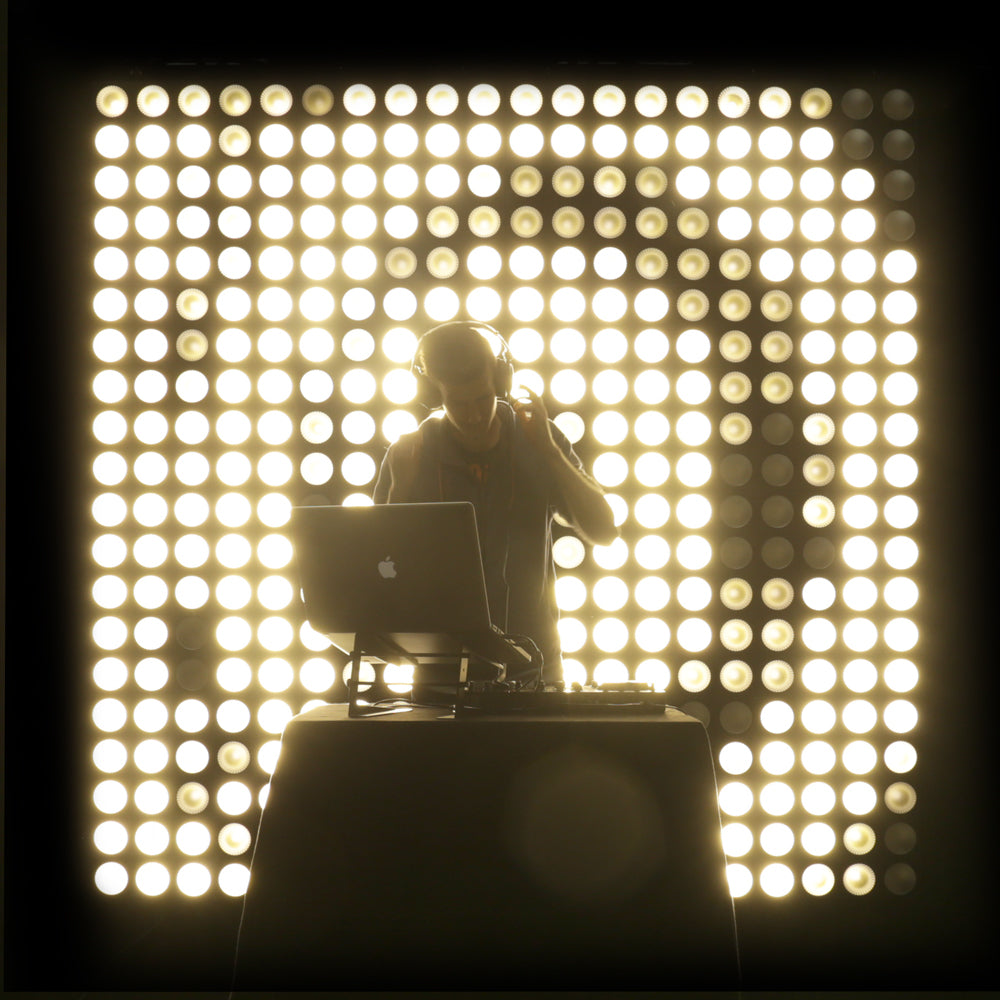

• Even more impressive in multiples

• Product Type: LED MATRIX PANEL
• Type: 5 X 5 Matrix
• Colour Spectrum: warm white
• Colour temperature: 3300 K
• Number of LEDs: 25
• LED Type: 3 W Single LED
• Refresh Rate: 3400 Hz
• Beam Angle: 40°
• DMX Input: 3-pin XLR male
• DMX Output: 3-pin XLR female
• DMX Mode: 2-channel, 5-channel, 10-channel, 28-channel
• DMX Functions: Master Dimmer, Dimmer Fine, Auto programs, Sound programs, Stroboscope
• Standalone Functions: Music Control, Master/Slave
• Control: DMX512
• Controls: Mode, Enter, Up, Down
• Display Elements: 4-digit LED display
• Power Connector: blue power input socket, white power output socket
• Operating Voltage: 100 V - 240 V AC, 50 - 60 Hz
• Power Consumption: 100 W
• Illuminance (1 m): 6100 lx
• Fuse: F5A / 250 V
• Operating Temperature: 10°C - 40°C
• Relative Humidity: <85% non-condensing
• Housing Material: metal
• Housing Colour: black
• Housing Cooling: convection
• Dimensions (W x H x D, excluding bracket): 580 x 580 x 67 mm
• Weight (excluding bracket): 8 kg

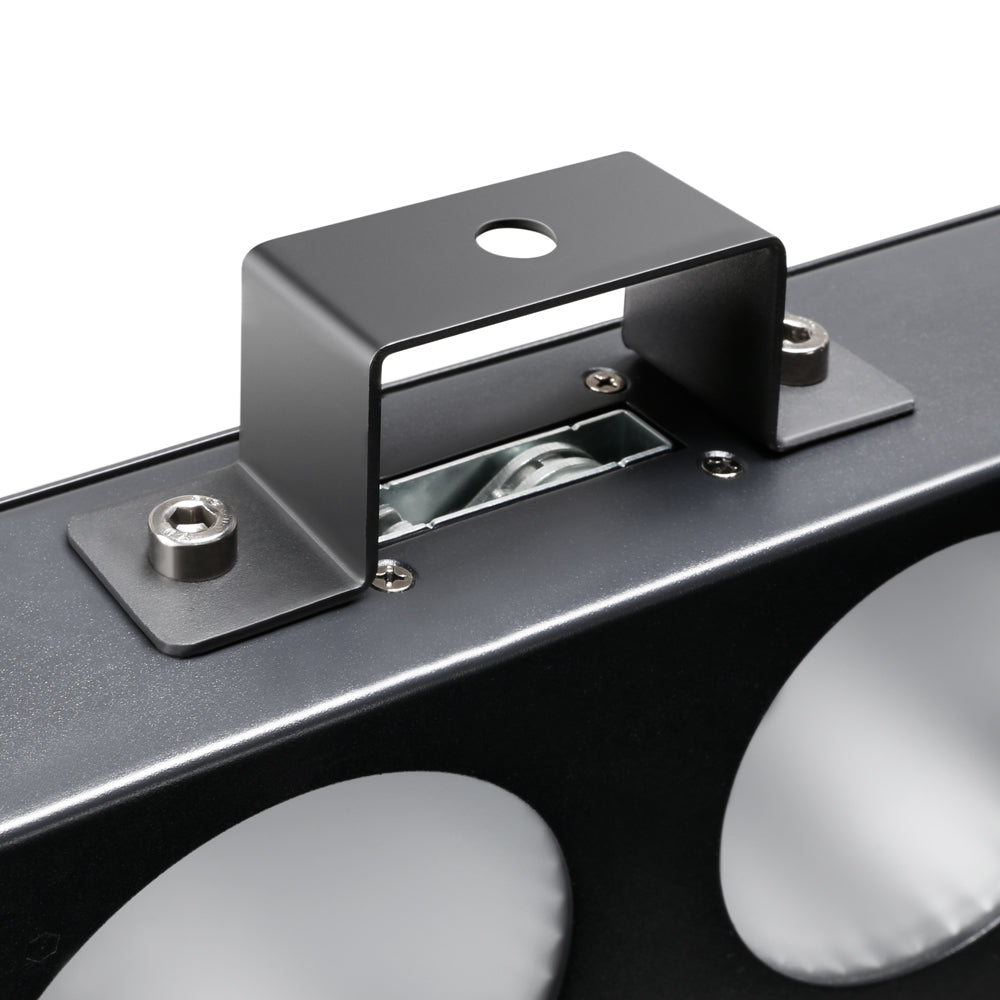

• Other Features: swivel bracket included, 2 omega brackets, safety eyeletintegrated connection system for the installation of an unlimited numberof units in the horizontal plane and vertical installation of up to 5 units.
