• 16-bit dæmpning af masterdæmper såvel som individuelle farver for glat kontrol af fades
• Indbyggede farve- og tilt-makroer for hurtige designmuligheder
• Kontinuerlig bevægelse af pan- og tilt-funktioner
• Individuel kontrol af alle fem hoveder for bevægelse og output
• Stille drift egnet til en bred vifte af installationsmiljøer
• DMX, sACN, Art-Net og Kling-Net kontrol for fuld fleksibilitet
• 6,2° strålevinkel for at skabe skarpe og definerede arealeffekter
• Brugervalgte PWM-frekvenser for at eliminere kamerarulle
• Batteribackup-display med automatisk rotation afhængig af apparatets orientering

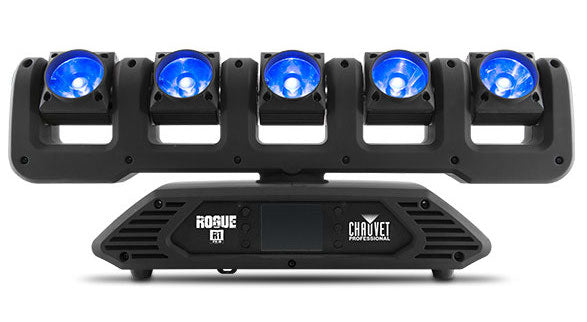

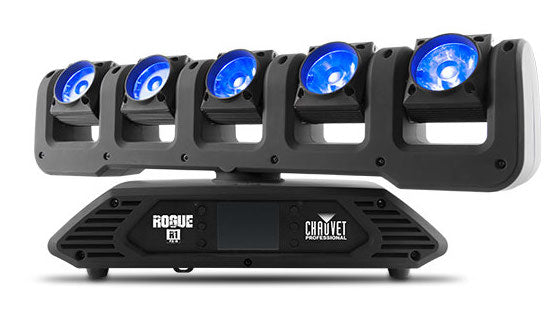

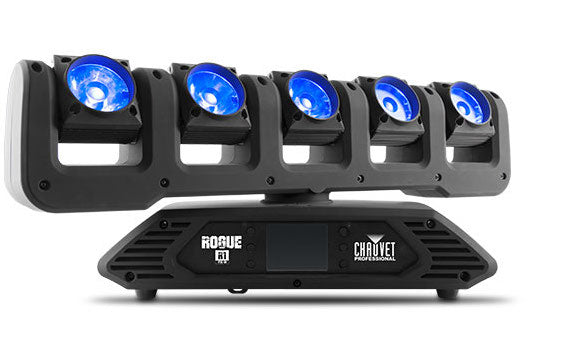

• Rogue R1 FX-B giver fem gange så meget liv.
• Den dirigerer en uendelig rotation af både pan og tilt for sine fem individuelt styrede hoveder, drevet af fem pixel-mappelige 15 W RGBW LED'er.
• Skarpe stråler, en sprudlende output og lynhurtige bevægelser skaber fantastiske luftbårne effekter.
• Kontrol opnås med DMX, Art-Net, sACN eller Kling-Net.

OPTICAL

• Light Source: 5 LEDs (quad-color RGBW) 15 W, (4 A), 50,000 hours life expectancy
• Installed Optics: 5°
• Beam Angle: 6.2°
• Field Angle: 10.1°
• Cutoff Angle: 12.7°
• Lumens - Source: 2,500
• Lumens - Output: 5,020
• Illuminance : 6,008 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Pan and Tilt: 540°/540°
• Pan and Tilt Ranges: Infinite, 540°, 360°, 180° pan/ Infinite, 540°, 270°, 180° tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: No
• Color Temperature Presets: No
• Move-in-Black: Yes
• Dim Curves: 4

CONSTRUCTION / PHYSICAL

• Dimensions: 25.19 x 7.05 x 9.72 in (640 x 179 x 247 mm)
• Weight: 24.2 lb (11 kg)
• Exterior Color: BLACK
• Housing Material: High-impact flame-retardant polymer

CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: Art-Net, Kling-Net, DMX, sACN
• DMX Channels Single Mode: 18, 25, 47 or 52
• DMX Channels Dual Mode – Function: 9, 17, 23
• DMX Channels Dual Mode – Pixel: 15 or 20
• Art-Net Channels Single Mode: 18, 25, 47 or 52
• Art-Net Channels Dual Mode – Function: 9, 17, 23
• Art-Net Channels Dual Mode – Pixel: 15 or 20

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 8 units @ 120 V; 15 units @ 208 V; 16 units @ 230 V
• Power and Current: 176 W, 1.48 A @ 120 V, 60 Hz
• Power and Current: 171 W, 0.796 A @ 208 V, 60 Hz
• Power and Current: 167 W, 0.757 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, UKCA
• IP Rating: IP20, dry location

WHAT'S INCLUDED

• Rogue RX1
• Edison (Local) plug to Neutrik powerCON
• Omega bracket with mounting hardware

DOWNLOADS

• Rogue R1 FX-B Quick Reference Guide
• Rogue R1 FX-B User Manual
• Rogue R1 FX-B CAD file
• Rogue R1 FX-B DMX Chart
• Rogue R1 FX-B ShowXpress
• Rogue R1 FX-B 3D .DWG file
