Boss Gigcaster 8 Streaming Mixer Startpakke

• Alt-i-én pakkeløsning til musikeren, underviseren, podcasteren, content creators
• Mulighed for at optage live stereo eller multitrack audio til microSD kort
• Rigtig nemt at anvende og sætte op!

Boss Gigcaster 8 Streaming Mixer Startpakke

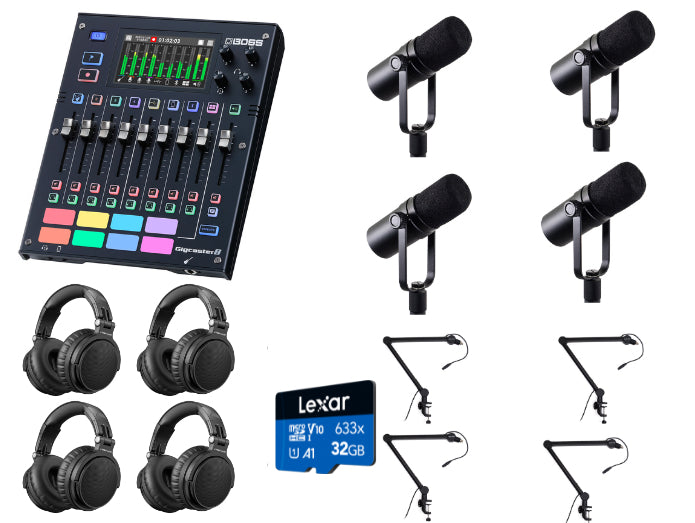

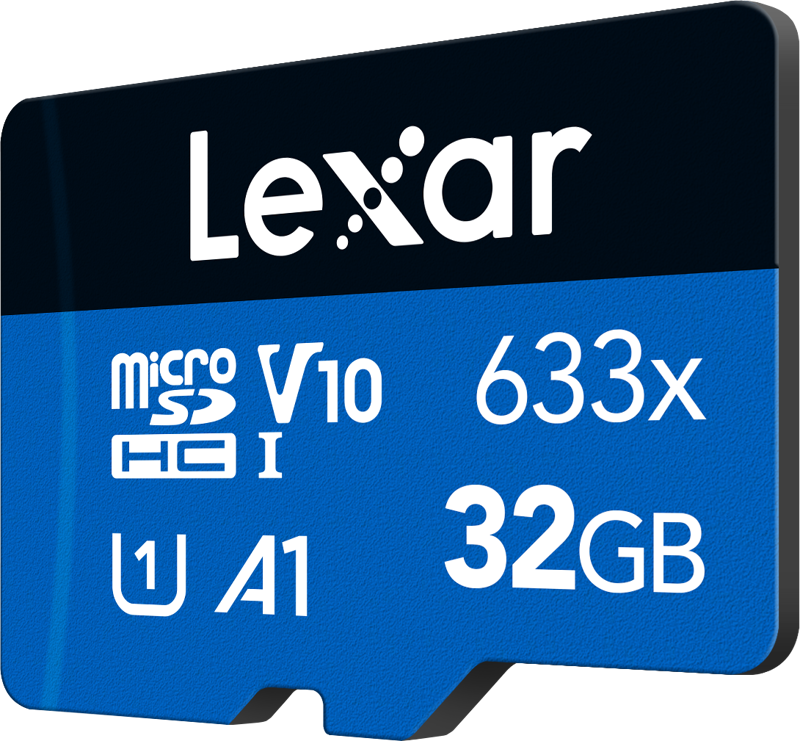

• Stor pakke med hele 4 mikrofoner, brugervenlig mixer, hørertelefoner, stativer og SD kort!

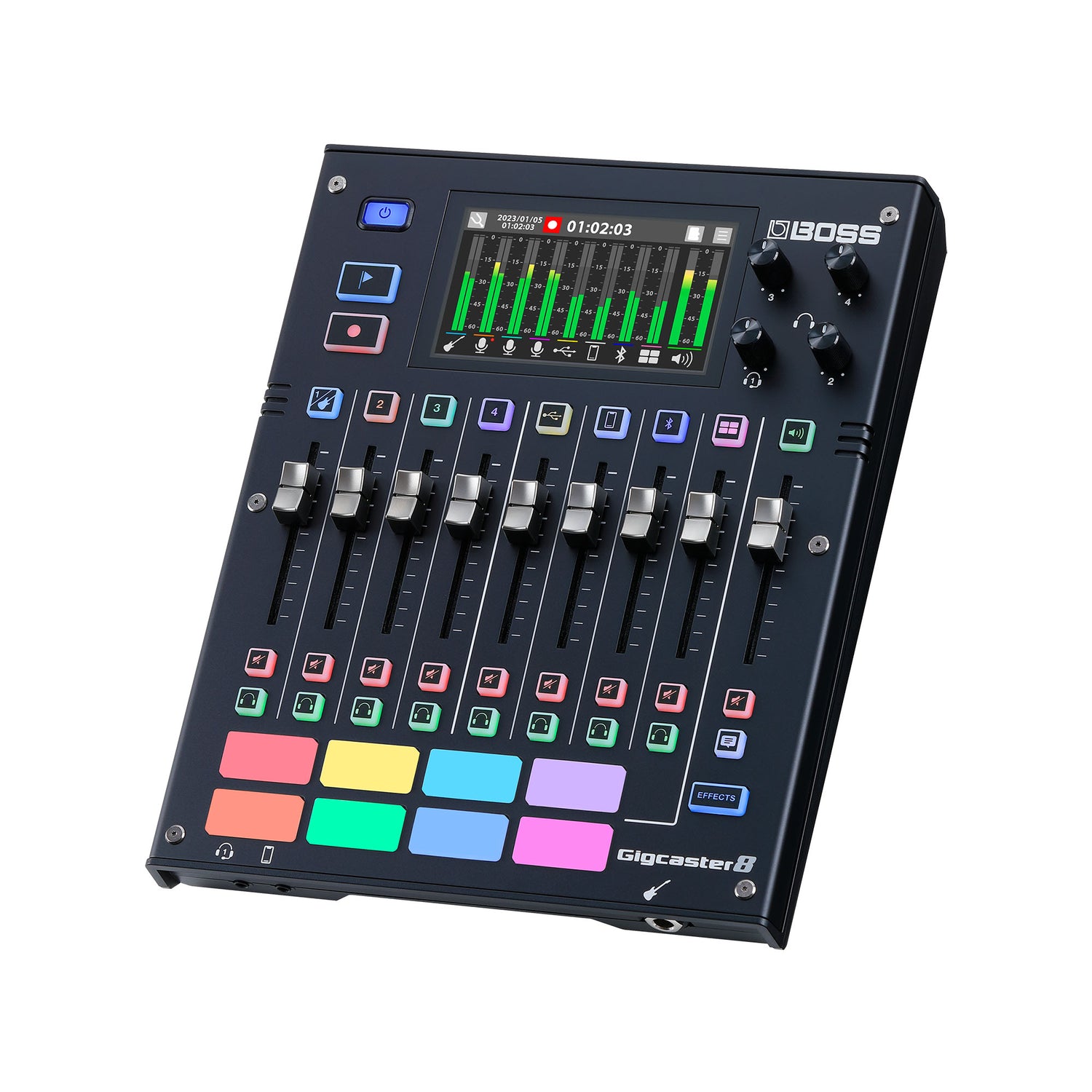

• Kompakt 8-kanals streaming mixer med guitar/bas input, fire XLR/TRS combo inputs, otte lyd/effekt pads, microSD optagelse m.m.
• Alt-i-én audio streaming hub til musikeren, underviseren, podcasteren, content creators.

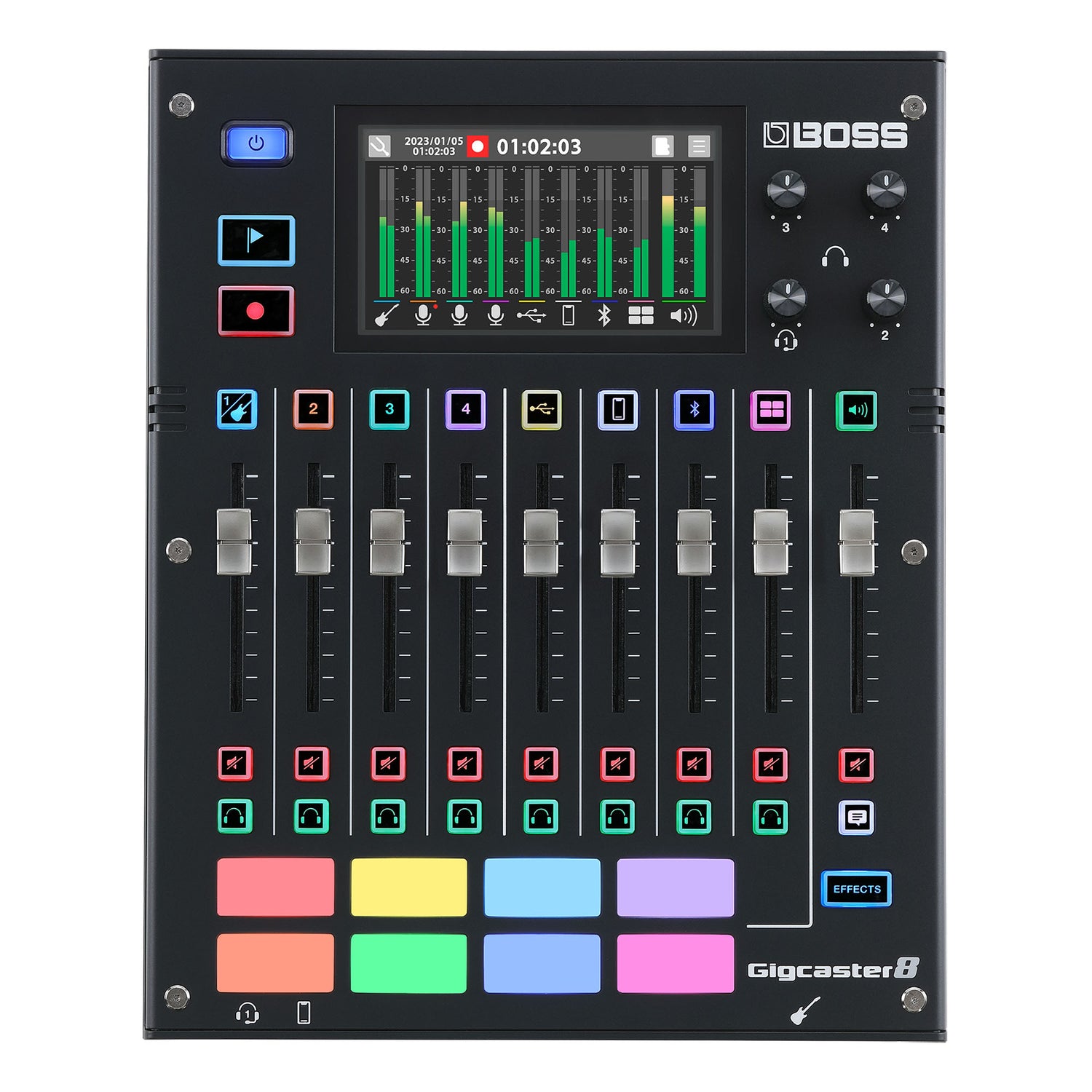

• Brugervenligt og intuitivt interface med quick-access live kontrollere via fadere, knapper, otte assignable pads og 4.3" farve display.
• Indbyggede GT forstærkere og Boss effekter af ypperste kvalitet taget fra Boss GT-1000 med masser af presets.
• 32-bit floating point processering og 48 kHz sampling rate.
• Mic inputs med phantom power og pre-amps med bred gain rækkevidde (+70 dB).
• Dedikerede vokal effekter og funktioner taget fra VE vocal processors.
• Stereo kanaler til fjern-gæster og mobile enheder via Bluetooth eller kablet forbindelse.

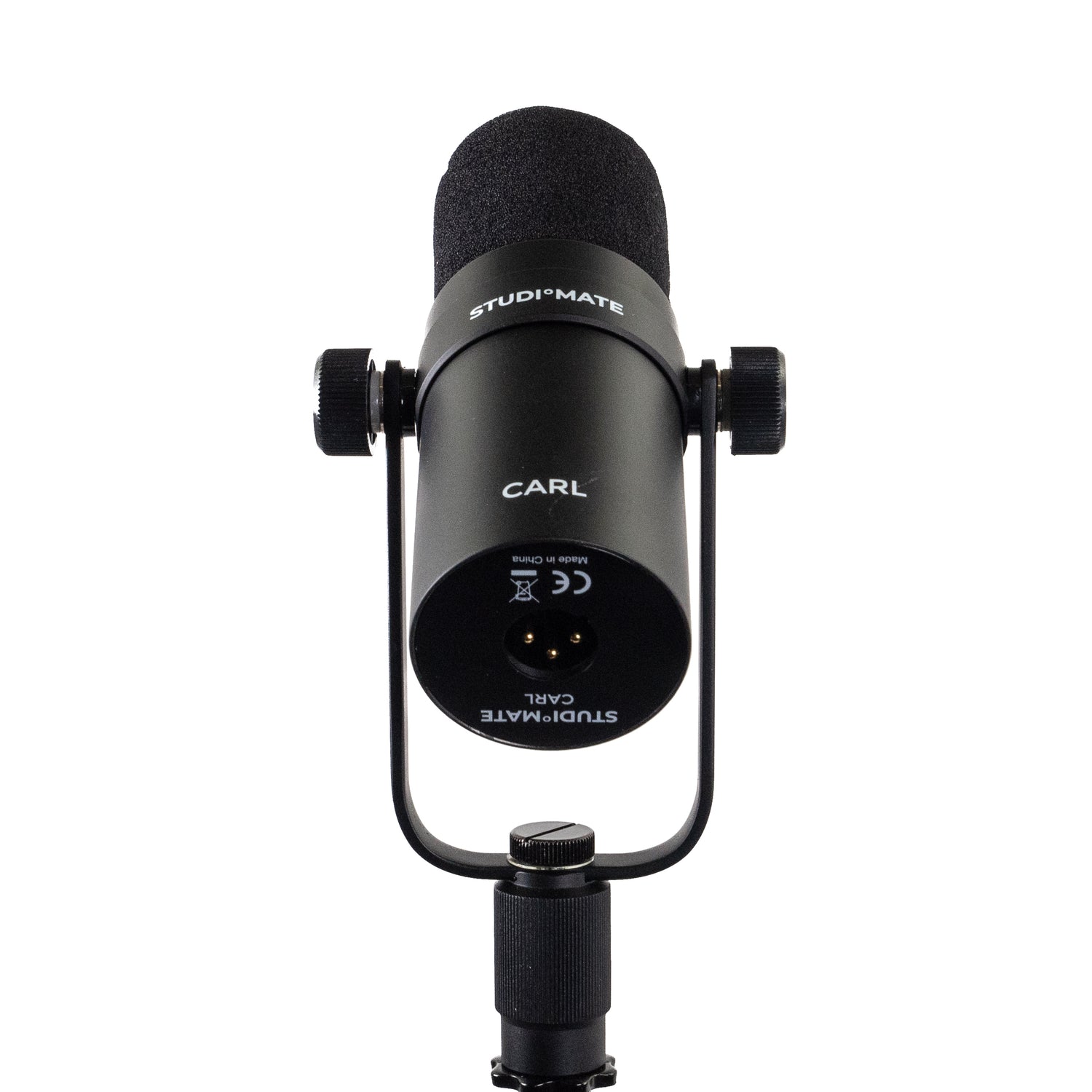

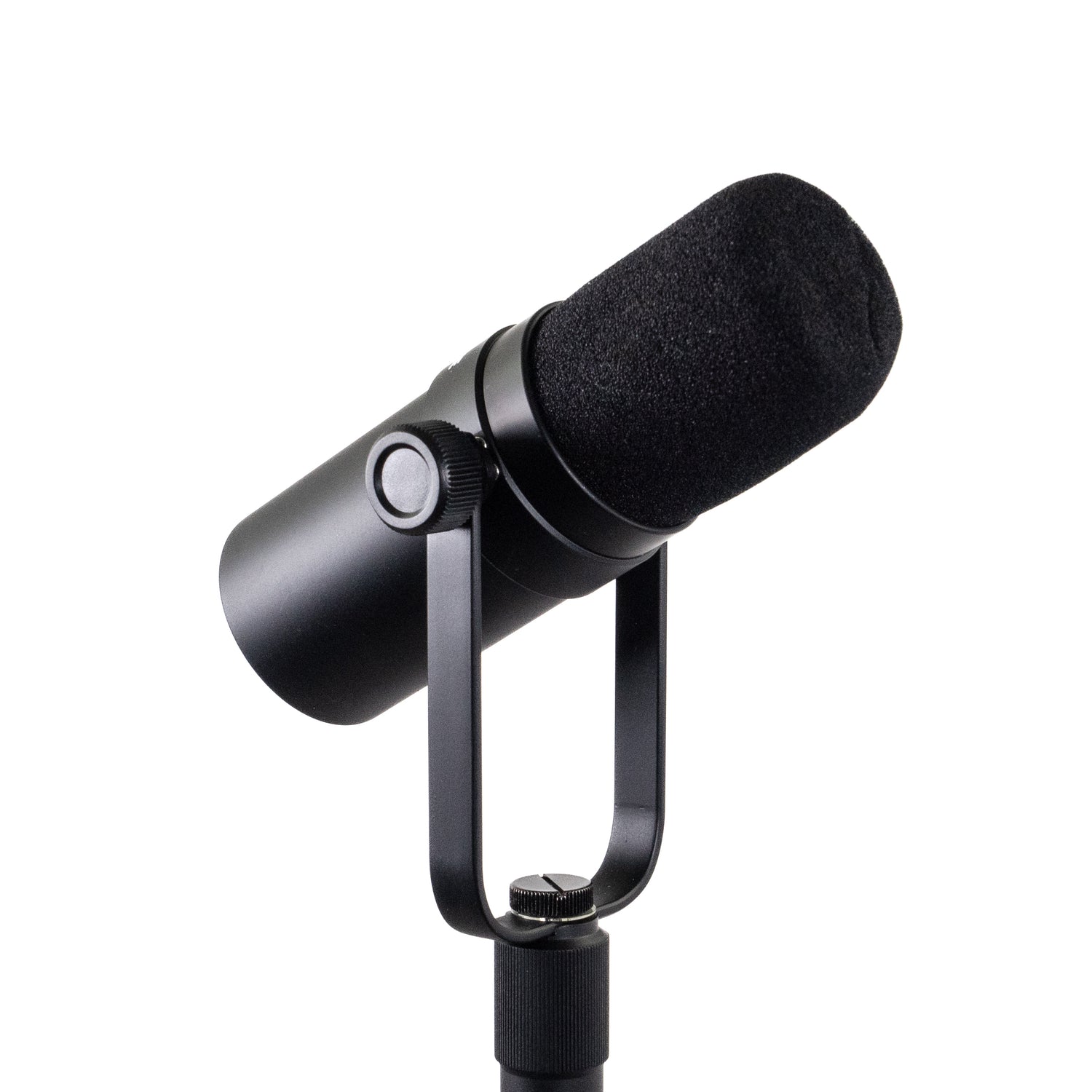

• Dynamisk mikrofon af høj studiekvalitet med et meget neutralt og bredt frekvens spektrum.
• Nyre optagekarakteristikken sørger for superb afvisning af off-axis- og baggrundslyd.

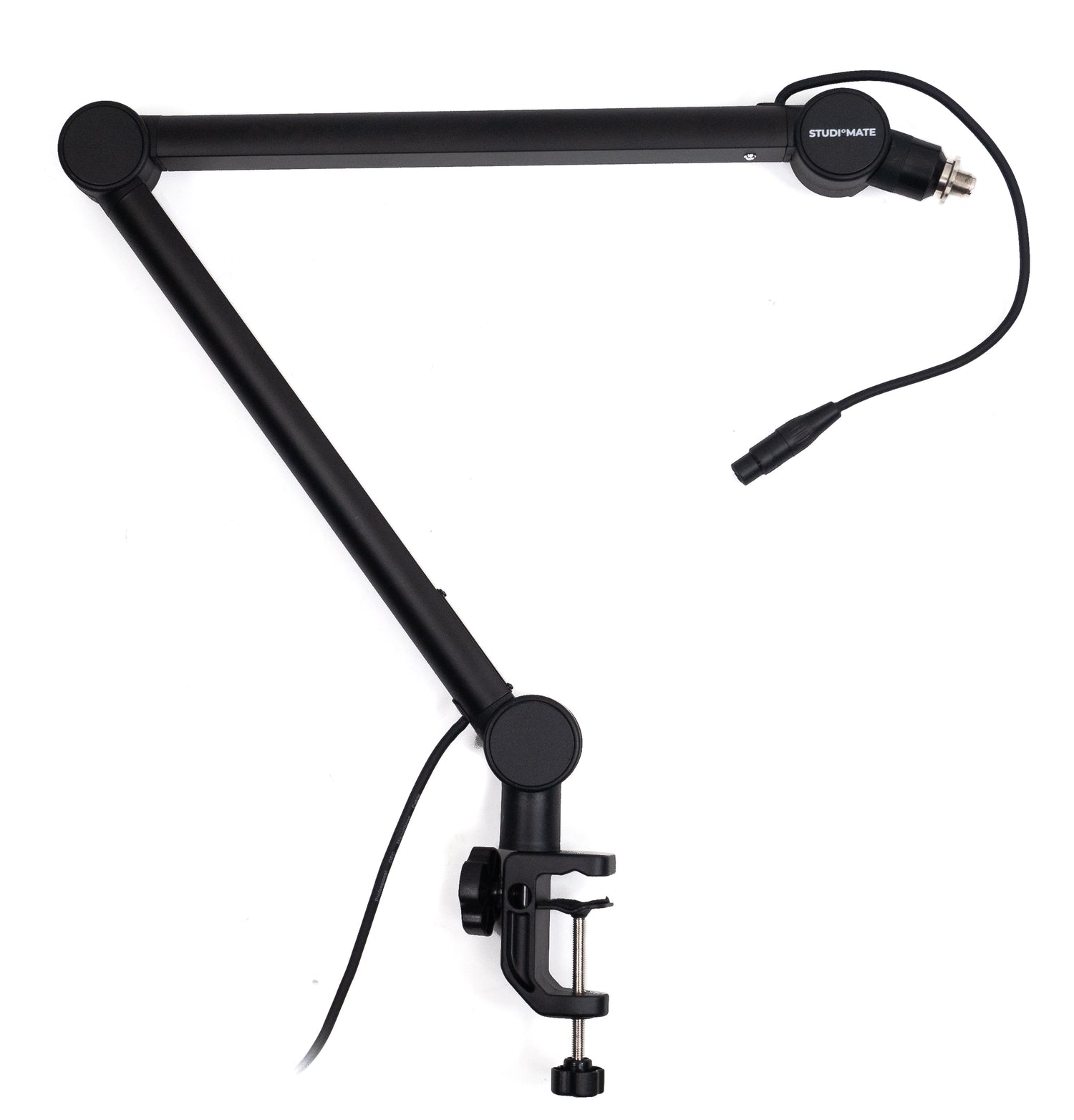

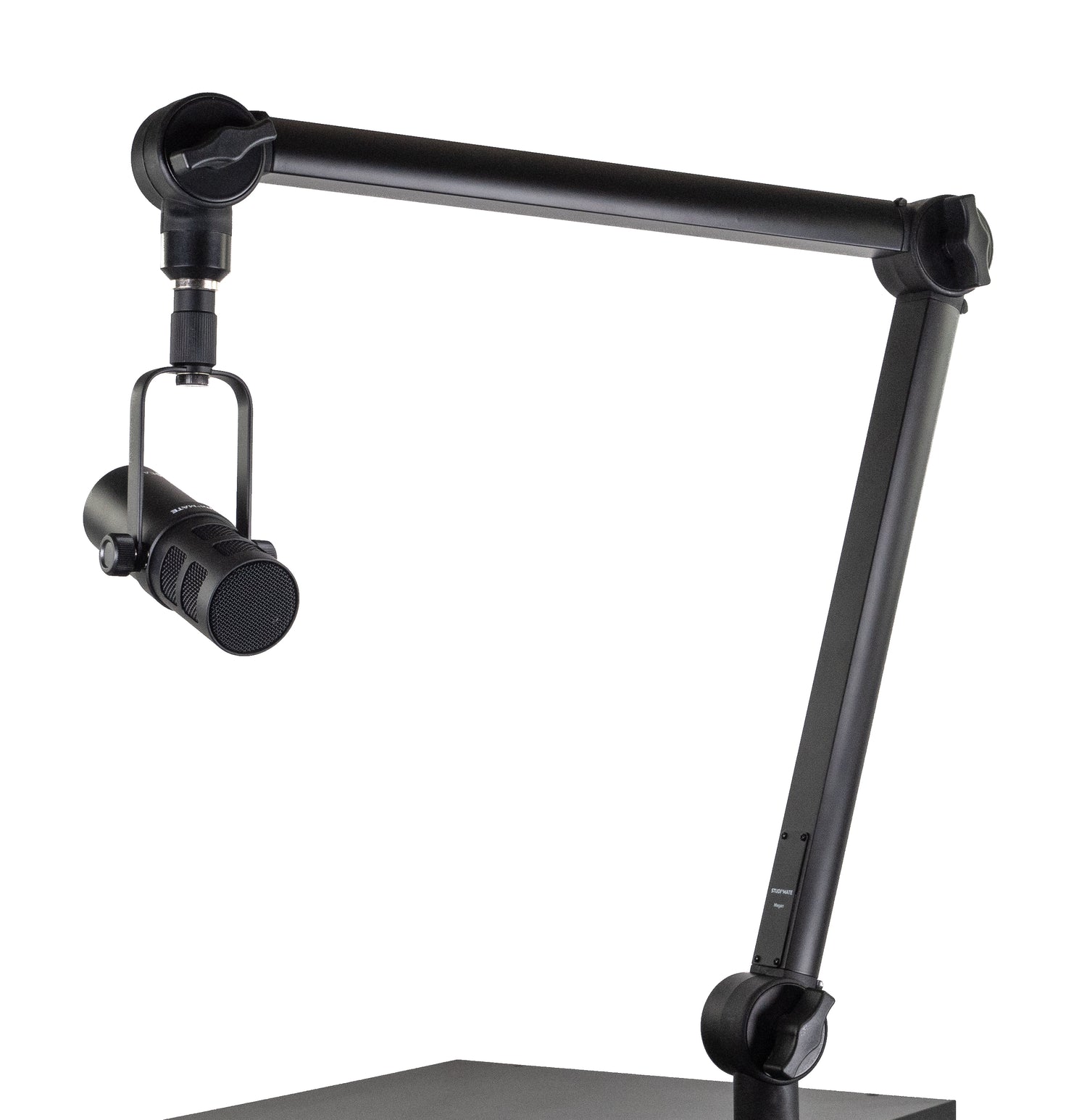

• Monteringsbeslag sørger for minimering af mekanisk støj.
• Integreret popfilter og robust kontrueret med aluminiums-legering.

-Sample Rate
48 kHz

-AD Conversion
24 bits

-DA Conversion
32 bits

- Processing
32-bit floating point

- USB Audio
Input: 20 ch
Output: 14 ch

- Bluetooth
A2DP, HFP

- Recording
Data Format: BWF (48 kHz, 32-bit float)
Strage: microSD card (sold separately)

-Sound Pad
Data Format: WAV (48 kHz, 16-bit linear)
Strage: internal strage(16GB)

-Effect Patches
GUITAR: 200 (User) + 100 (Preset)
SING: 200 (User) + 30 (Preset)
TALK: 200 (User) + 30 (Preset)

-Number of Effects
GUITAR: 1 ch (DISTORTION､PREAMP､EQ､NS､PEDAL FX､FX1､FX2､FX3､DELAY/REVERB)
SING: 2 ch (COMP､ENHANCE､DESS､EQ､NS､PITCH CORRECT､HARMONY､FX1､FX2､FX3､DELAY/REVERB)
TALK: 4 ch (COMP､ENHANCE､DESS､EQ､NS､FX1､FX2)
CONSOLE: 7 ch (COMP､ENHANCE､DESS､NS､FX)
FX; 1 ch (for SOUND PAD)
OUTPUT: COMP, REVERB

-Nominal Input Level(Adjustable)
GUITAR INPUT: -10 dBu
INPUT 1--4 (XLR type): -40 dBu
INPUT 1--4 (TRS type): -10 dBu
MOBILE IN: -20 dBu

-Input Impedance
GUITAR INPUT: 1M ohms
INPUT 1--4 (XLR type): 5.6 k ohms
INPUT 1--4 (TRS type):27 k ohms
MOBILE IN: 22 k ohms

-Nominal Output Level
MAIN OUT L, R: -10 dBu

-Output Impedance
MAIN OUT L, R: 1 k ohms
PHONES1--4: 47 ohms

-Recommended Load Impedance
MAIN OUT L, R: 10 k ohms or greater

-Display
Color Graphic LCD (480 x 272 dots) Touch screen

-Controls
CH1--8 Edit button, OUTPUT Edit button,
CH1--8 Mute button, OUTPUT Mute button,
CH1--8 Monitor button,
Talkback button,
Rec button,
Mark button,
EFFECTS button,
Pads 1--8,
CH1--8 fader, OUTPUT fader,
Headphone 1--4 knob

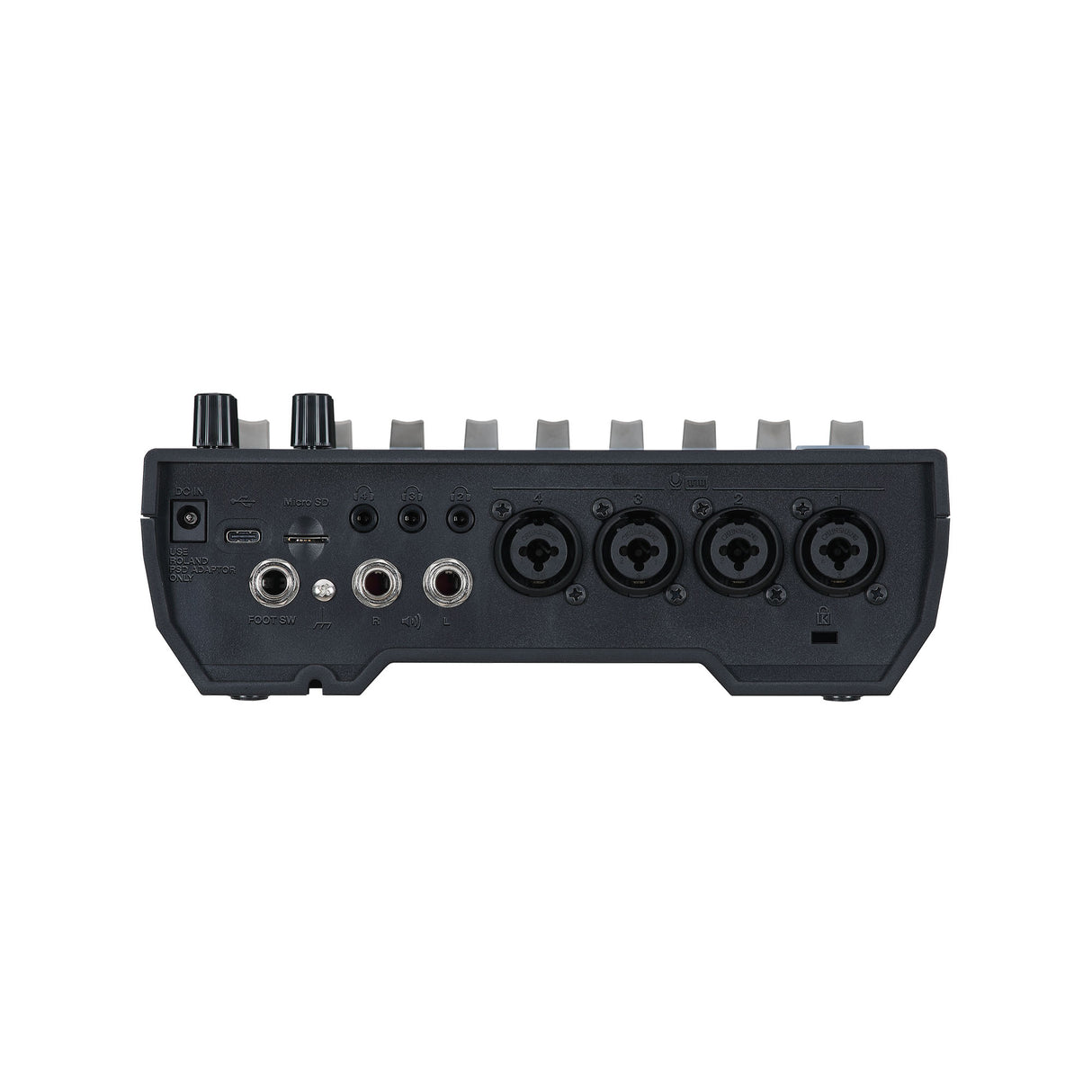

-Connectors
Guitar jack: 1/4-inch phone type
Channel 1--4 jacks: Combo type (XLR, 1/4-inch TRS phone), balanced
Mobile jack: Stereo miniature phone type(CTIA)
MAIN OUT (L, R) jacks: 1/4-inch phone type
Headphone 1 jack: Stereo miniature phone type(CTIA)
Headphone 2--4 jacks: Stereo miniature phone type
FOOT SW jack: 1/4-inch TRS phone type
USB port: USB type C
DC IN jack

-Power Supply
AC adaptor(PSD series)
USB BUS Power

-Current Draw
1.8 A (with phantom power)
1.6 A (without phantom power)

-Dimensions
217 (W) x 267 (D) x 80 (H) mm
8-9/16 (W) x 10-9/16 (D) x 3-3/16 (H) inches

-Weight (including battery)
1.36 kg
3 lbs

-Accessories
AC adaptor: PSD series
Owner's manual
Leaflet "USING THE UNIT SAFELY"

-Options (sold separately)
Footswitch: FS-5U
Dual Footswitch: FS-6
Expression Pedal: FV-500L, FV-500H, Roland EV-5

* 0 dBu = 0.775 Vrms
