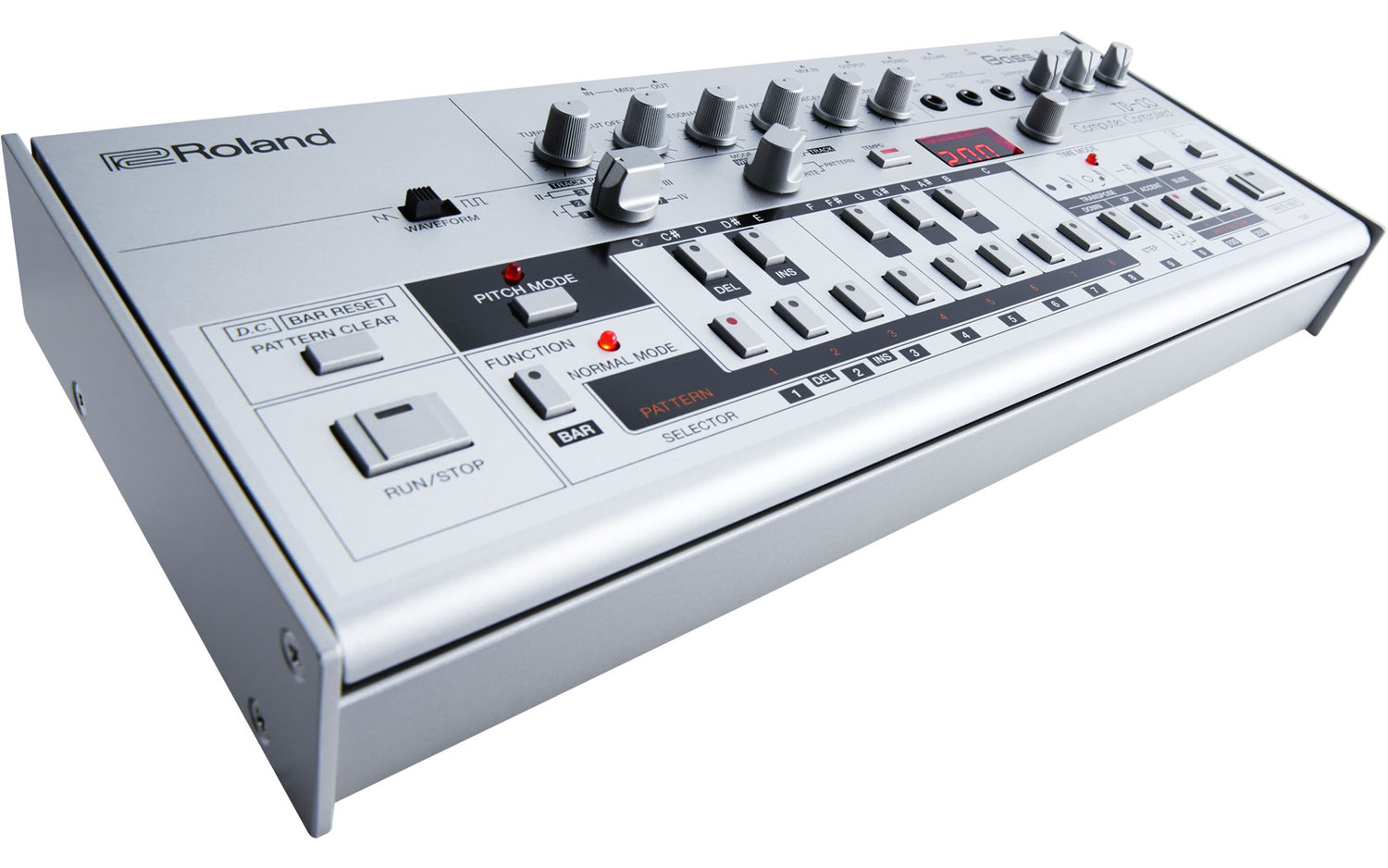

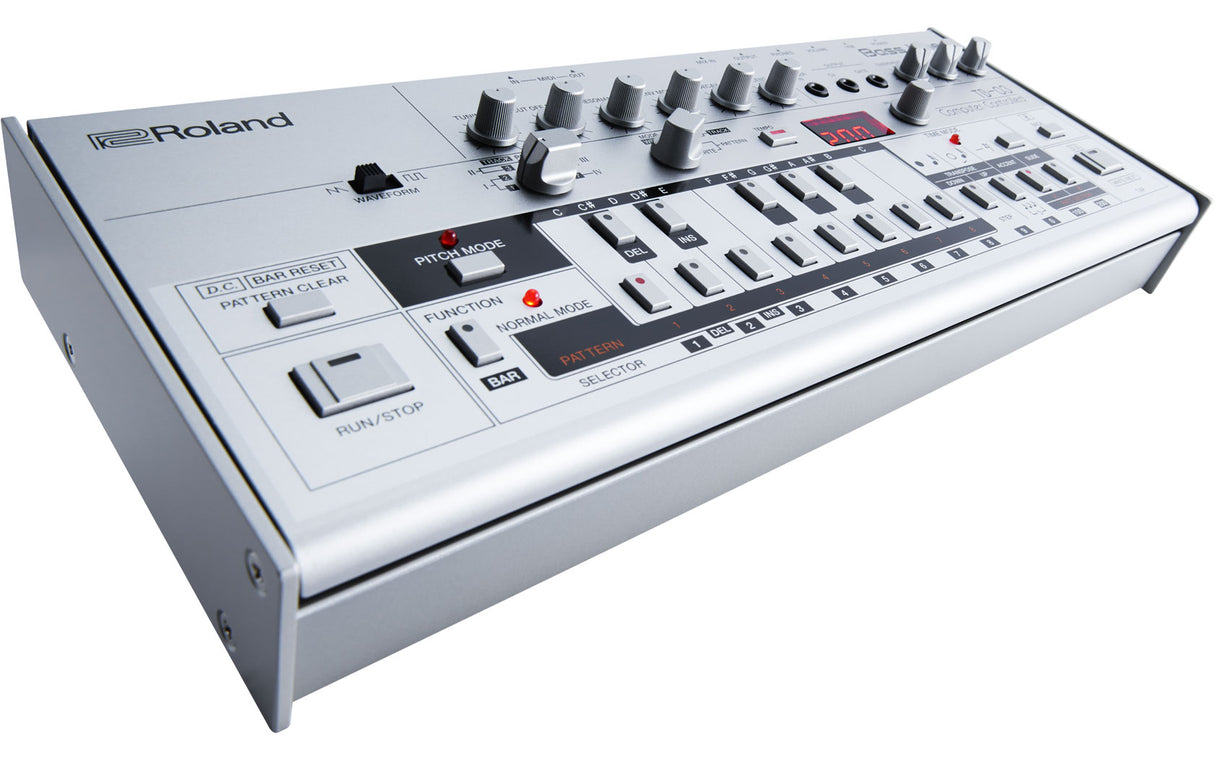

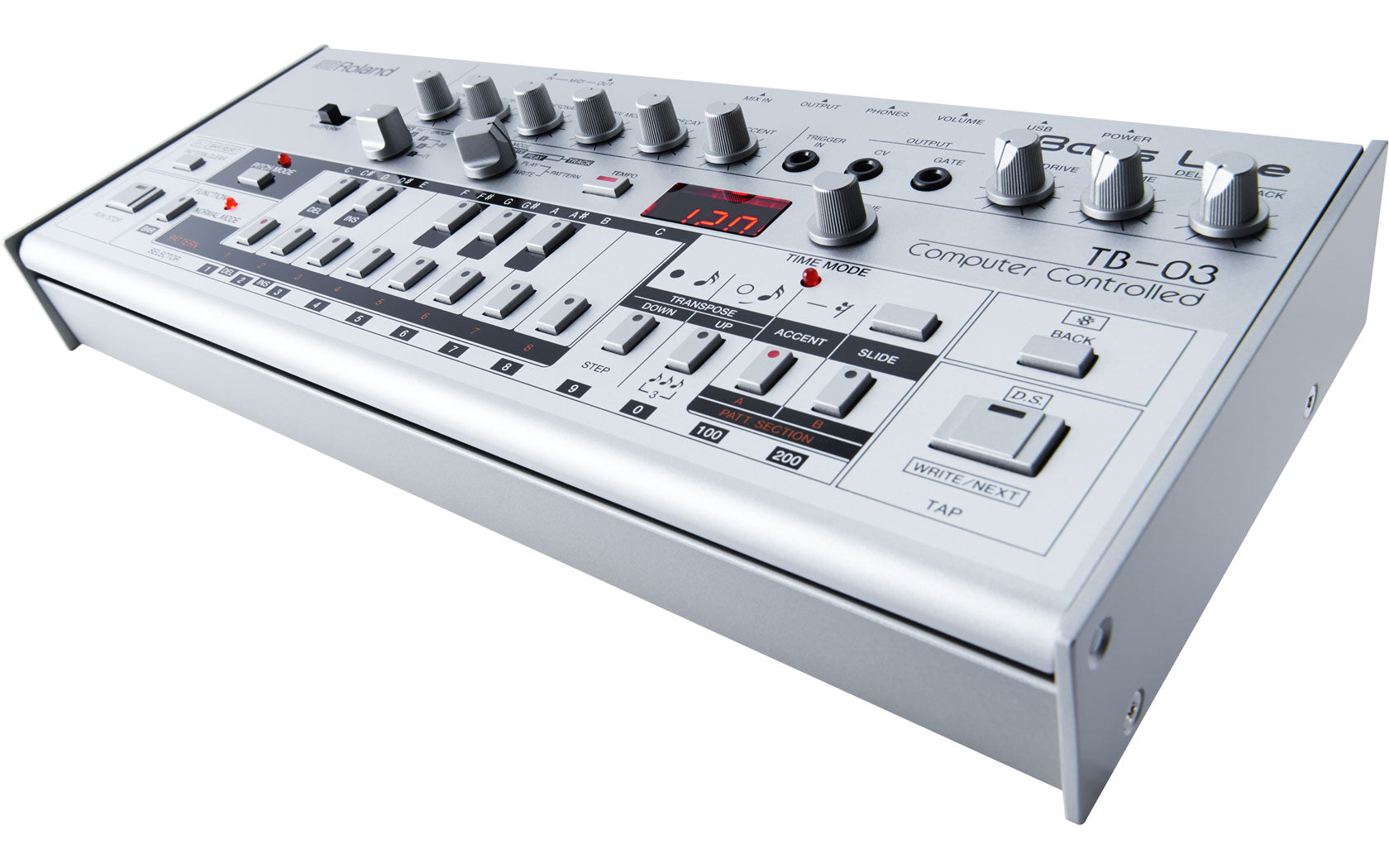

Roland Boutique TB-03 Synth

• Realistisk remake af den ikoniske TB-303 Bass Line synth
• Hands-on control af paramete, inklusiv cutoff, resonance, envelope mod, decay, og accent
• Programmerbar via classic Pitch, Time, og Step write modes
• CV/Gate outputs til control af vintage analog gear og modular synthesizers
• Batteri (4 x AA) eller USB powered
• indbygget powered mini-speaker

Roland TB-03

TB-03 er et digitalt remake af den ikoniske TB-303 Bass Line synth. Samme lyd og user interface som på den original TB-303. Nye features der ikke findes på den original TB-303, er blandt andet et 4-digit LED display, overdrive og delay effects, MIDI, fine tempo control og patten control. Kan programmeres via klassike Pitch, Time, og Step write modes.

SPECIFICATIONS Roland TB-03

User Memory

Patterns: 96 (4 groups (I, II, III, IV) x 3 sections (A, B, C) x 8 patterns)
Tracks: 7

Waveform

(SAW, SQUARE)

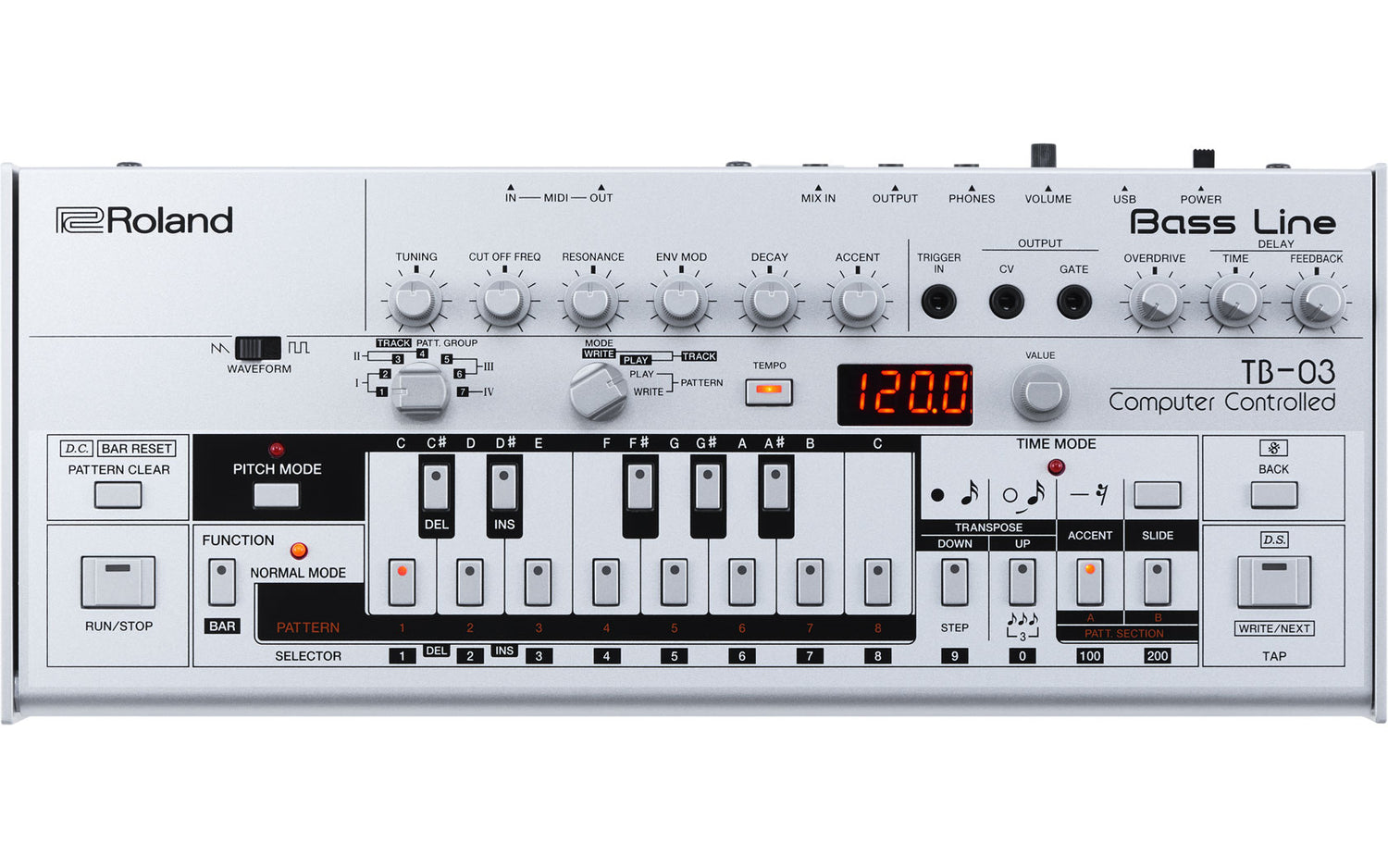

Controllers

BVOLUME knob
TUNING knob
CUT OFF FREQ knob
RESONANCE knob
ENV MOD knob
DECAY knob
ACCENT knob
OVERDRIVE knob
DELAY TIME knob
DELAY FEEDBACK knob
WAVE FORM switch
TRACK PATT. GROUP selector
MODE selector
TEMPO button
VALUE knob
PATTERN CLEAR button
RUN/STOP button
PITCH MODE button
FUNCTION button
Keyboard buttons (C, C#, D, D#, E, F, F#, G, G#, A, A#, B, C)
TIME MODE button
TRANSPOSE UP/DOWN buttons
ACCENT button
SLIDE button
BACK button
TAP button

Effects

OVERDRIVE (Overdrive/Distortion)
DELAY (Tape Echo/Digital Delay/Reverb)

Indicators

7 segments, 4 characters (LED)
PITCH MODE LED
NORMAL MODE LED
TIME MODE LED

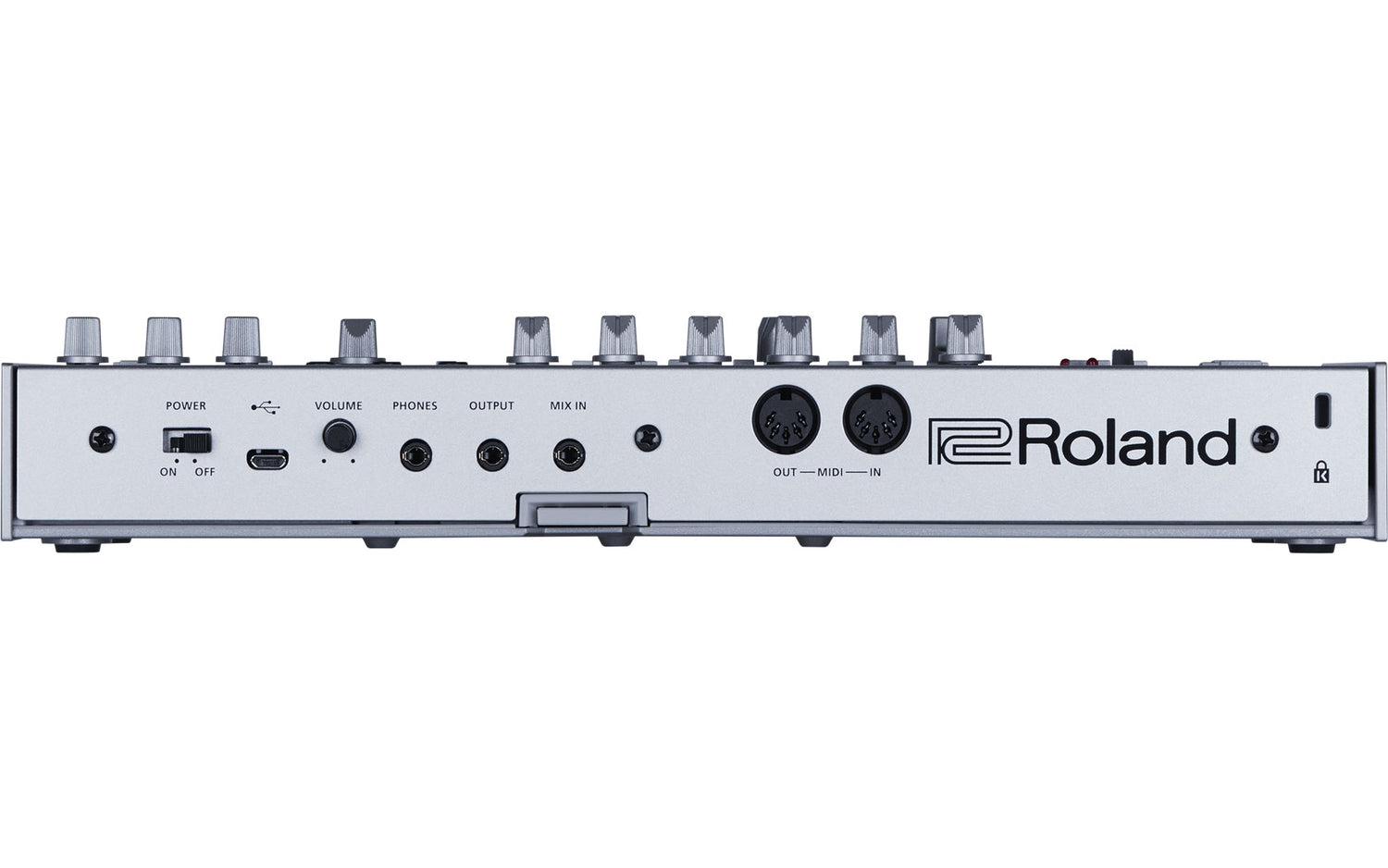

Connectors

TRIGGER IN jack: Mono miniature phone type
CV OUTPUT jack: Mono miniature phone type
GATE OUTPUT jack: Mono miniature phone type
PHONES jack: Stereo miniature phone type
OUTPUT jack: Stereo miniature phone type
MIX IN jack: Stereo miniature phone type
MIDI (IN, OUT) connectors
USB port: Micro-B type (Audio, MIDI)

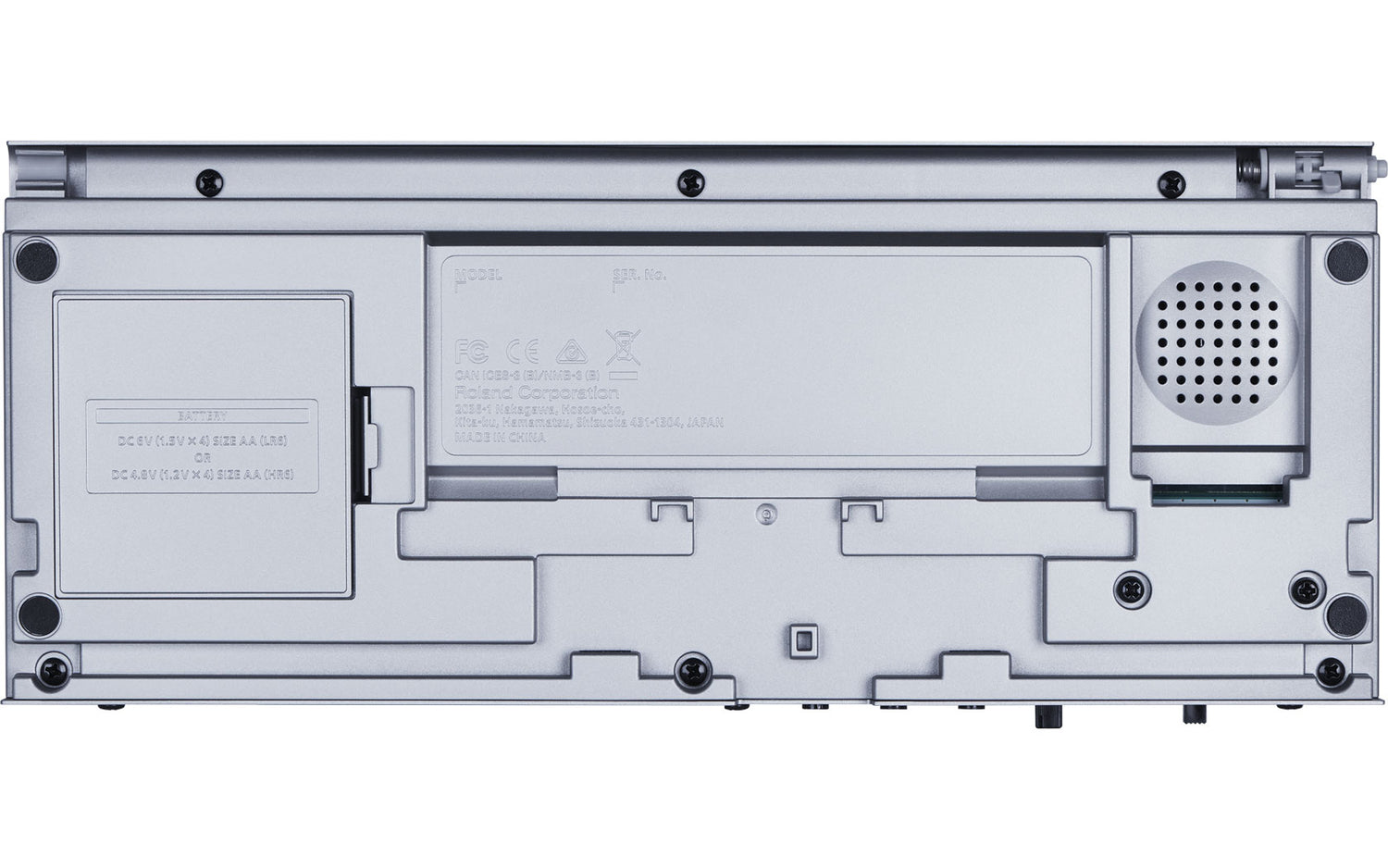

Power Supply

Rechargeable Ni-MH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
USB bus power

Current Draw

500 mA (USB bus power)

Expected battery life under continuous use

Rechargeable Ni-MH battery: Approx. 5 hours
* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.

ACCESSORIES



Owner's Manual
DK-01 Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 4

SIZE AND WEIGHT

Width

308 mm
12-1/8 inches

Depth

130 mm
5-1/8 inches

Height

52 mm
2-1/16 inches

Weight

940 g
2 lbs 2 oz
