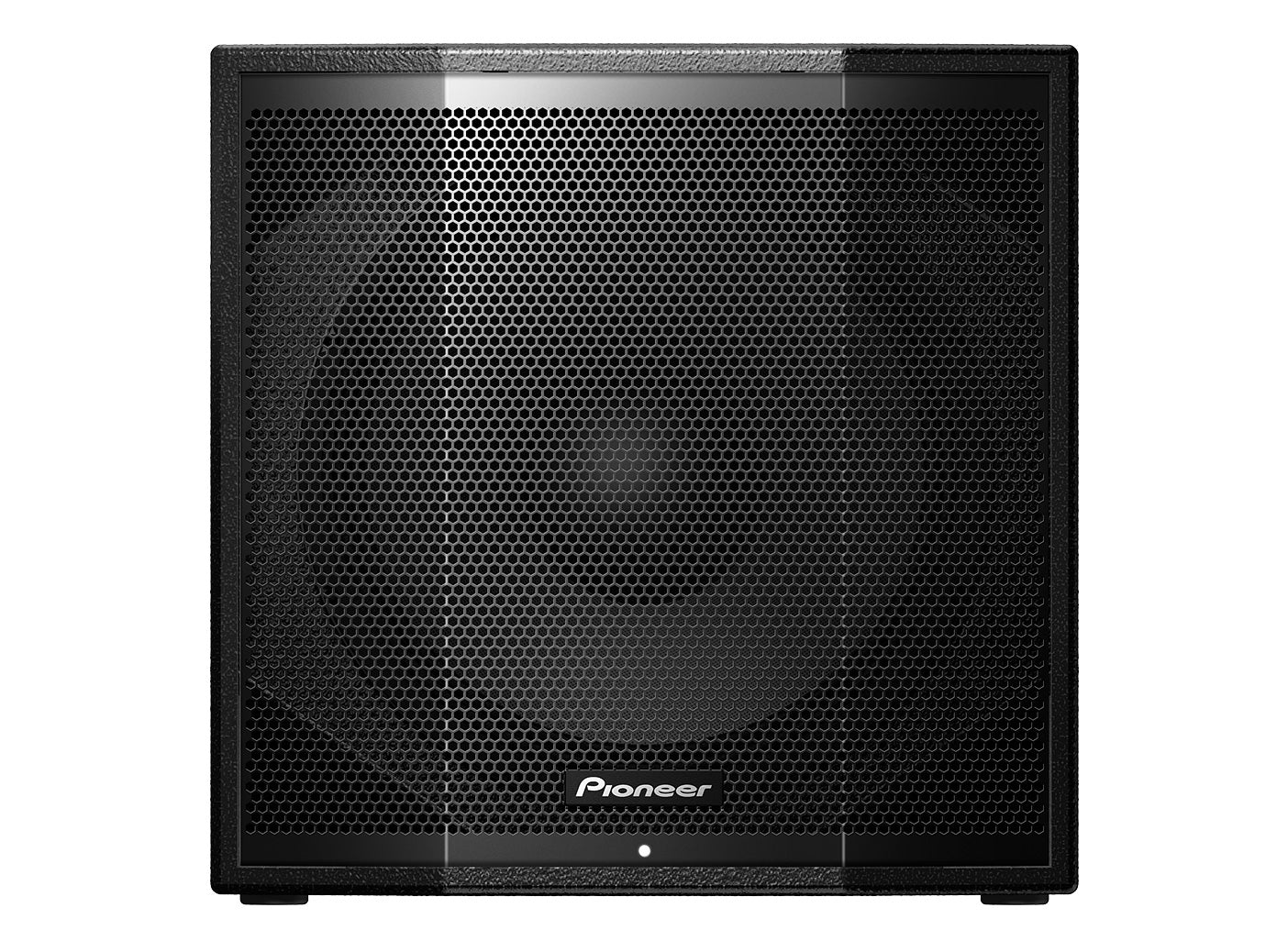

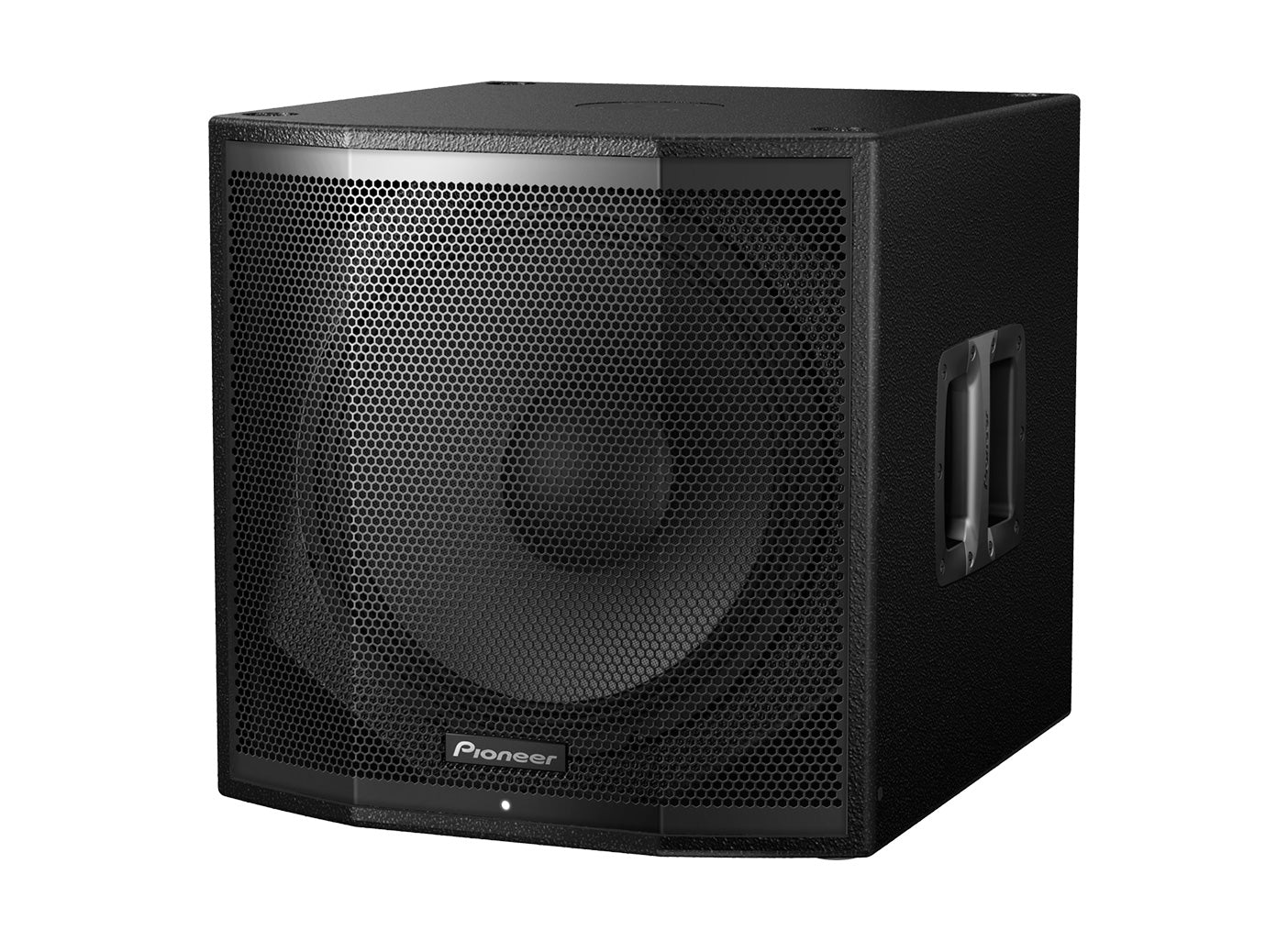

Pioneer DJ XPRS 115S Aktiv Subwoofer

Tight Bass range

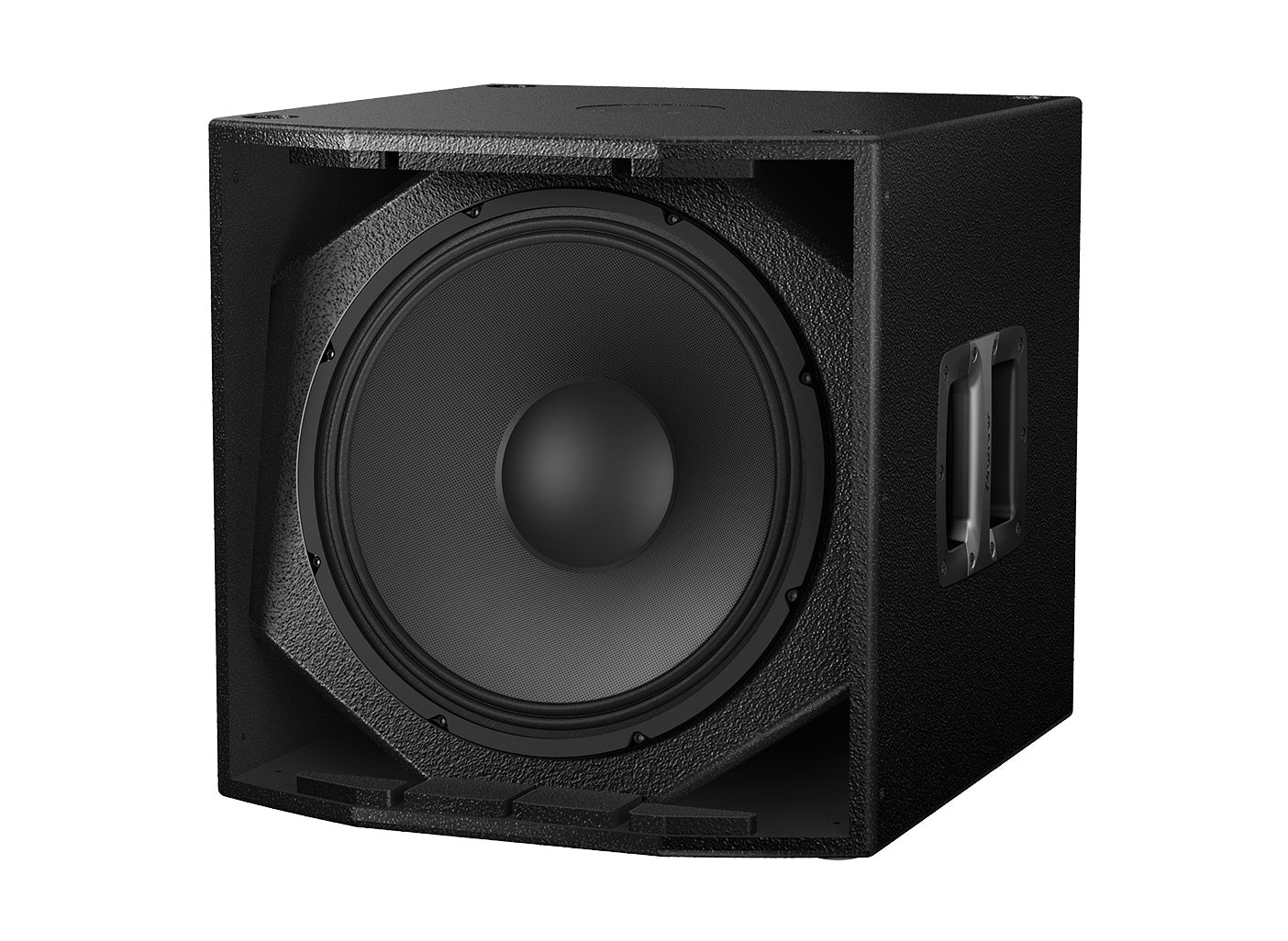

The XPRS115S slanted baffle enclosure – housed in a compact 15-mm birch plywood cabinet – and high-quality 15-inch LF drivers deliver rich, powerful low frequencies similar to those produced by the XPRS215S dual 15-inch subwoofer.

Powersoft Class D amps

Powersoft’s Class D amp modules produce 2400 W (peak) or 1200 W (continuous) output. The Power Factor Correction (PFC) reduces power consumption while ensuring steady performance in all environments.

Instant control

A versatile Crossover switch lets you adjust the low pass filter cut-off at stages between 80Hz and 150Hz. At the same time, the Phase switch allows you to choose a positive or negative polarity to prevent multiple subwoofers from cancelling each other out.

Advanced protection

The XPRS115S subwoofer is packed with features to protect the drivers, amp and power supply – giving you peace of mind, consistent high-quality sound, and extending the life of your sound system.

1. Amplifier protection

• Thermal limiting: cuts off to prevent overheating.
• Output overcurrent: reduces the speaker’s output to safe levels in the event of output overcurrent.

2. Speaker protection

• DC offset removal: shuts down to prevent further damage if the speaker blows.
• Stationary high frequency protection: protects the speaker from loud bursts such as feedback.
• Input voltage limiter: Peak and RMS.
• Output voltage limiter: cuts the LF and compression drivers separately when either reaches their peak.

3. Power protection

• AC mains over-voltage protection: protects against power surges.

A status LED on the front of the cabinet has 3 settings – power, limiter or off – giving an optional visual reference to the status of the speaker.

Flexible connectivity

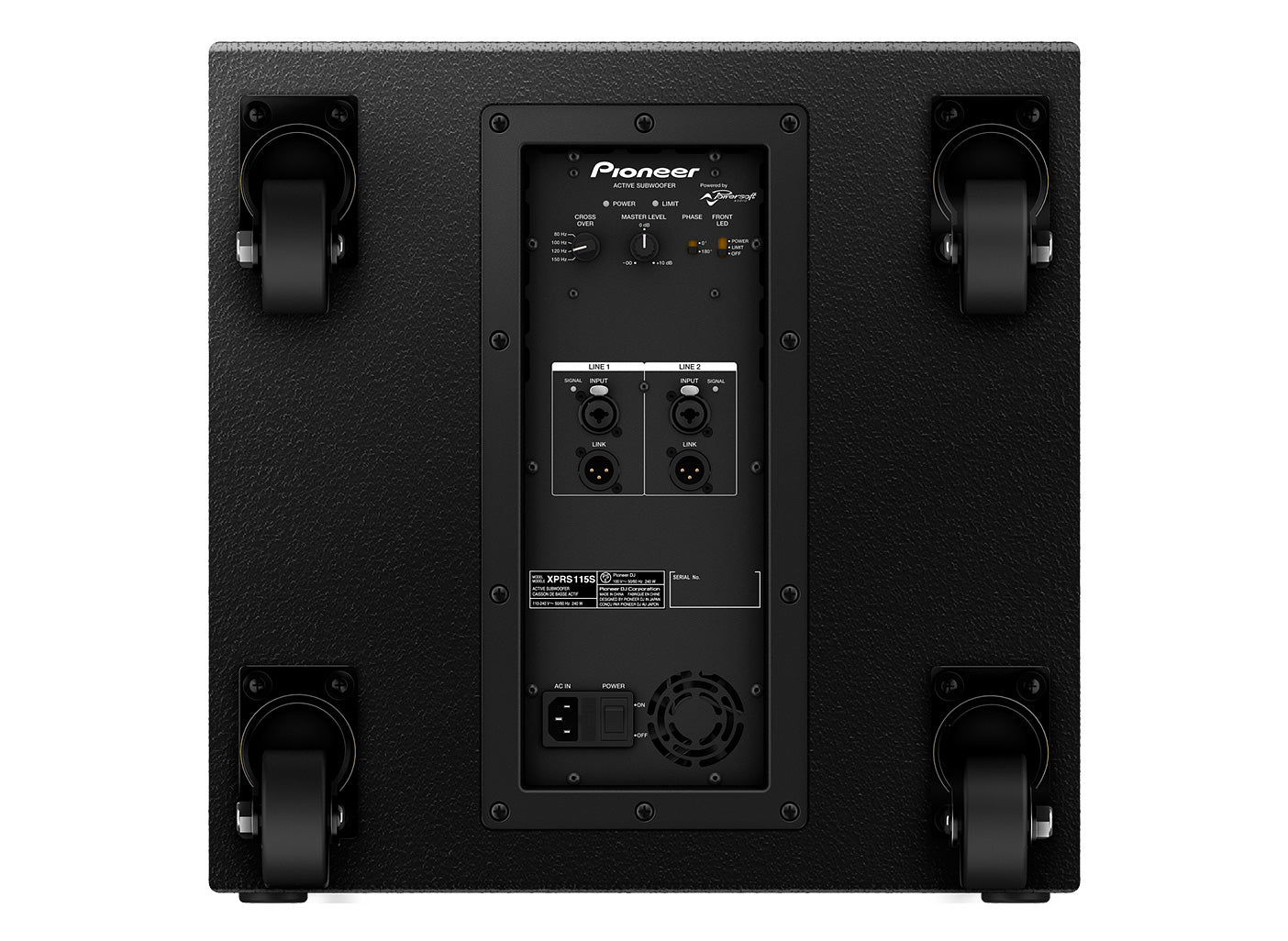

The subwoofer has 2 balanced XLR/TRS combo sockets so you can input a couple of devices at the same time. Plus 2 balanced XLR through outputs enable easy connection to other speakers and subs.

Designed for the road

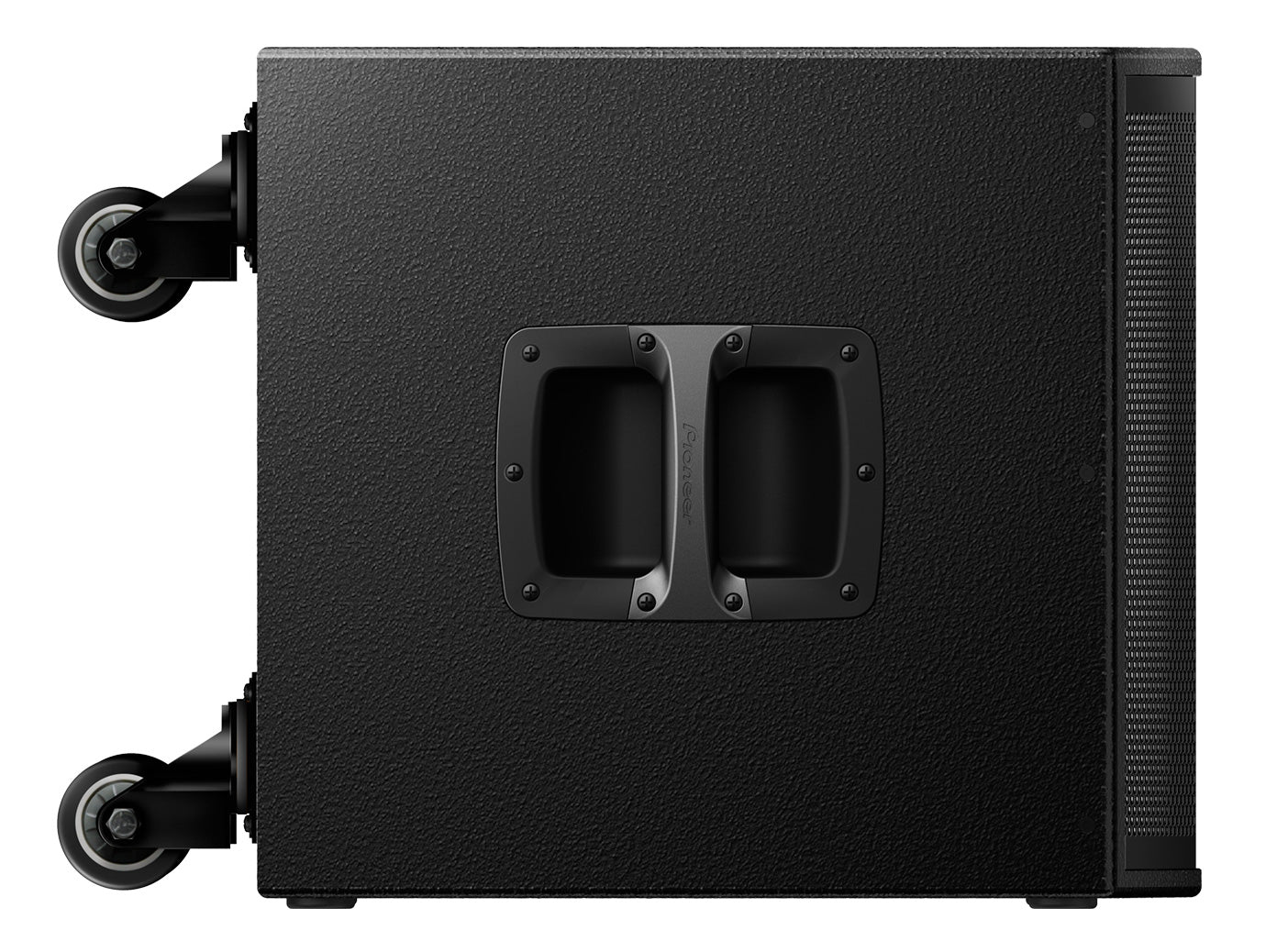

The durable, birch plywood enclosure keeps your PA speaker safe, while carefully placed handles take the hard work out of transit and set-up.

Auto-ranging power supply

Plug in the XPRS Series anywhere in the world – including venues with generators or temporary power supplies. They will detect and adapt to the voltage without compromising the sound quality.

Up to 7 year warranty

We‘re extending the free warranty period for the XPRS Series active speakers. You can now receive up to 7 years of cover by registering your products online within 90 days of your purchase. Please review the warranty statement for a full list of terms and conditions.
