Eurolite LED TMH-S90

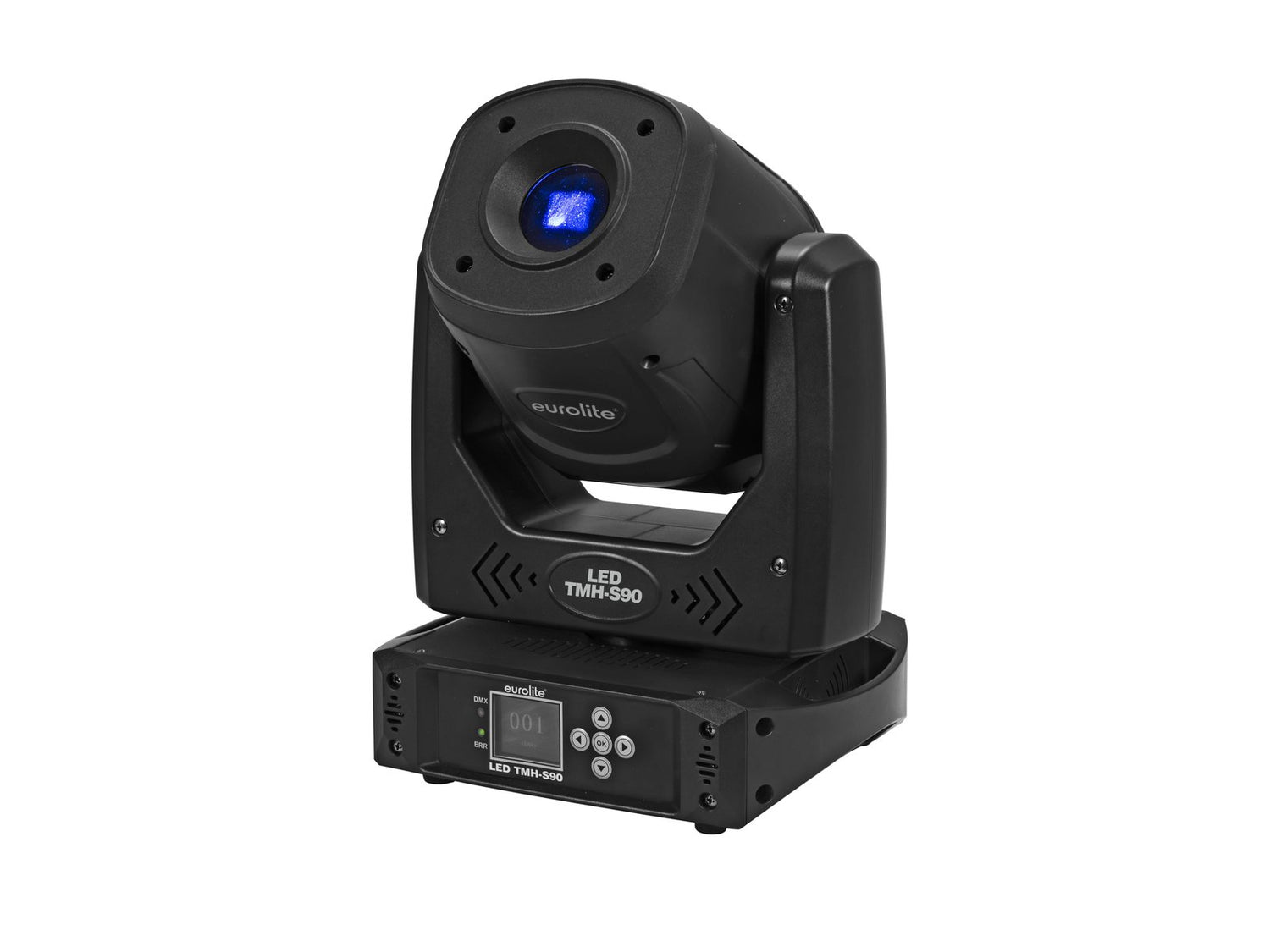

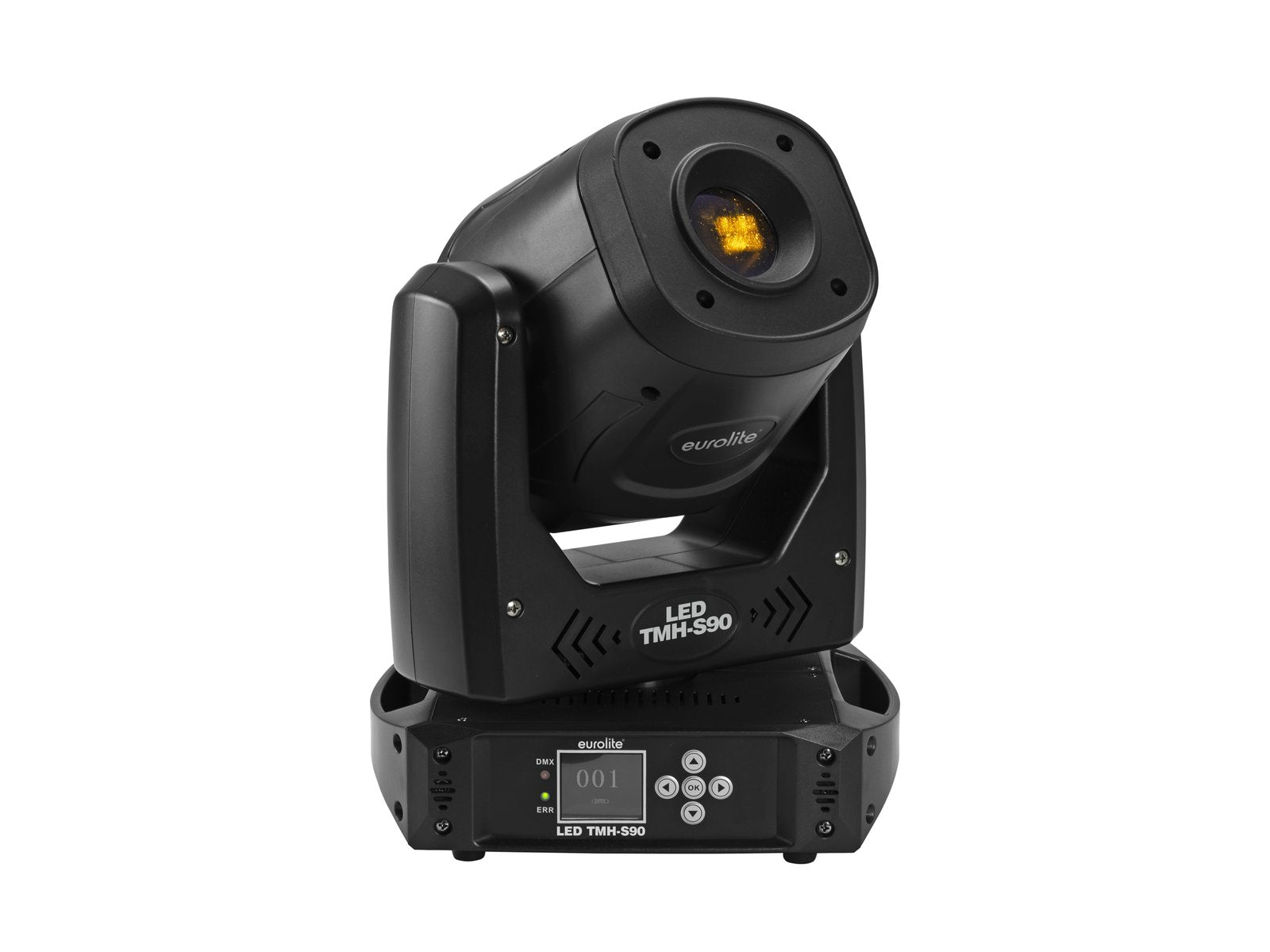

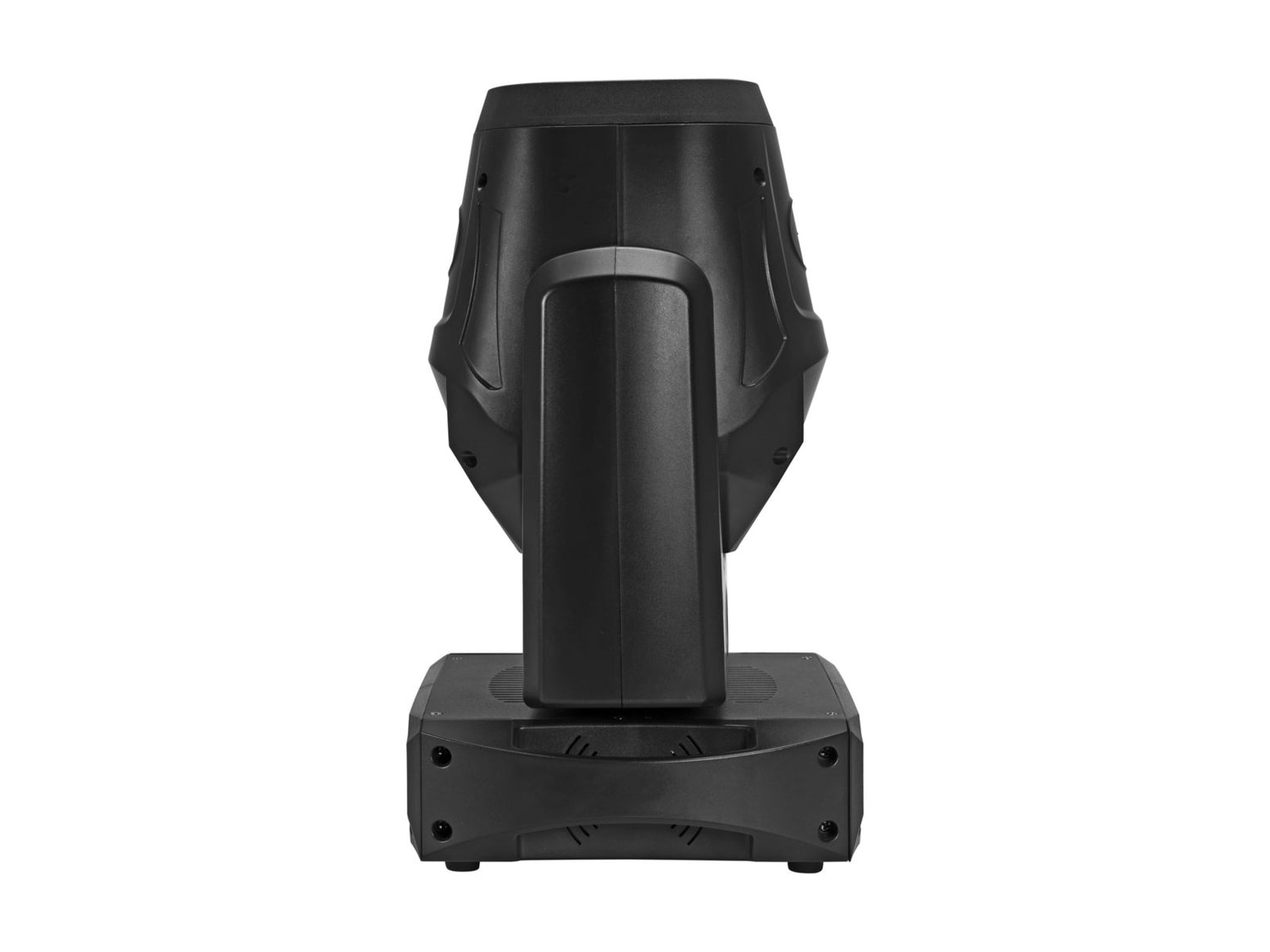

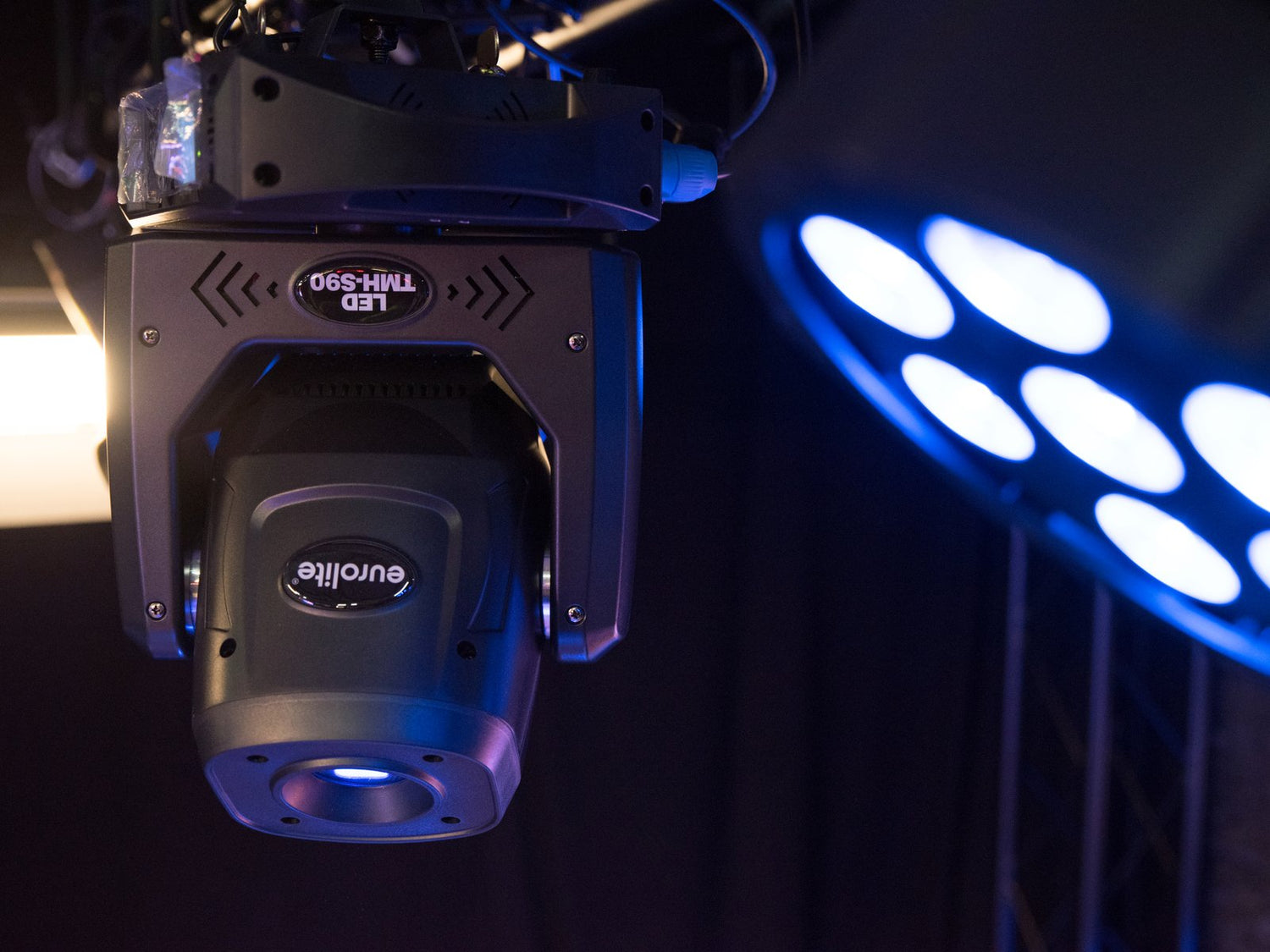

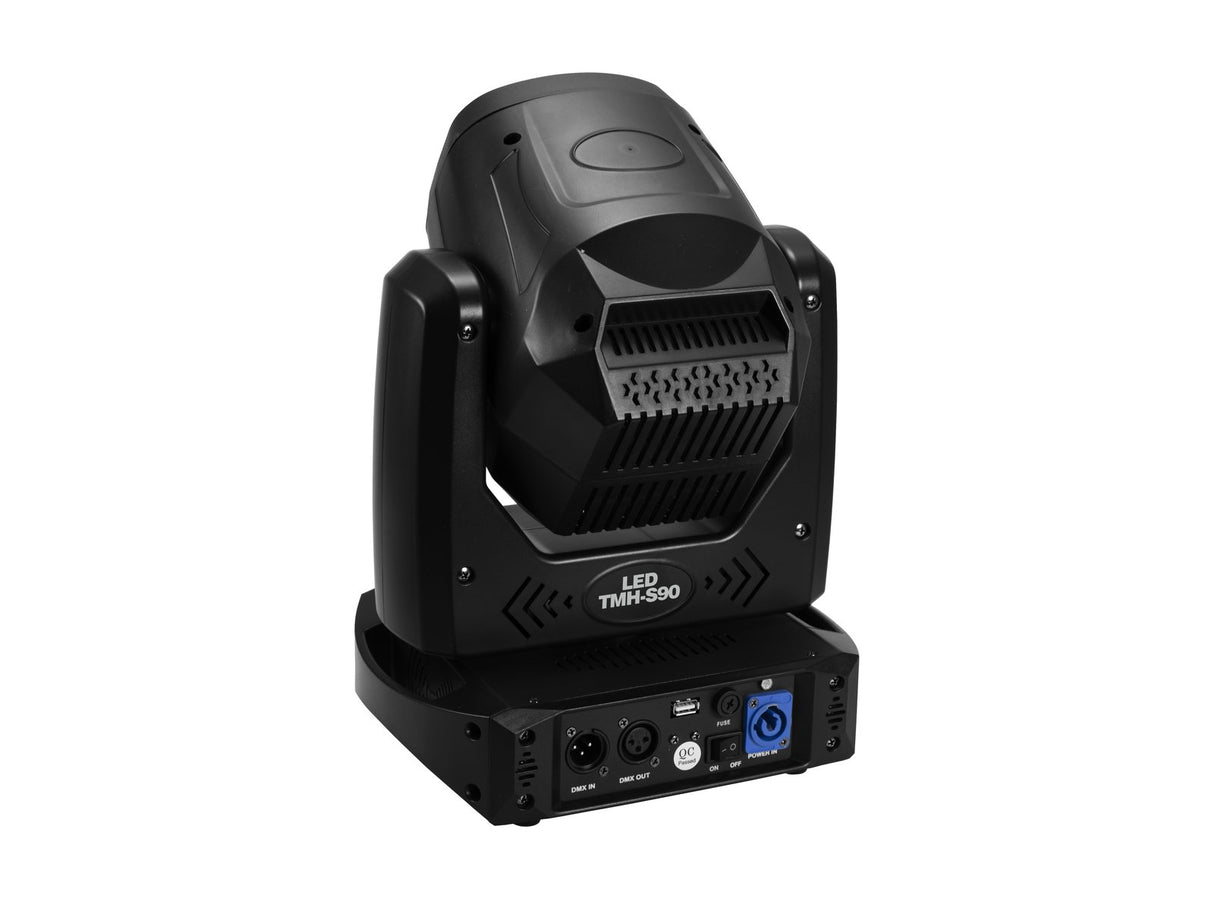

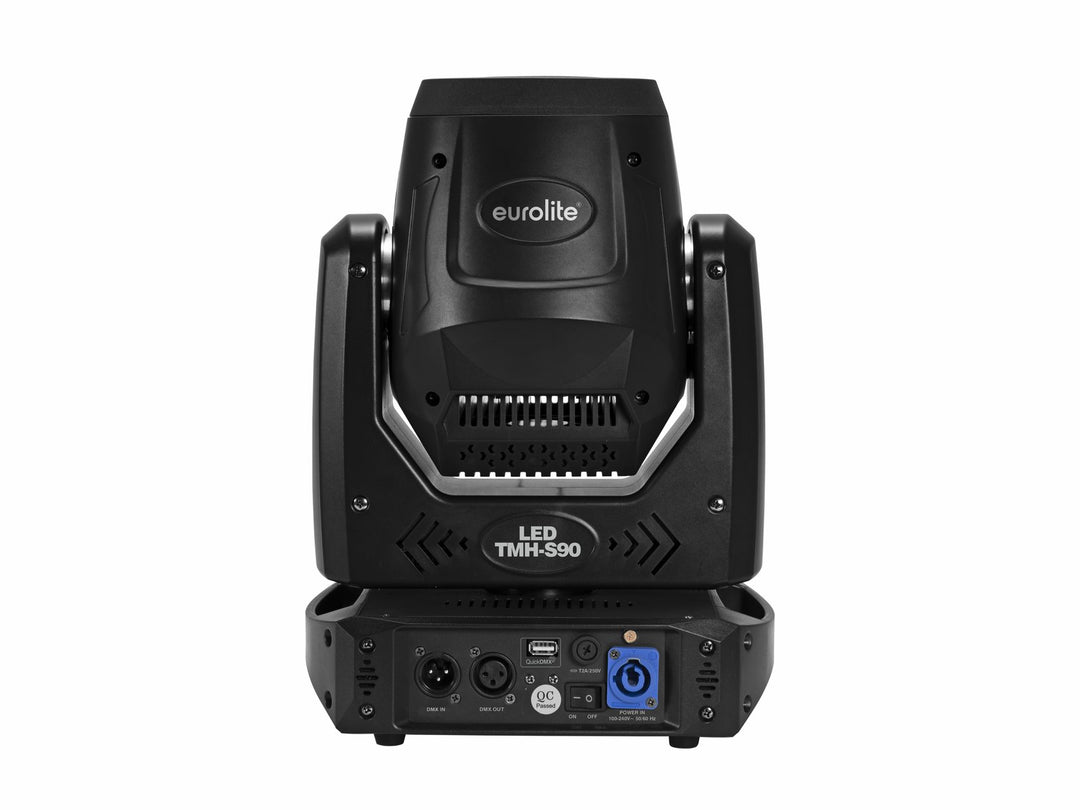

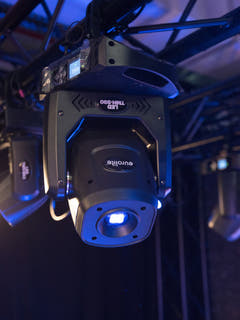

Eurolite LED TMH-S90 Moving Head Spot

• LED Moving Head spot med farvehjul, statisk og roterende gobohjul, prisme og fokus
• Roterende 3-fasetteret prisme med variabel hastighed
• 1 kraftfuld LED 90 W COB (chip-on-board) kold hvid (CW)
• Positionering inden for 540° PAN og 200° TILT
• Automatisk positionskorrektion (feedback)
• Præcis positionering (16-bit opløsning)
• 3-dobbelt prisme; gobohjul med roterende gobos; gobohjul med statiske gobos; Fokus motorstyret; farvehjul
• Farvehjul med 7 filtre plus åben
• Halvfarver kan vælges, Regnbueeffekt med justerbar hastighed i begge retninger
• Gobohjul med statiske gobos, 6 gobos, 1 multifarvet gobo og åben
• Ryste effekt
• Gobohjul med roterende gobos, 6 gobos og åben
• Ryste effekt
• Gobos udskiftelige
• Slot-in gobo-system for nem udskiftning af gobos
• Integrerede showprogrammer
• Enheden køles af en køleventilator
• Styring via DMX; Lyd til lys via mikrofon; stand-alone; Master/slave-funktion; QuickDMX via USB (valgfrit); CRMX fra LumenRadio via USB (valgfrit); W-DMX fra wireless solution via USB (valgfrit)
• Flimmerfri
• Med en strålevinkel på 12°
• Elektronisk dæmper
• Forprogrammeret i EASY SHOW 1; Light Captain; EASY SHOW 3
• Til anvendelsesområder som: Klub/ danseskole; Bryllup/ gallabegivenheder; Scene; mobile DJs/ entertainer

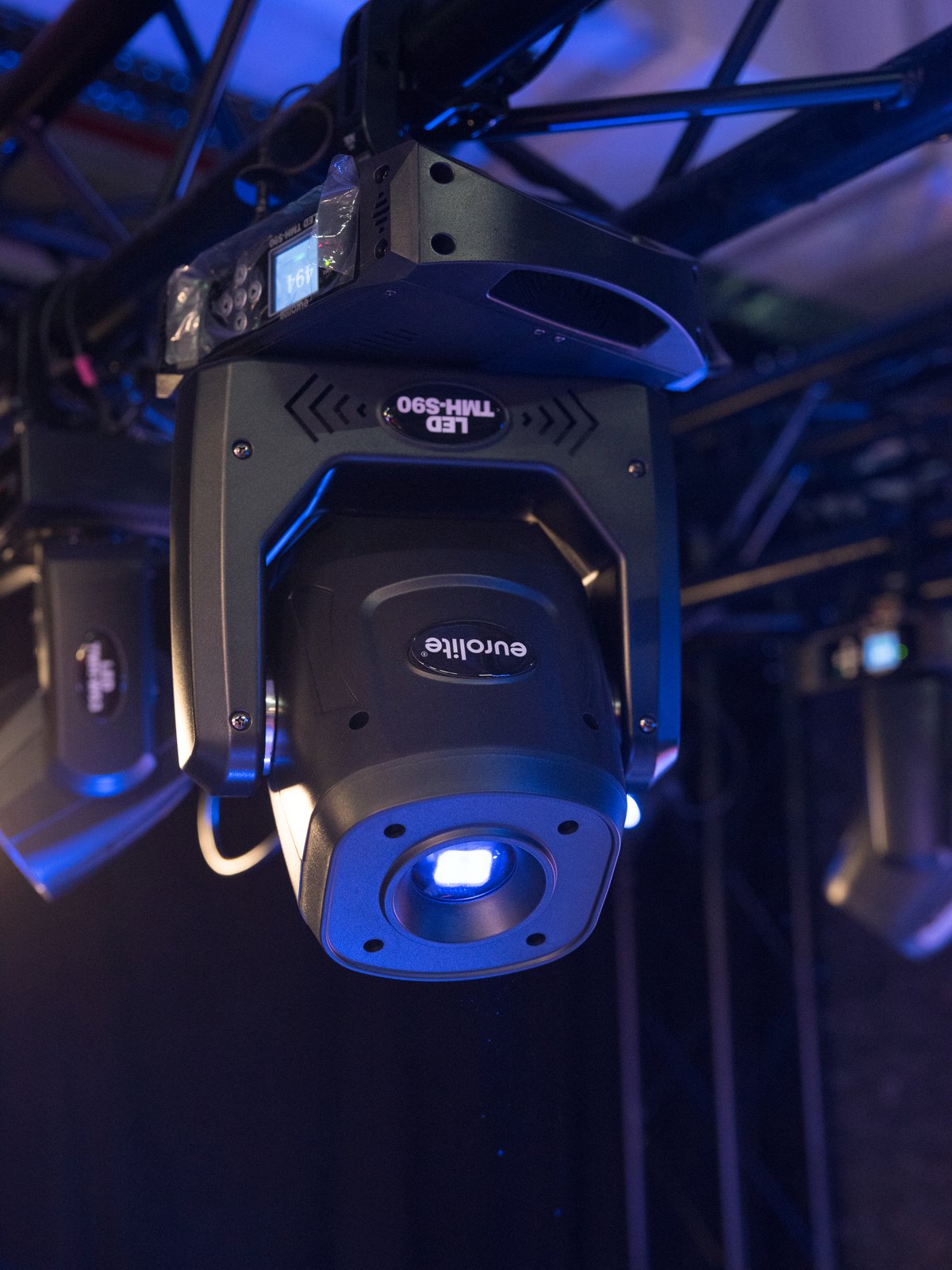

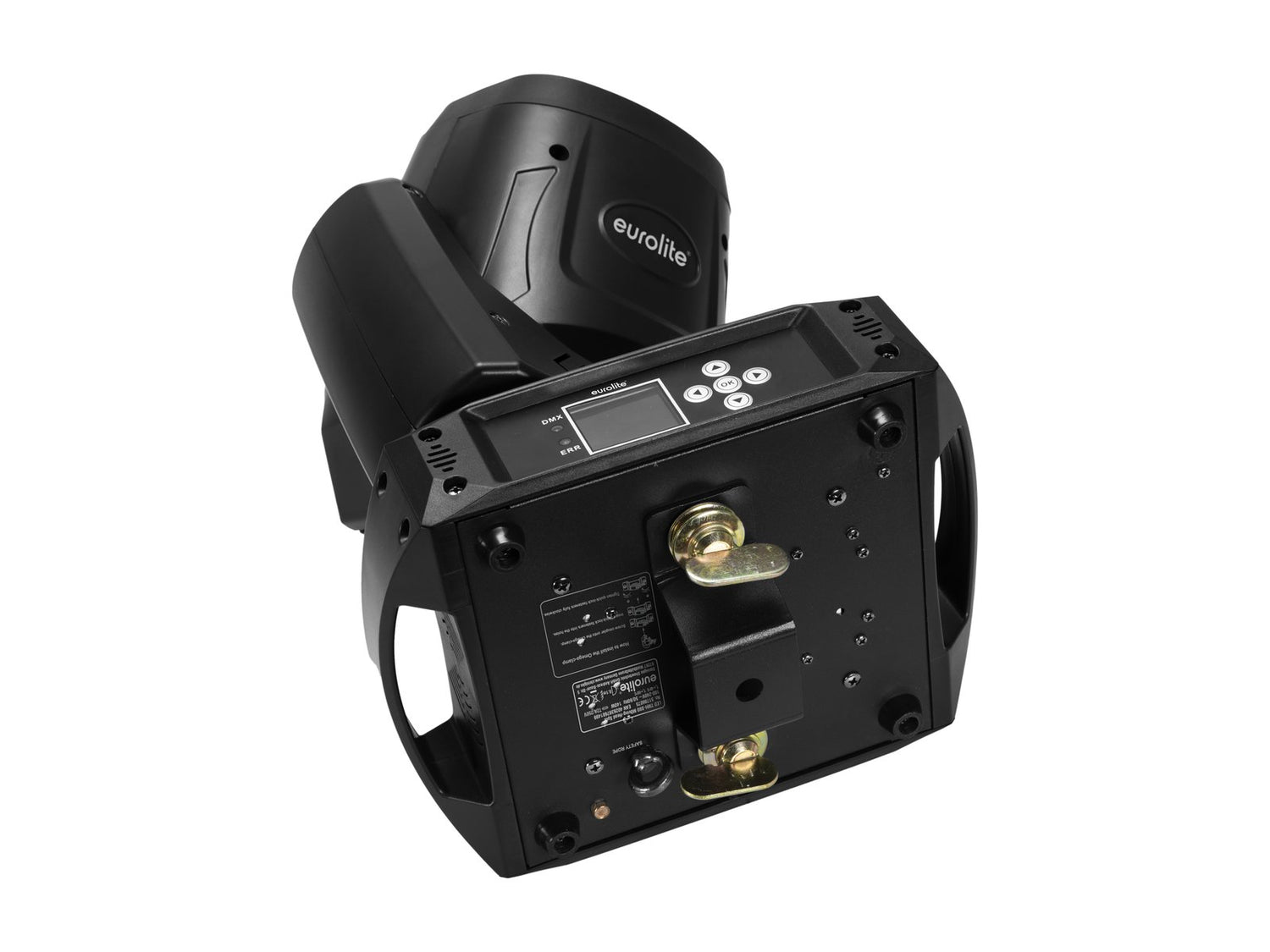

• Anvendelsesmulighed: Stående; ophængt

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 140 W
• IP classification: IP20
• Protection class: Protection class I
• Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug
• Power output: P-Con (gray), mounting version
• Fuse: 5 x 20 mm, T 2 A
• Lamp type: LED lamp
• LED: 1 x 90 W COB (chip-on-board) cold white (CW)
• Max. TILT movement: 200° Exact positioning (16 bit resolution) Auto position correction (feedback)
• Max. PAN movement: 540° Exact positioning (16 bit resolution) Auto position correction (feedback)
• Flash rate: 2 - 30 Hz
• Equipment: Prism 3-fold; gobo wheel with rotating gobos; gobo wheel with static gobos; Focus motor-driven; color wheel
• Noise classification: Class 3 (clearly perceptible sounds)
• Photobiological safety: Risk Group 0
• DMX channels: 15

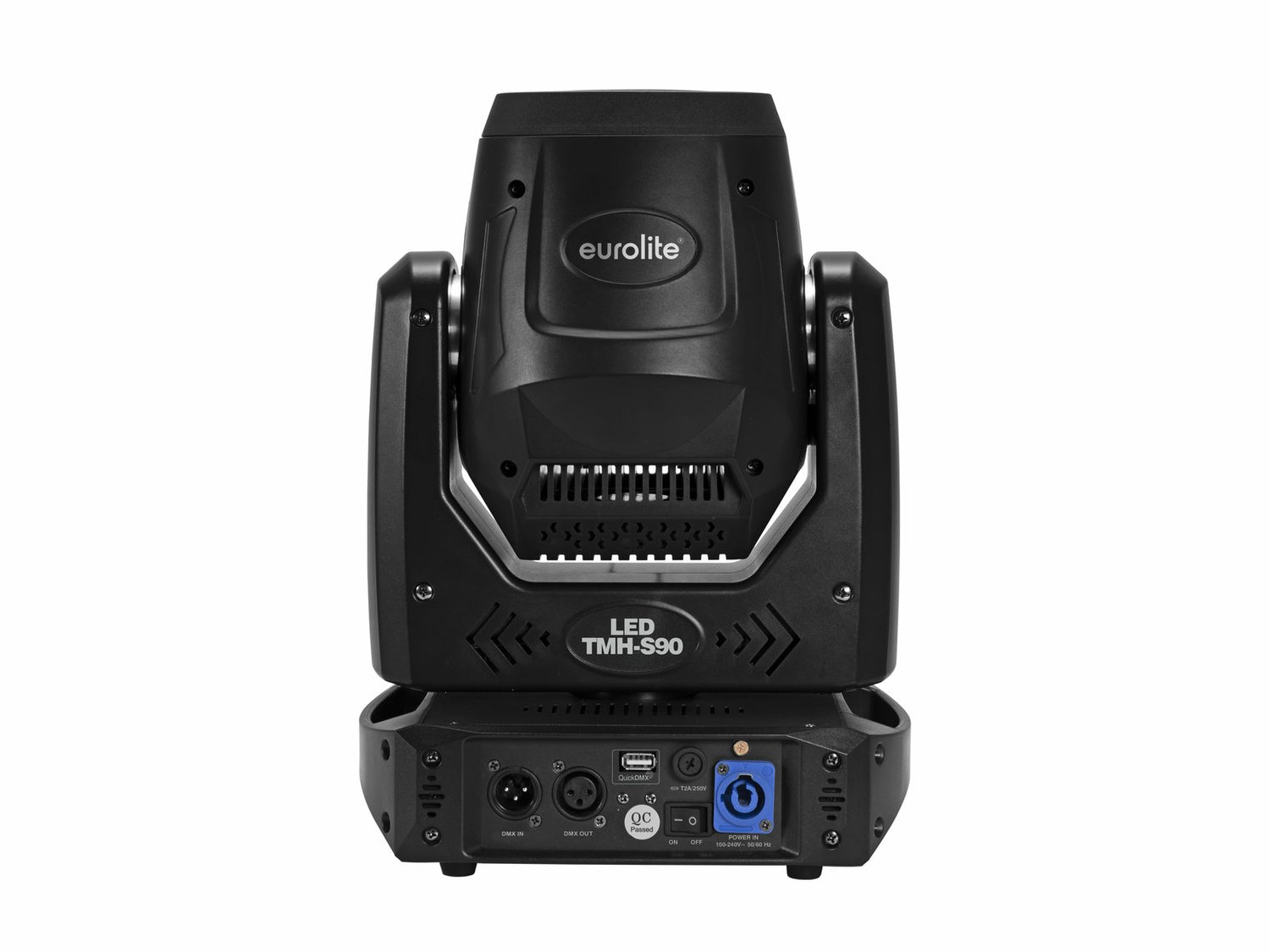

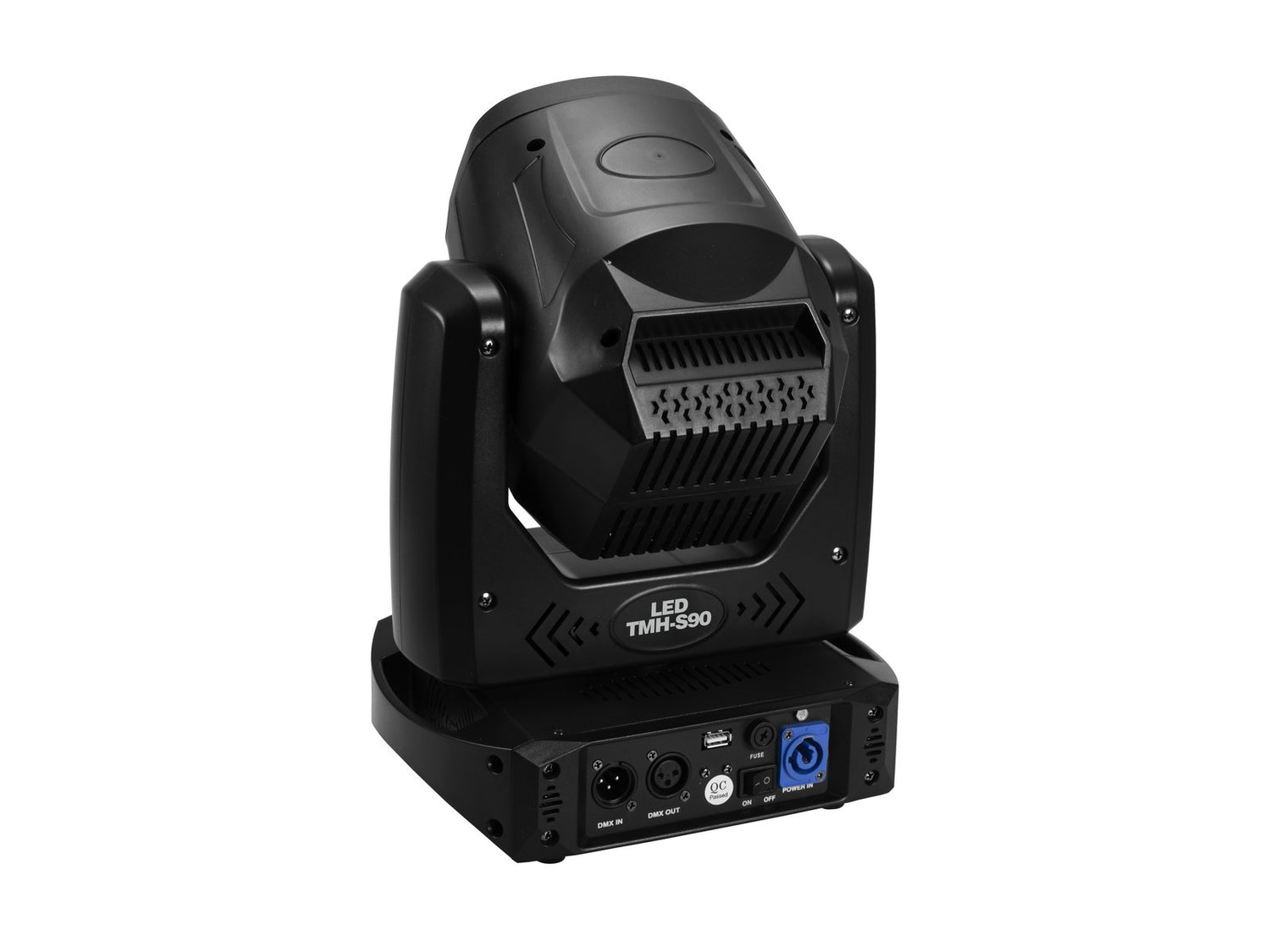

• DMX input: 3-pin XLR (M) mounting version
• DMX output: 3-pin XLR (F) mounting version
• Cooling: Cooling fan
• Control: DMX; Sound to light via Microphone; stand-alone; Master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional)
• Preprogrammed in: EASY SHOW 1; Light Captain; EASY SHOW 3
• Projection: Flicker-free

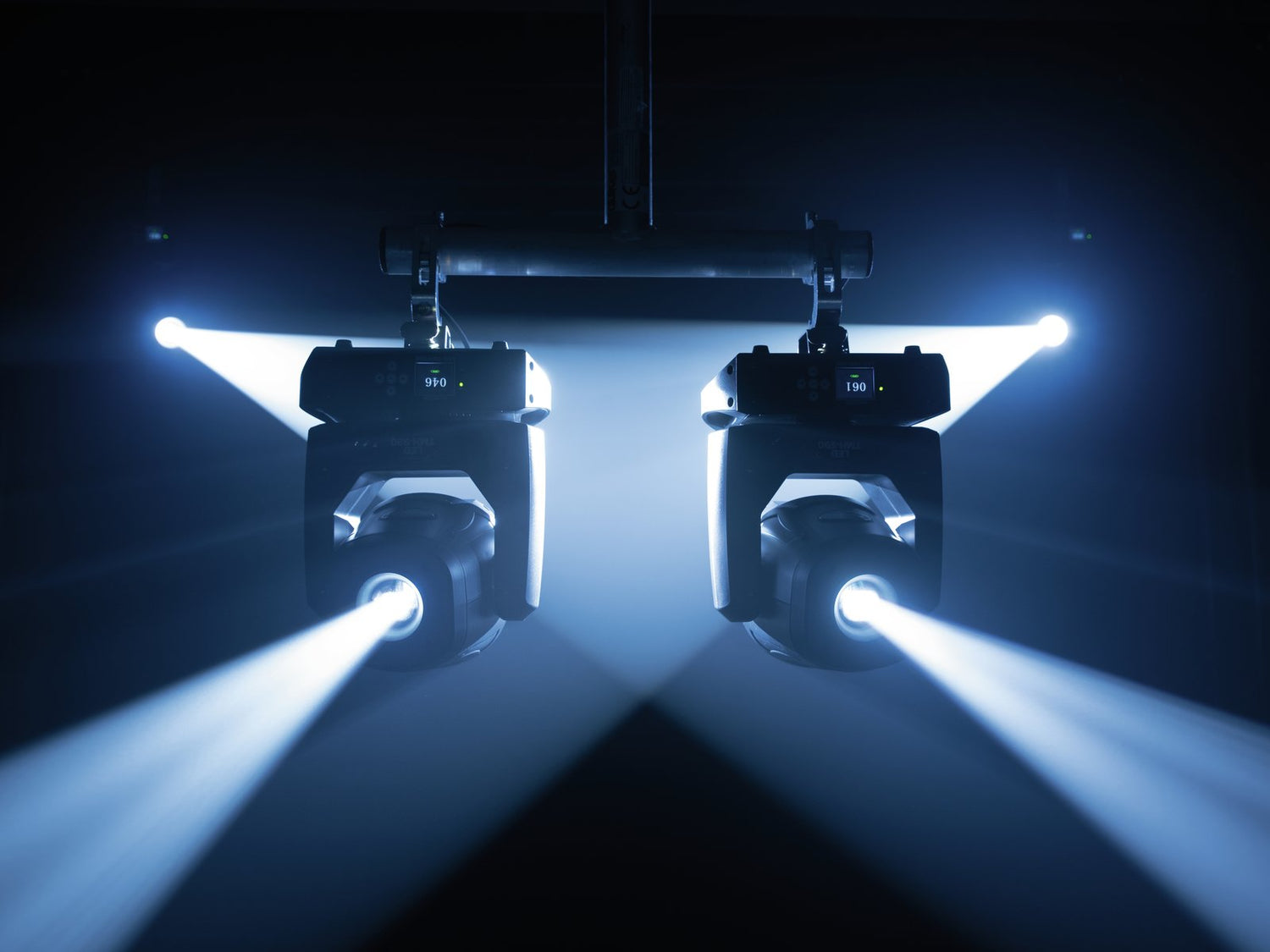

• Beam angle: 12°
• Beam angle (1/2 peak): 12°
• Illuminance in Lux (lx): Cold white (CW) 1m: 52772 lx, 3m: 6198 lx, 6m: 1543 lx
• Housing color: Black

Color generation:

• Color wheel with 7 dichroic filters plus open
• Half colors selectable, Rainbow effect with adjustable speed in both directions

Gobos:

• Gobo wheel with static gobos, 6 gobos,1 multi color gobo and open
• Shake effect
• Gobo wheel with rotating gobos, 6 gobos and open
• Outside diameter 21,8mm
• Image diameter 16mm
• Shake effect
• Gobos changeable
• Slot-in gobo system for easy gobo replacement

Dimensions:

• Width: 25,0 cm
• Depth: 20,5 cm
• Height: 35,0 cm
• Weight: 6,20 kg

Legal specifications:

• Special product: Not designed for household room illumination
• Intended use: Show effect lighting

Downloads

• Eurolite LED TMH-S90 Moving Head Spot Manual
