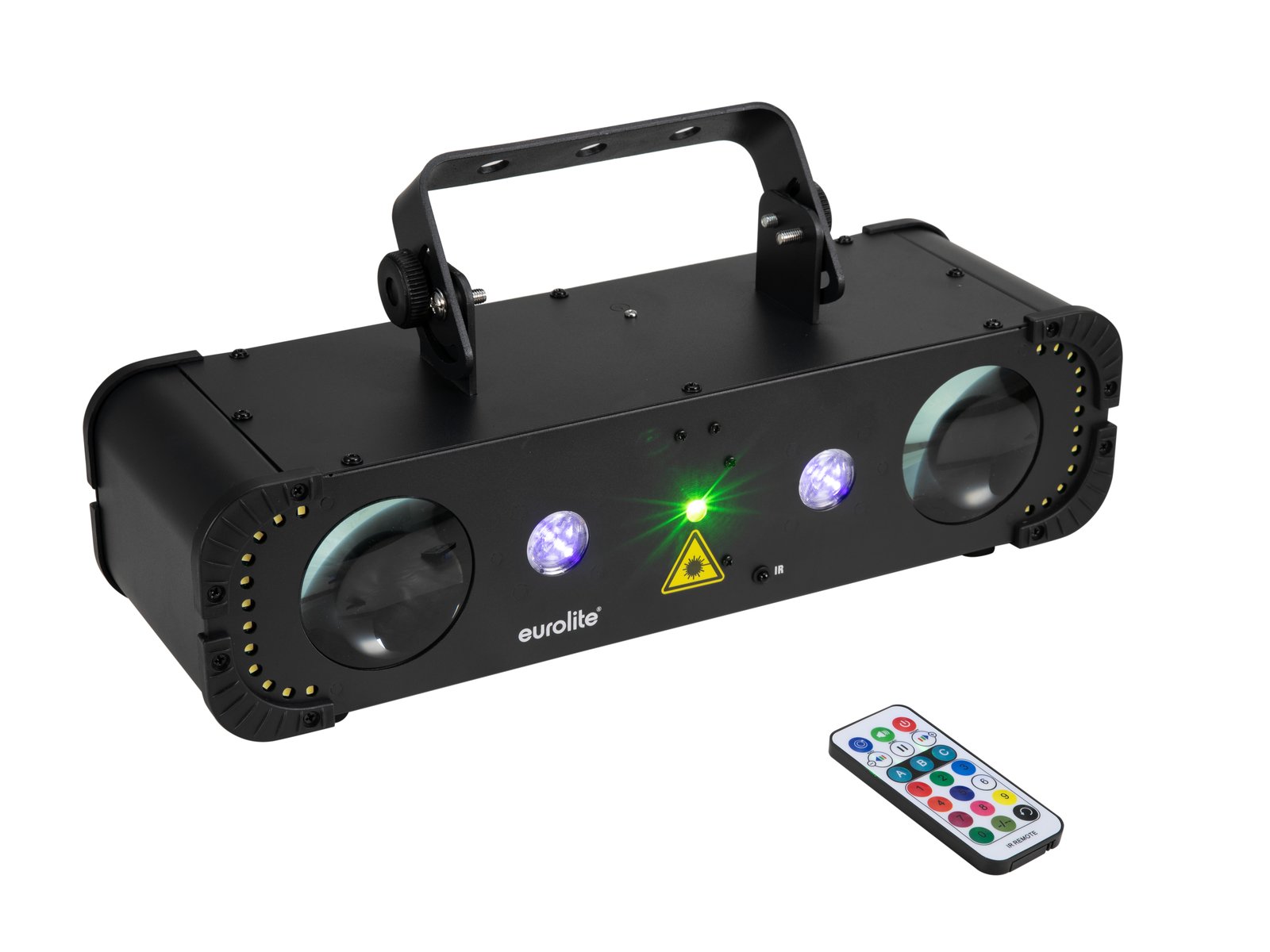

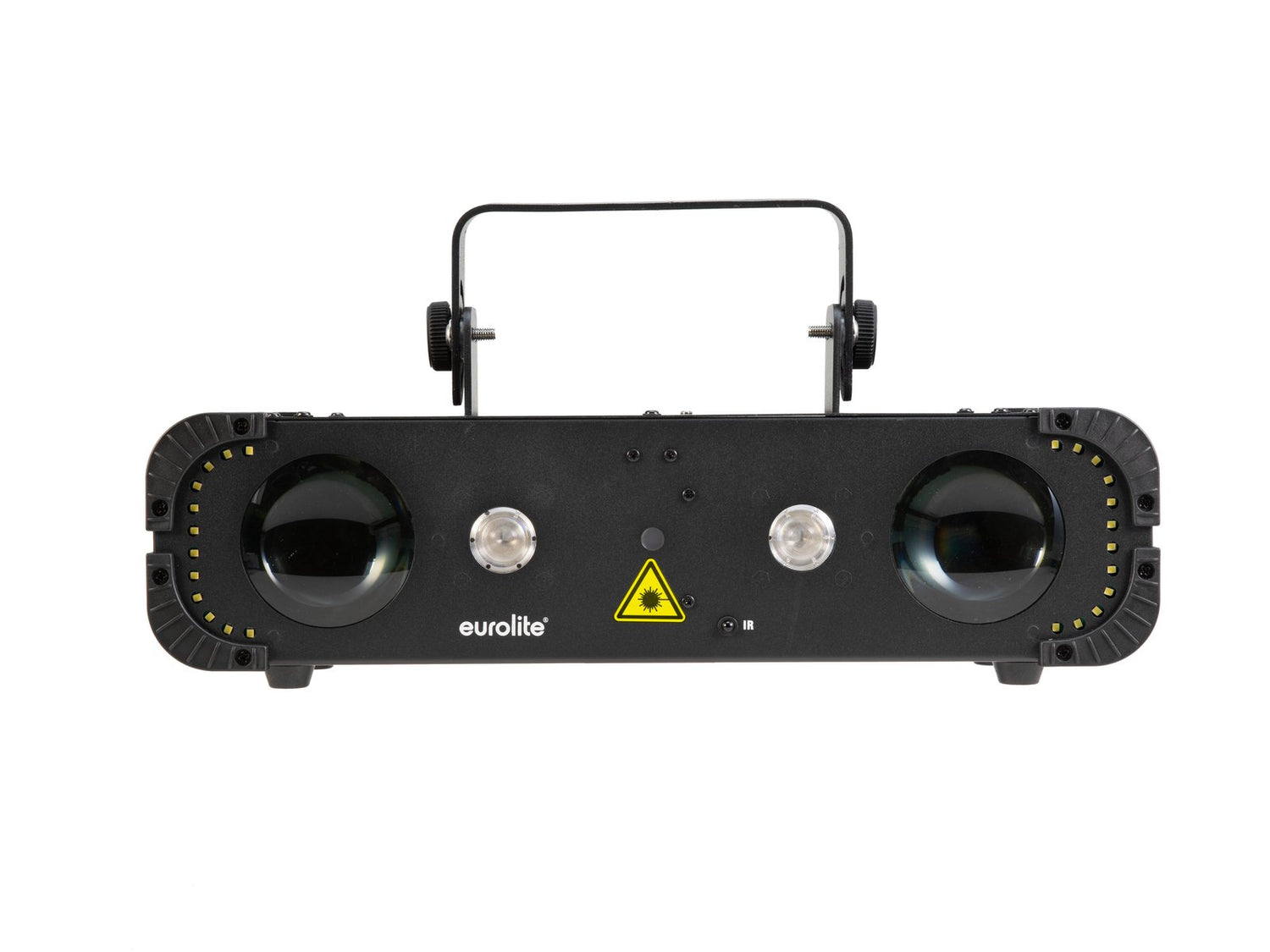

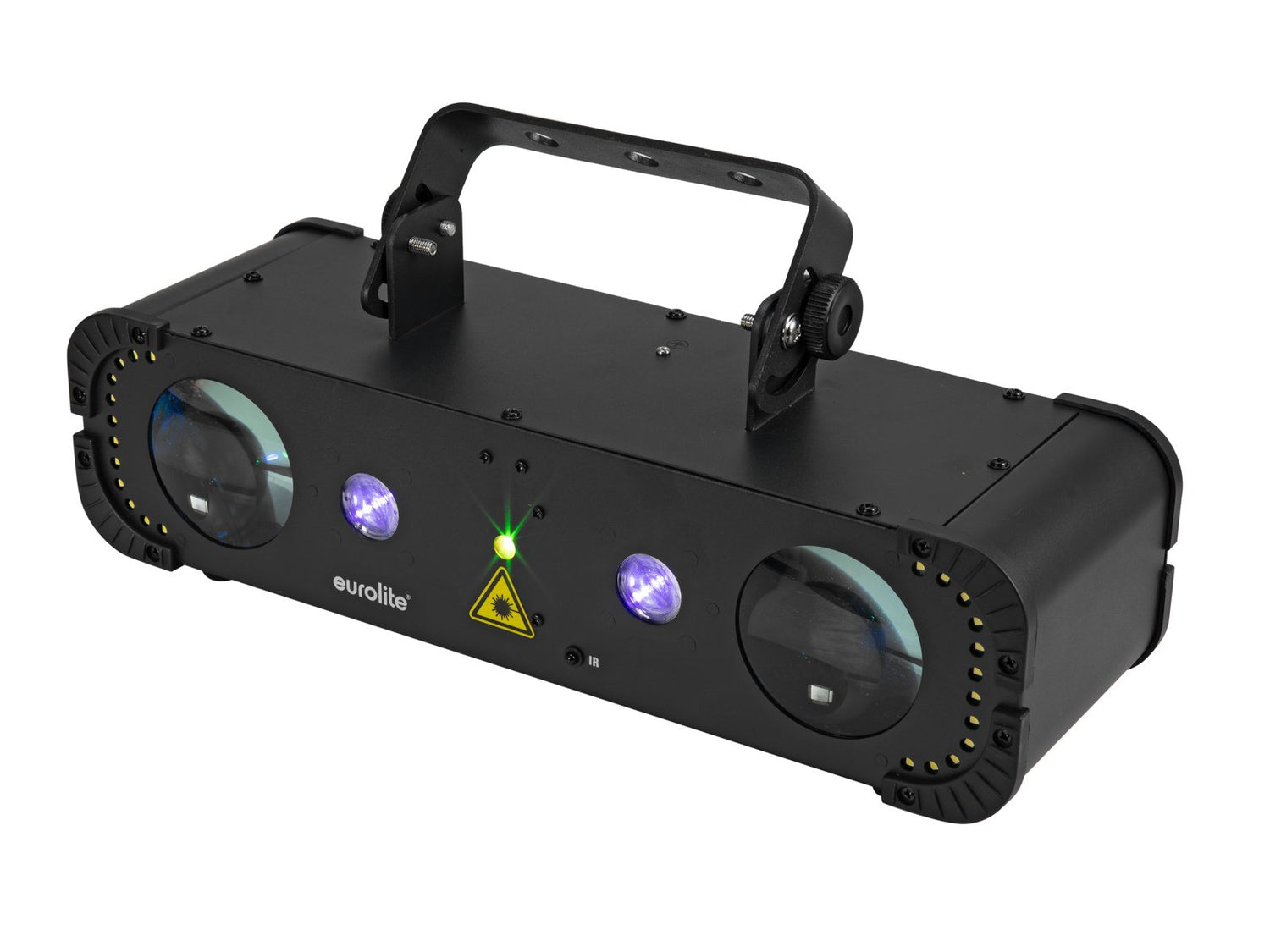

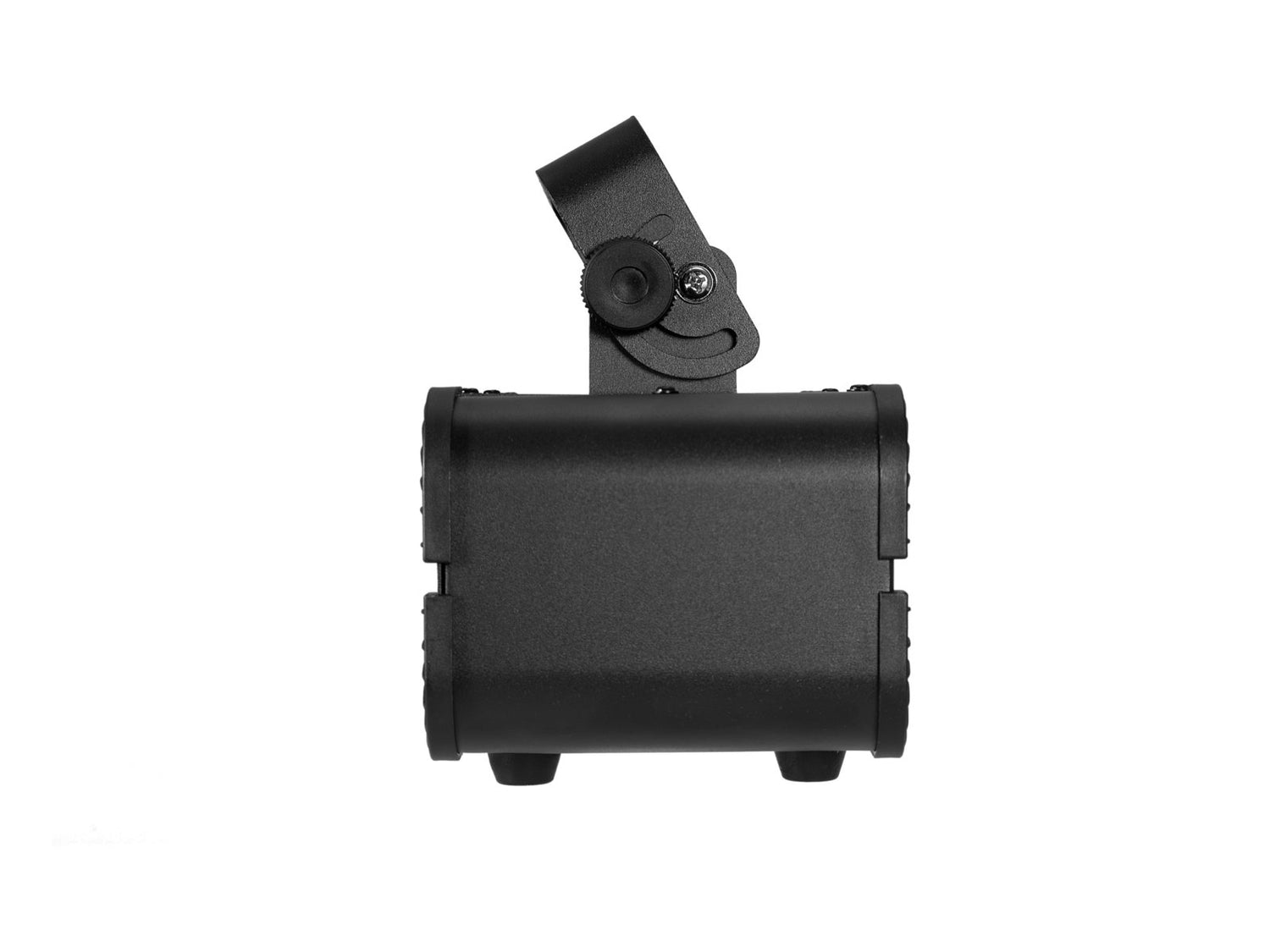

Eurolite LED Compact Multi FX Laser Bar

• 2 laser diodes project thousands of red and green laser beams
• Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
• Matrix, blacklight, laser and strobe can be controlled individually
• Mains input and output for power linking up to 8 units
• 24 powerful LEDs 0,5 W SMD cold white (CW)
• 2 powerful LEDs 3 W high-power ultra violet (UV)
• 128 powerful LEDs 5 mm R/G/B/W/A
• 14 integrated Showprograms
• Can be operated in 2; 5; 8; 10 CH mode
• The device is cooled by cooling fan
• Controlling by DMX; IR remote control; stand-alone; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Preprogrammed in Light Captain
• Effect: Multi beam effect; flower effect; Strobe effect; UV effect; laser
• With Mounting bracket
• Monochrome 4 digits 7-segment LED display for easy controlling

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 30 W
• IP classification: IP20
• Protection class: Protection class I

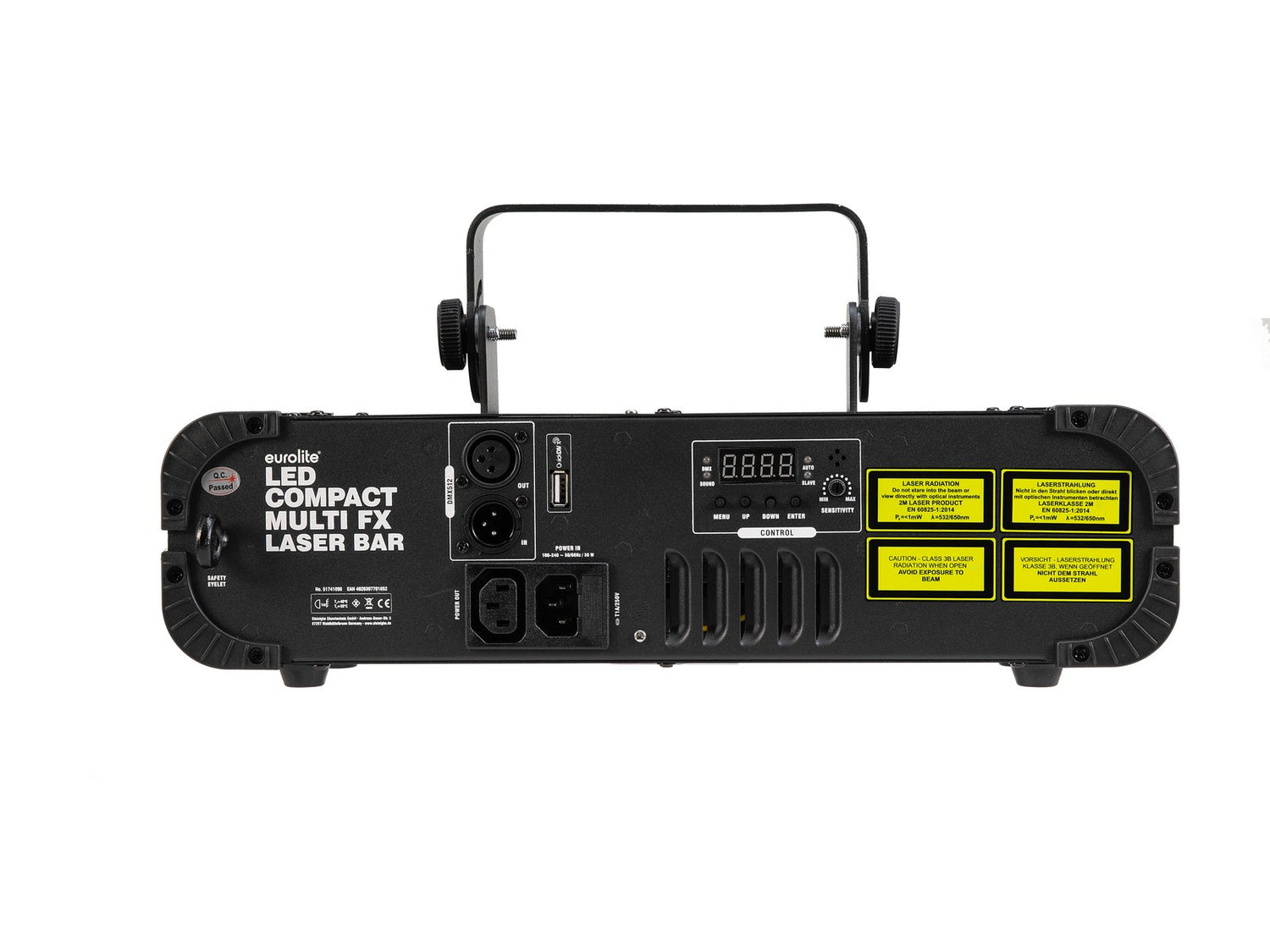

• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• Power output: 1 x IEC connector (F) mounting version
• Fuse: 5 x 20 mm, T 1 A Fuse replaceable
• Lamp type: LED lamp
• DMX channels: 2; 5; 8; 10
• DMX input: 1 x 3-pin XLR (M) mounting version
• DMX output: 1 x 3-pin XLR (F) mounting version
• Cooling: Cooling fan
• Control: DMX; IR remote control; stand-alone; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Preprogrammed in: Light Captain; Light´J
• Housing color: Black
• Attachment system: Mounting bracket
• Display type: Monochrome 4 digit 7-segment LED display

Dimensions:

• Length: 40,5 cm
• Depth: 20 cm
• Height: 14,5 cm
• Weight: 2,85 kg
• Noise classification: Class 1 (very slight noise, suitable for noise-sensitive environments)

Laser:

• Laser class: 2M
• Laser color: R/G
• Laser module: Red (R) 100 mW 650 nm
• Green (G) 30 mW 532 nm

Spotlight:

• LED: 2 x 3 W high-power ultra violet (UV)

Light effect:

• LED: 128 x 5 mm R/G/B/W/A

Strobes:

• LED: 24 x 0,5 W SMD cold white (CW)

Remote control:

• Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in

Downloads:

• Manual
