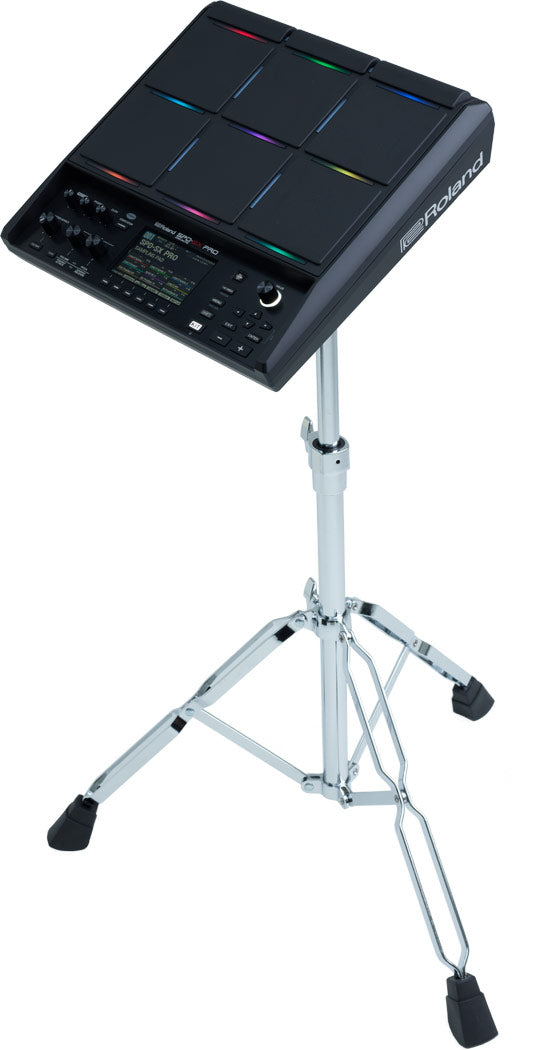

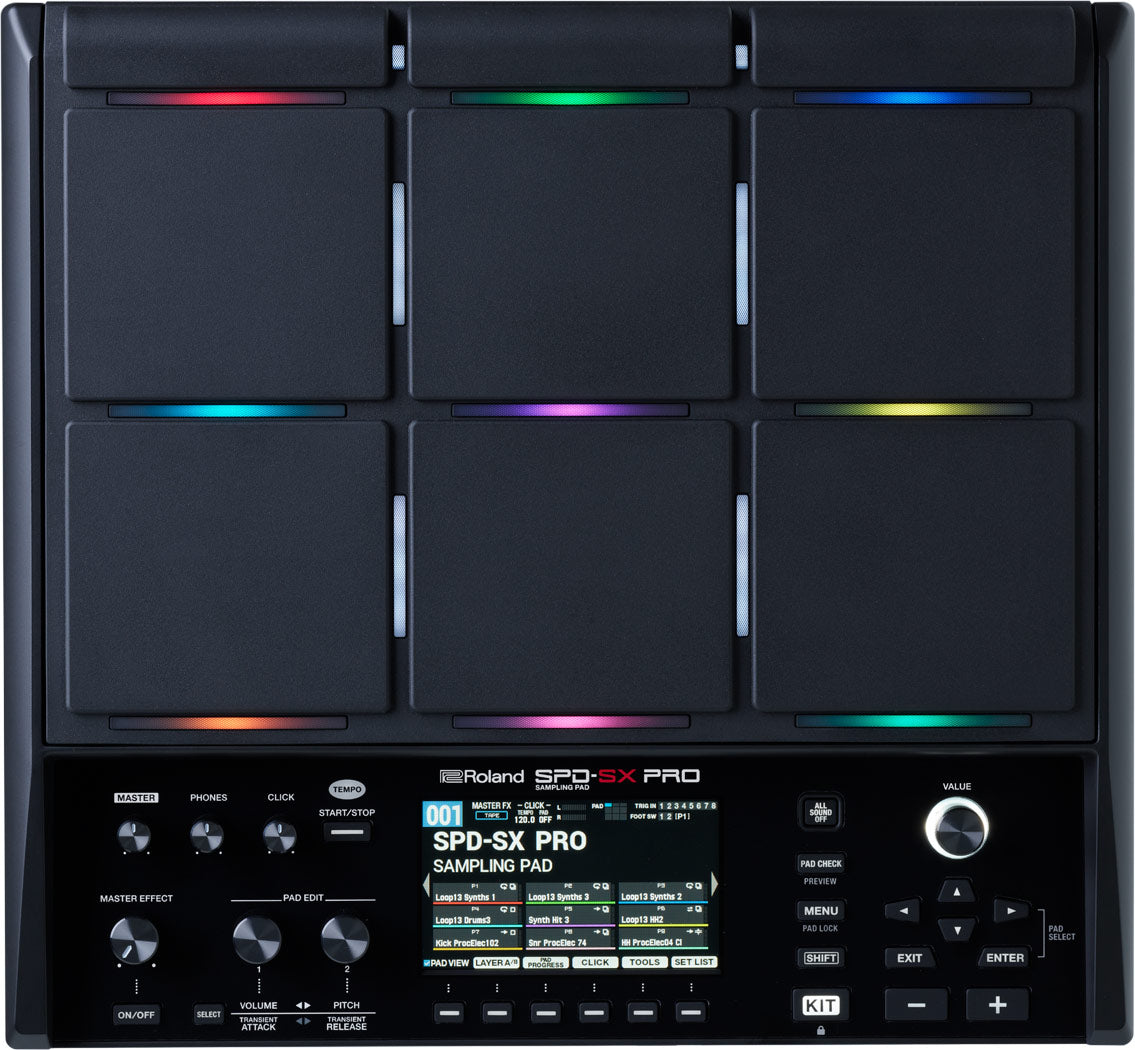

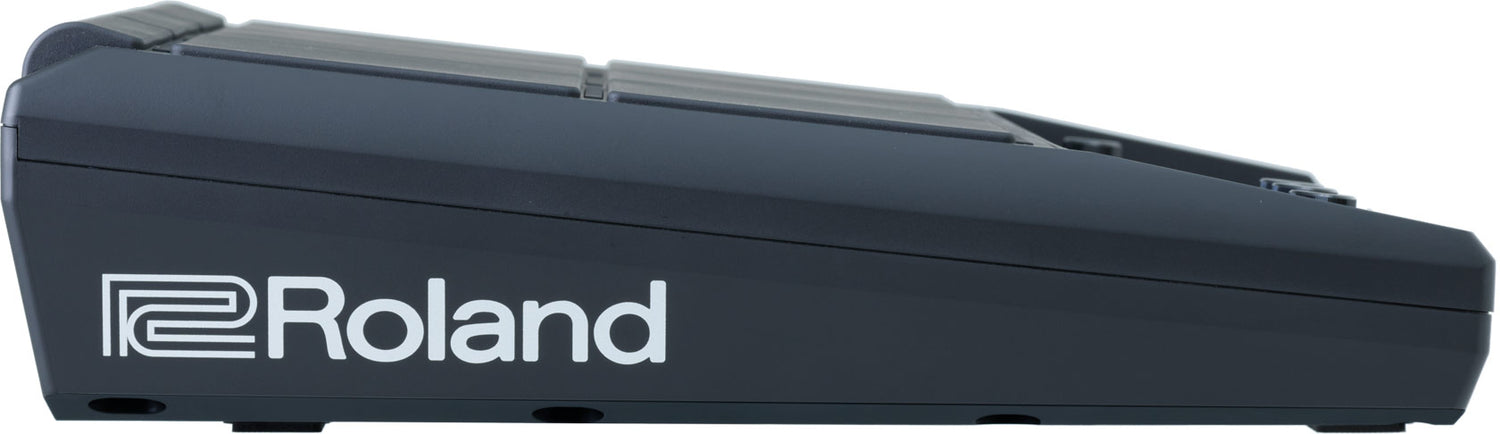

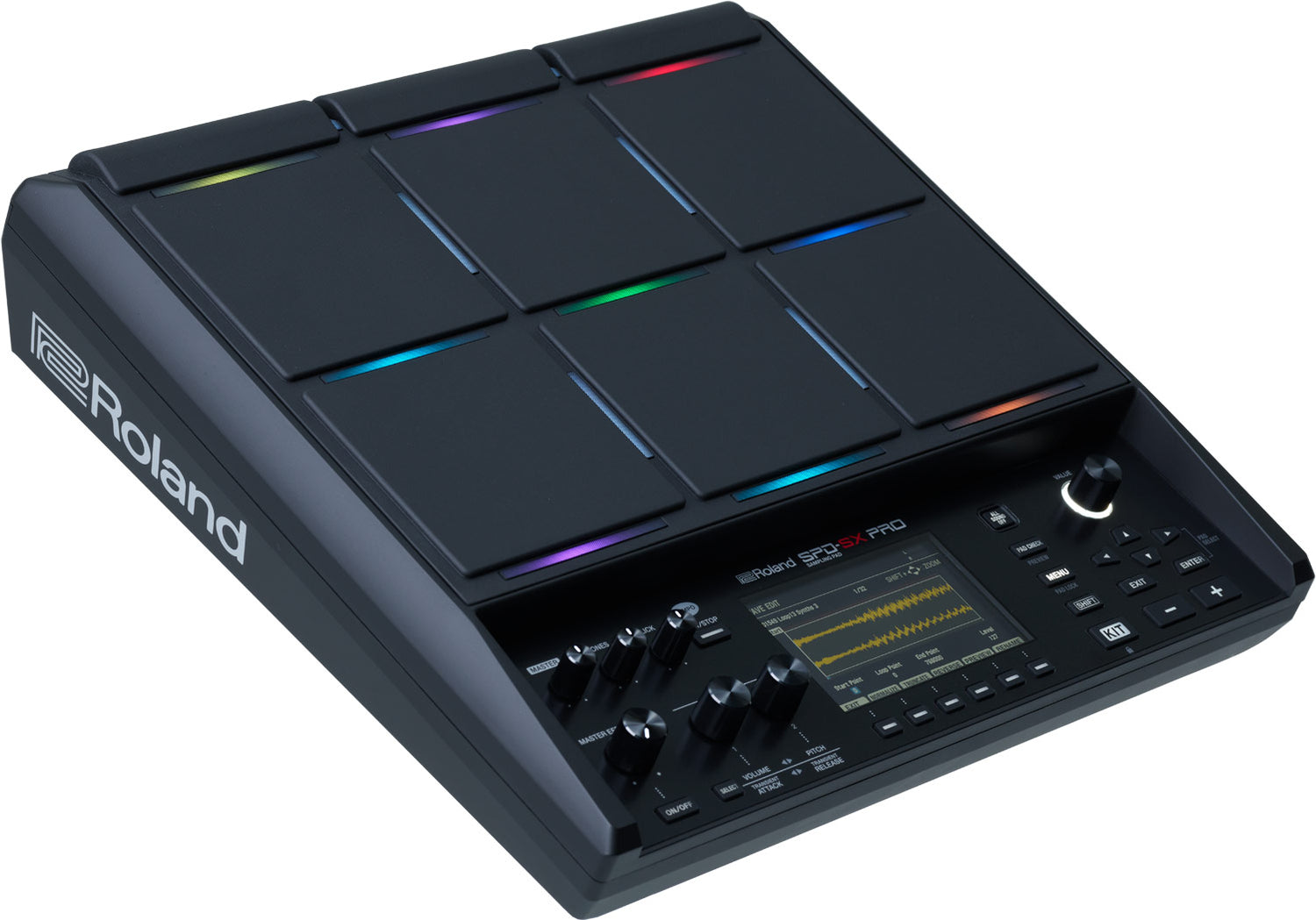

Roland SPD-SX Pro Sampling Pad

• 9 pads med Rolands avancerede trigger-teknologi
• Horisontale og vertikale LED lysenheder
• 4,3" farveskærn
• 1 stereo output og 4 mono outputs
• 8 trigger-inputs
• 32 GB intern hukommelse
• Op til 200 kit-patches
• Indbyggede effekter (delay, reverb, sidechain mm.)
• Den ultimative sampling pad

Roland SPD-SX Pro Sampling Pad

Alt hvad du kender fra SPD SX'en bare større, hurtigere og bedre - Rolands nye flagskib er landet

• Ni af Rolands avancerede pads med forbedret dynamics/velocity på de tre "shoulder-pads"
• Med de nye horisontale samt vertikale LED-enheder er det slut med ikke at kunne se SPD'ens pads på mørke scener.
• 4,3" farveskærm med intuitivt interface.
• Stereo output samt 4 balancerede mono outputs.
• Tilslut op til 8 externe triggerpads (4 stereo eller 8 mono m. splitkabel).
• Det er lettere at importere og redigere samples end nogensinde med den nye SPD-SX PRO app til Windows/Mac.
• 32 GB intern hukommelse.
• Nyt input dedikeret til footswitch expression-kontrol eller hihat.
• Op til 200 kit-patches (43 preset kits, der kan slettes samt 157 "user kits").
• Kommer med over 1550 højkvalitets lyde og samples.
• Ny 16-step pad sequencer funktion.
• Med indbygede effekter som delay, reverb og sidechain har du talrige processerings-muligheder.
• Den ultimative sampling pad til de mest krævende jobs.

Pads

Built-in pads: 9
(with PAD LED, Vertical LED)
* Four external trigger inputs are provided, allowing you to connect up to eight pads with Y cable.

Maximum Polyphony

32 voices (included click voices)

Number of Recordable Wave Data

20,000
*Including preload data

Internal storage Size

32 GB *Including preload data

Sampling Time

Sampling from AUDIO IN : 60 minutes per sample
Resampling : 10 minutes per sample

Data Format

16-bit linear

Sampling Frequency

48 kHz

Import Format

WAV, AIFF, MP3

Kits

200

Preload wave

Factory preloaded samples: 1,550 or more

Setlist

32 (32 steps per SET LIST)

Kit Effects

Layer Equalizer : each pad (Layer A/B independently)
Layer Transient : each pad (Layer A/B independently)
Multi-Effects (53 types) : 4 systems
Side Chain Compressor : 1 system

System Effects

Master Effects (53 types)
Master Compressor
Master Equalizer

Number of USB Audio Record/Playback Channels

Sampling Rate (Original): 48 kHz
Sampling Rate (with Sampling rate converter): 96 kHz, 44.1 kHz
Record: 8 channels
Playback: 12 channels

Display

Graphic color LCD 4.3 inch

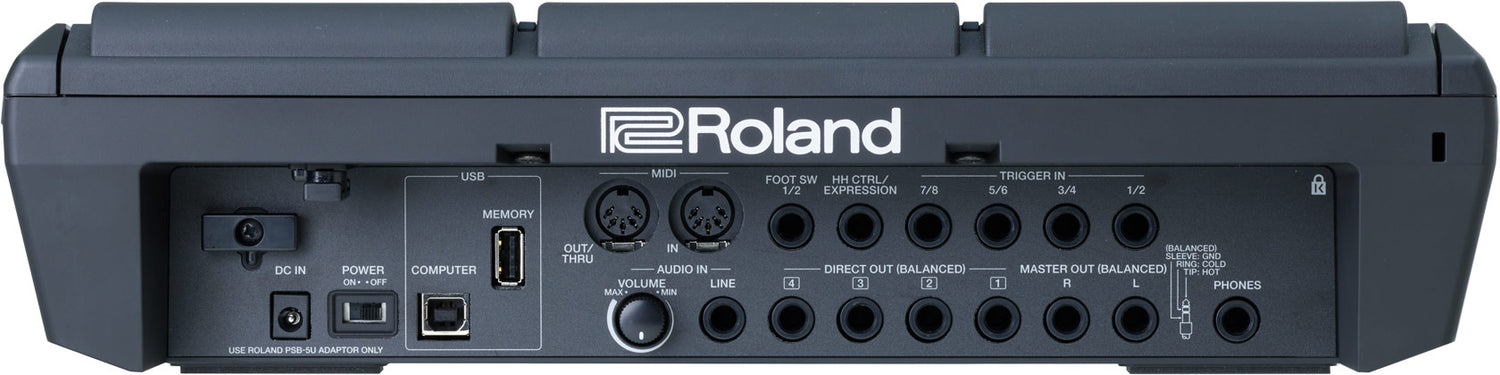

Connectors

PHONES jack : Stereo 1/4-inch phone type
MASTER OUT (L, R)jacks (BALANCED) : 1/4-inch TRS phone type
DIRECT OUT jack x 4 (BALANCED) : 1/4-inch TRS phone type
AUDIO IN jack : Stereo 1/4-inch phone type (with Volume control)
TRIG IN jack x 4 (1/2, 3/4, 5/6, 7/8) : 1/4-inch TRS phone type
FOOT SW jack x 1 (1/2) : 1/4-inch TRS phone type
HH CTRL/EXPRESSION jack x 1 : 1/4-inch TRS phone type
MIDI (IN, OUT/THRU) connectors
USB COMPUTER port : USB B (High-Speed USB, USB-AUDIO, USB-MIDI, App)
USB MEMORY port : USB A (High-Speed USB, Backup Save/Load, Sample Import/Export)
DC IN jack

Power Supply

DC 12V (AC Adaptor)

Current Draw

1,500 mA

Accessories

Quick Start
Leaflet "Read Me First"
Leaflet "USING THE UNIT SAFELY/IMPORTANT NOTES"
AC Adaptor

Options (sold separately)

Pads (PD series, PDX series, BT-1)
Cymbals (CY series) Hi-Hat (VH-10, VH-11)
Kick Triggers (KD series, KT series)
Pad Stand (PDS-20, PDS-10)
All-Purpose Clamp (APC-33)
Acoustic Drum Trigger (RT-30K, RT-30HR, RT-30H)
Hi-Hat Pedal(FD-8, FD-9, VH-10, HV-11)
Expression Pedal(BOSS EV-30)
Pedal Switch(DP-2)
Foot Switch (BOSS FS-5U, FS-6, FS-7)
Y cable (PCS-31L)
USB Flash Memory

Width

360 mm 14-3/16 inches

Depth

330.3 mm 13-1/16 inches

Height

92.9 mm 3-11/16 inches

Weight

3.0 kg 6 lbs 10 oz (excluding AC Adaptor)
