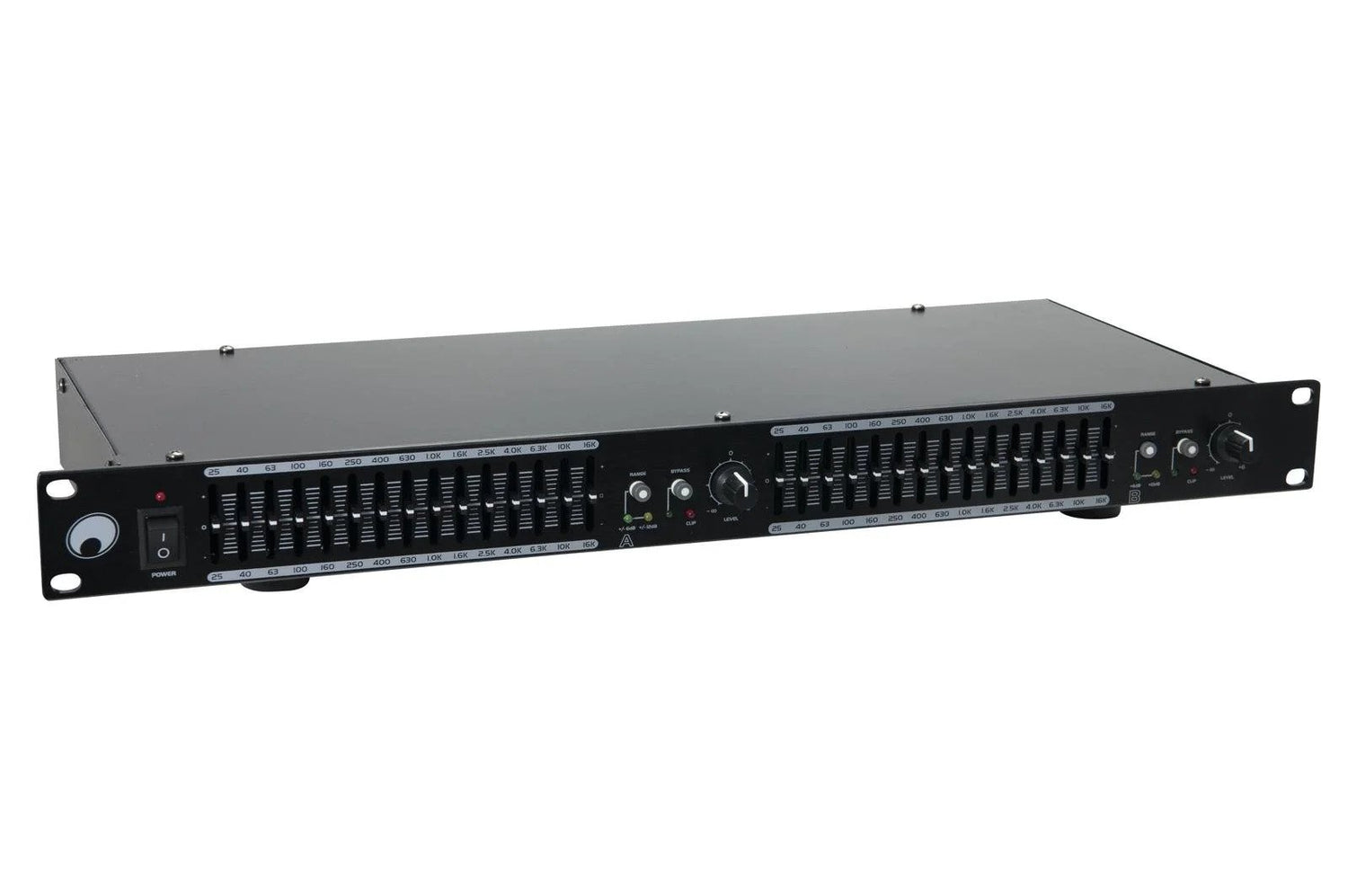

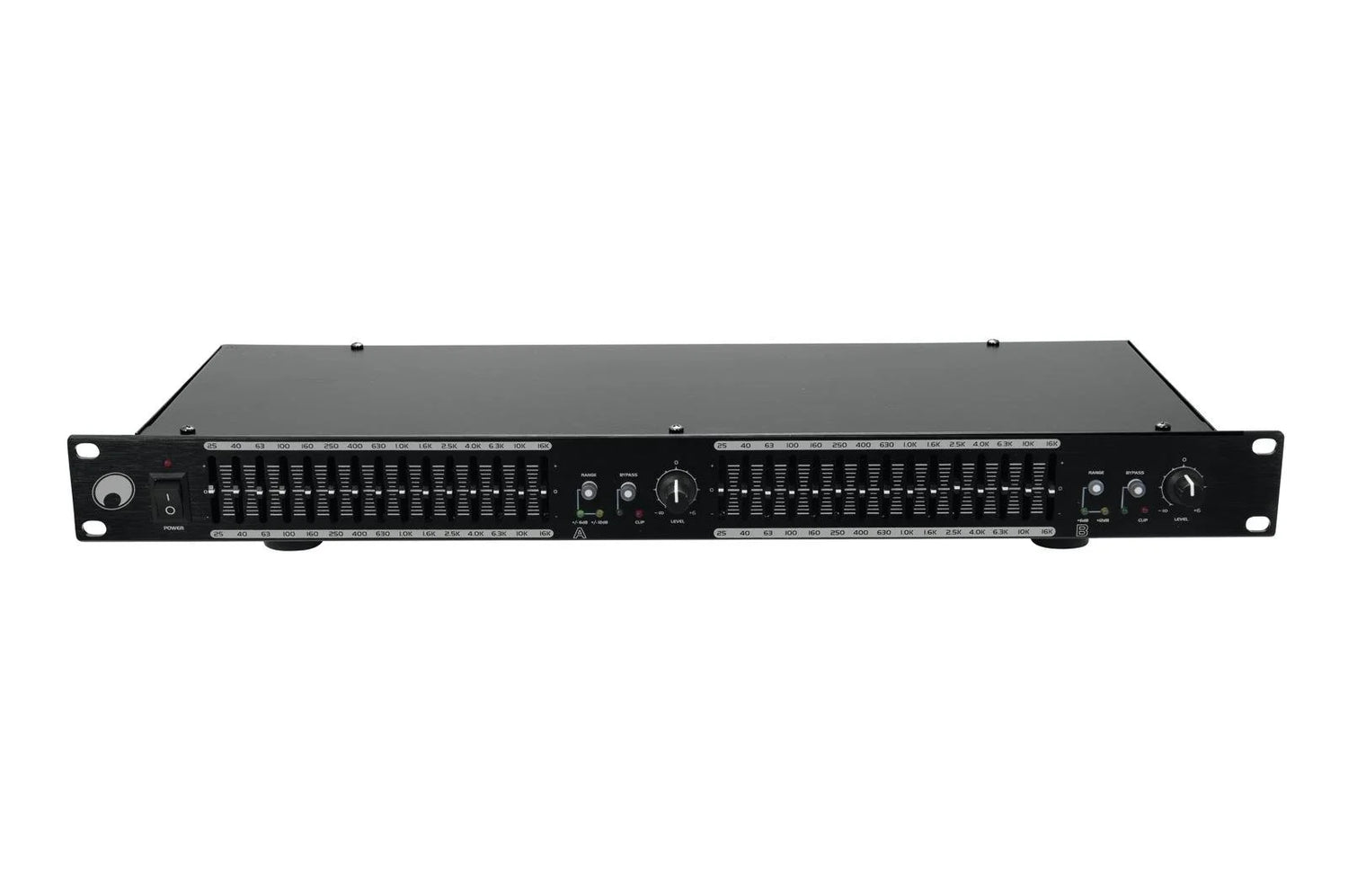

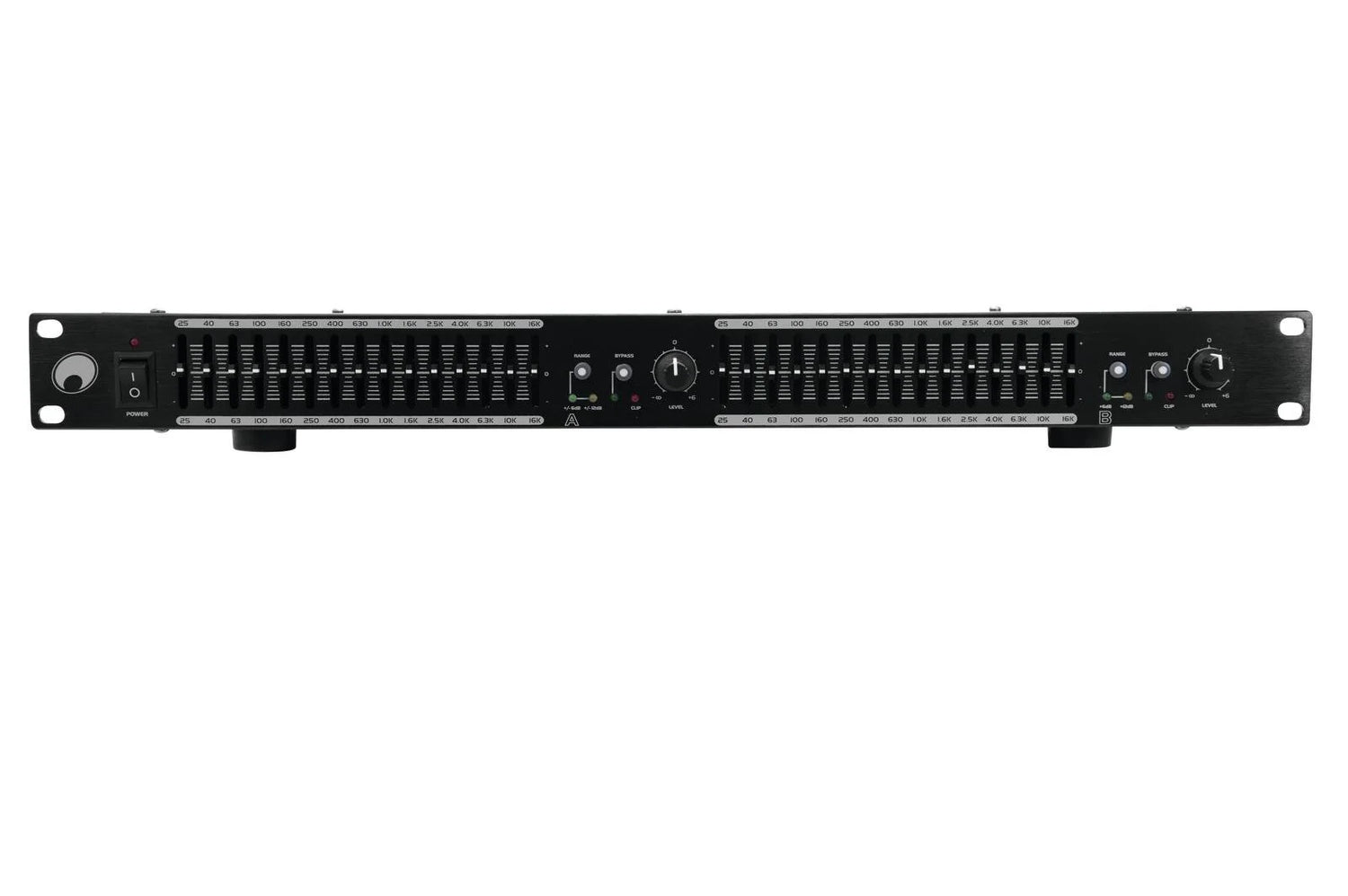

Omnitronic GEQ-2150 2x 15 Bånd Grafisk Equalizer

OMNITRONIC GEQ-2150 Equalizer 2x15-Band er en professionel 2 kanals 15 bånd equalizer.

GEQ-2150 Equalizer 2x15-Band har både balancerede XLR og Jack tilslutninger

• 2-channel version, 2 x 15 frequency controls with 2/3 octave steps
• Short sliding frequency controls with center click
• EQ gain switchable ±6 dB to ±12 dB
• Separate level control per channel
• Bypass switch allows instant comparison of the original sound with the equalized sound
• Clip indicator
• Inputs and outputs via 6.3 mm jack sockets and XLR sockets
• Groundlift switch
• Housing design: (19") 48.3 cm rack installation 1 U

• Power supply:	230 V AC, 50 Hz
  Power consumption:	13 W
  Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
  Frequency range:	20 - 20000 Hz
  S/N ratio:	>96 dB
  Impedance:	Input 20 kOhm , bal.
  	Input 15 kOhm , unbal.
  	Output 300 kOhm , bal.
  	Output 150 kOhm , unbal.
  Gain:	Output: - ∞ to + 6 dB
  Equalizer:	master: 2 x Graphic equalizer 15-band centre frequency: ISO standard, 2/3 octave, 25/40/63/100/160/250/400/630 Hz, 1/1,6/2,5/4/6,3/10/16 kHz
  Control range:	±6dB, ±12dB, switchable

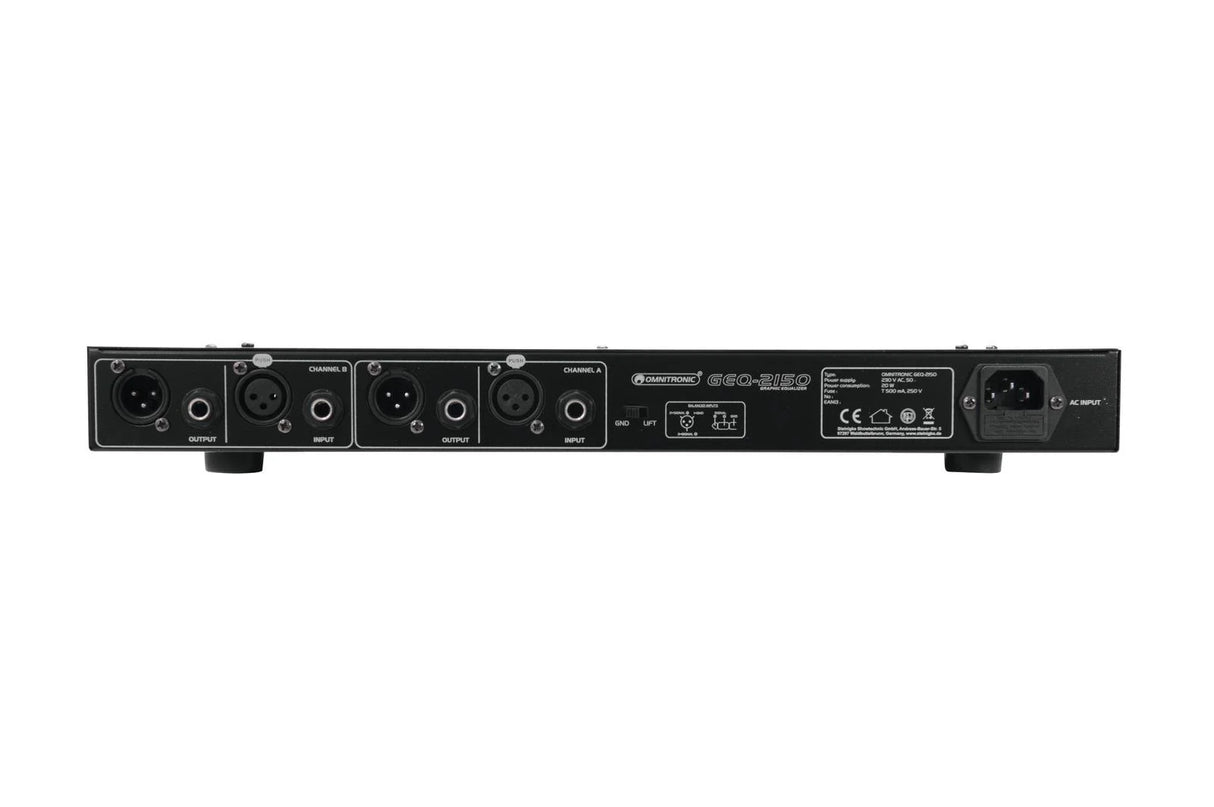

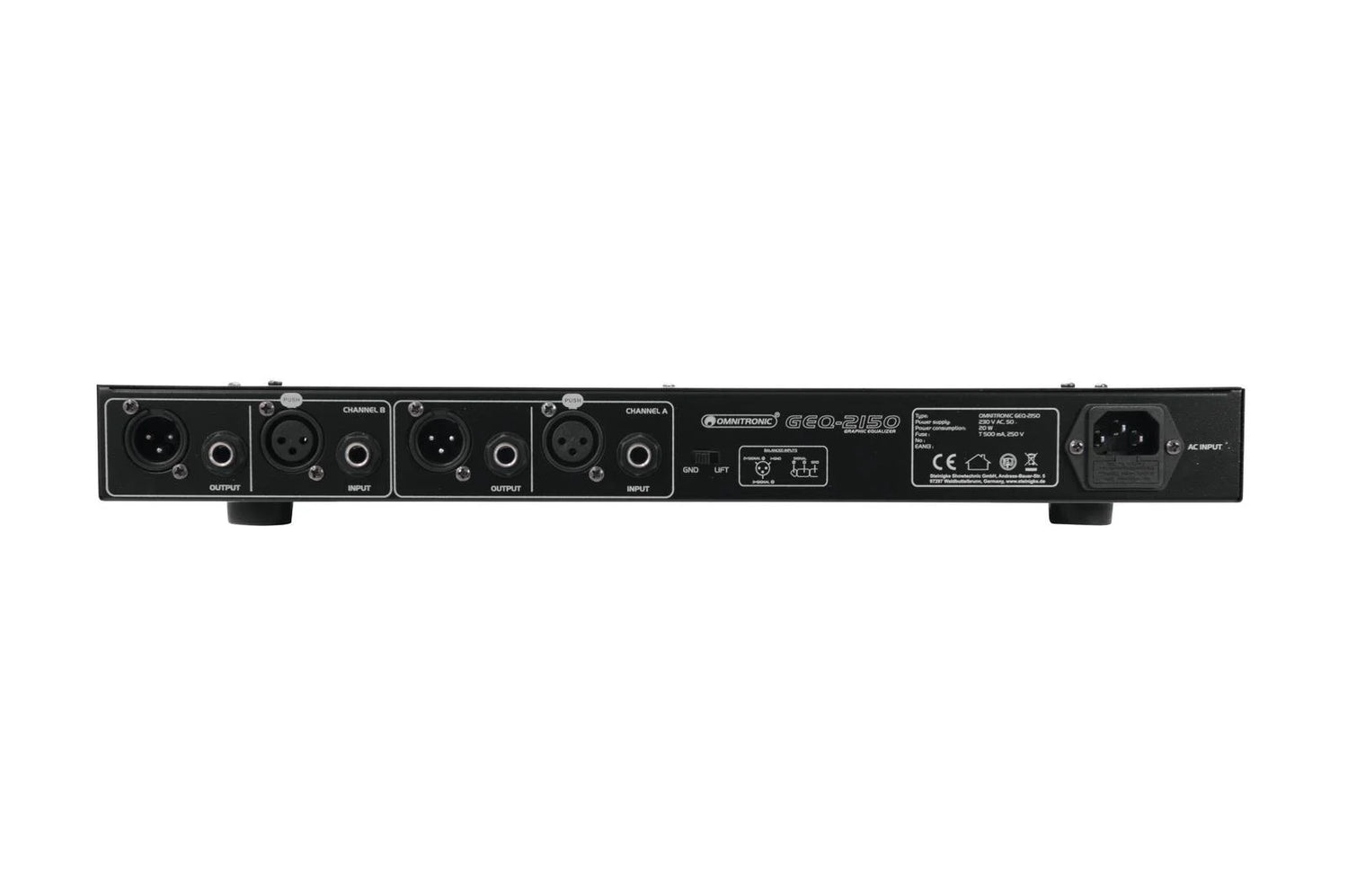

  Connections:	Input: 2 x line via 3-pin XLR
  	Input: 2 x line via 6.3 mm plug (unbal.)
  	Output: 2 x line via 3-pin XLR
  	Output: 2 x line via 6.3 mm plug (unbal.)
  Max. level:	Input: +24 dBu, bal.
  	Input: +18 dBu, unbal.
  	Output: +24 dBu, bal.
  	Output: +18 dBu, unbal.
  Distortion:	<0.05 %
  Housing design:	(19") 48.3 cm rack installation 1 U
  Width:	48.3 cm
  Height:	4.45 cm
  Depth:	22 cm
  Weight:	2.40 kg
