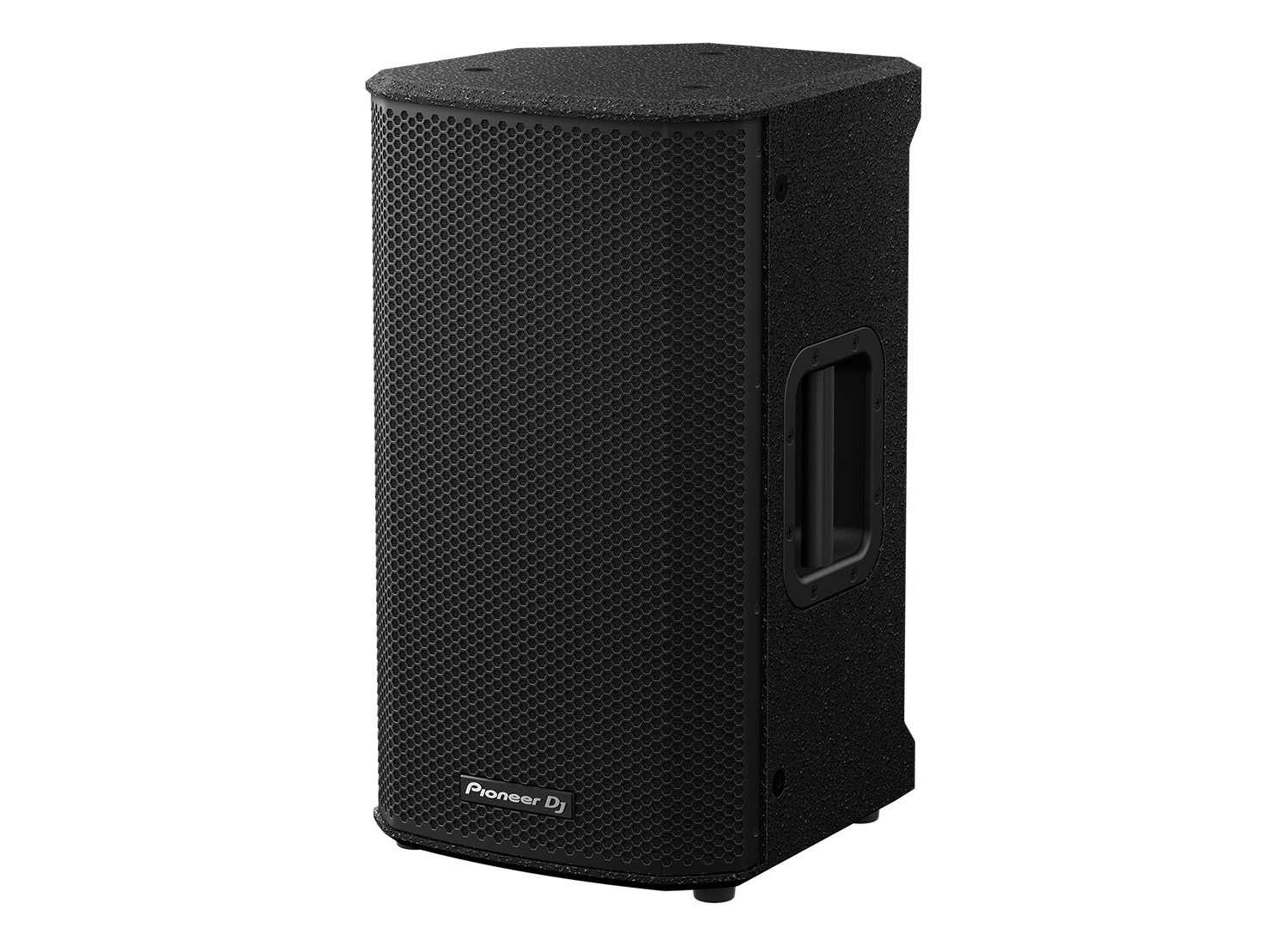

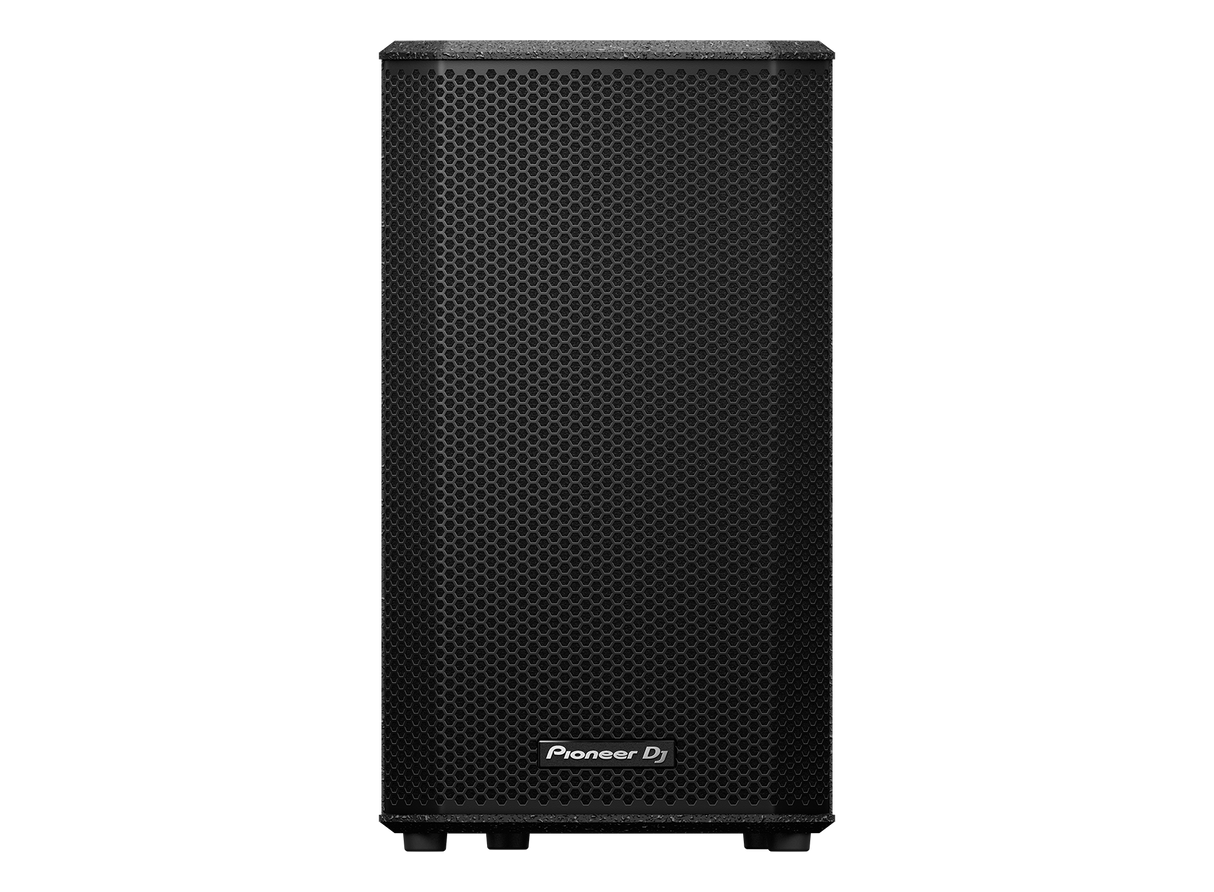

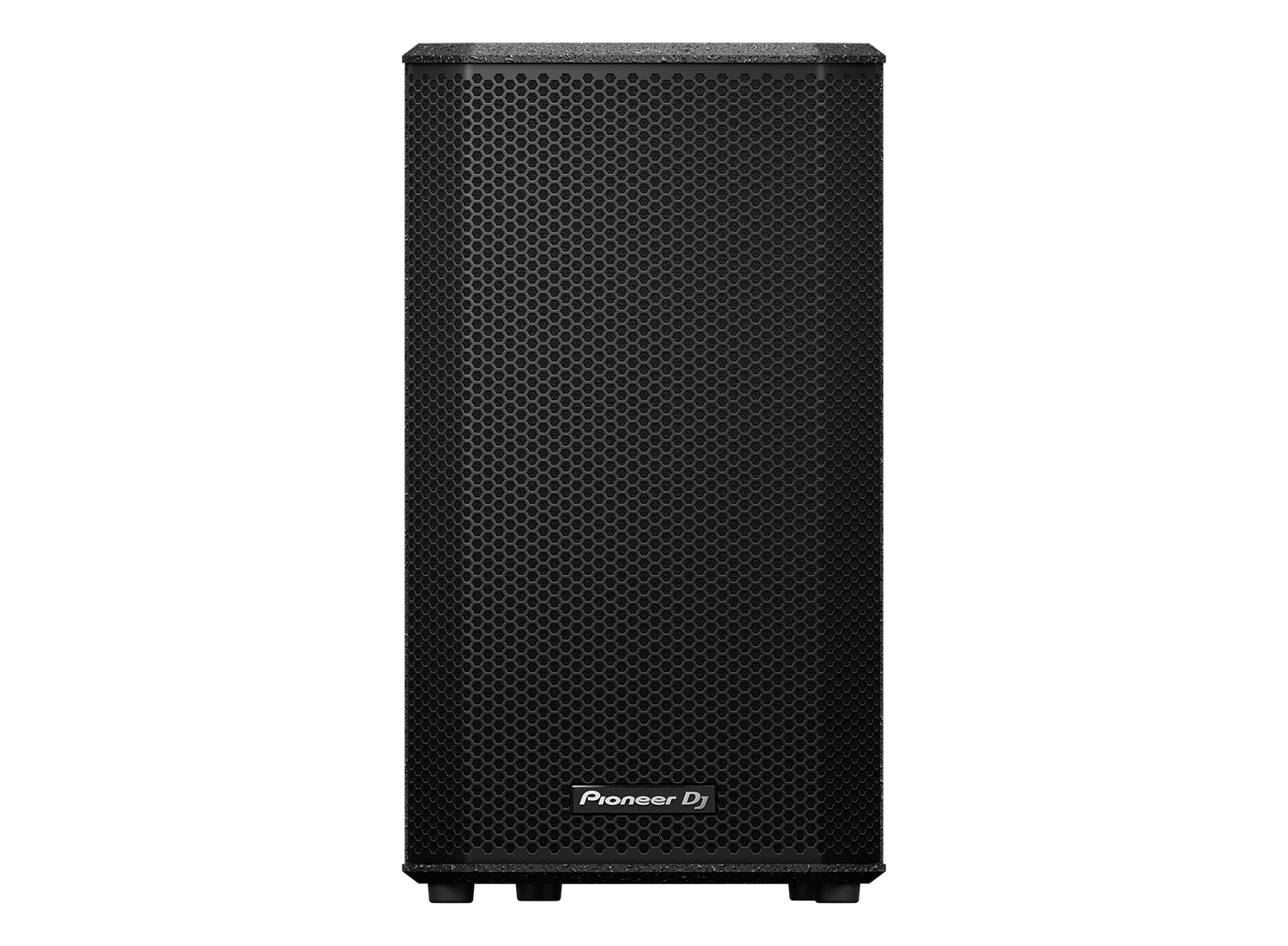

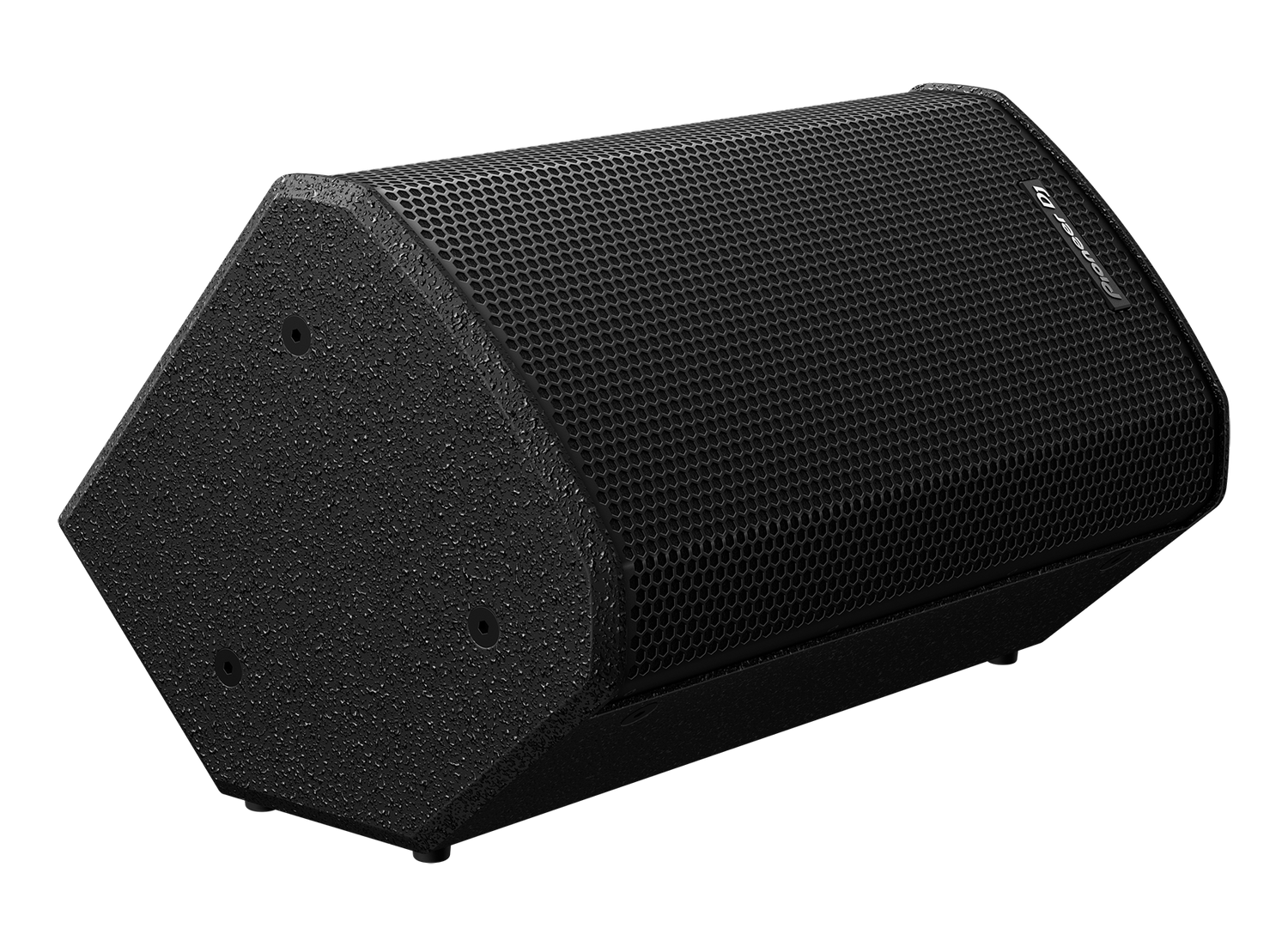

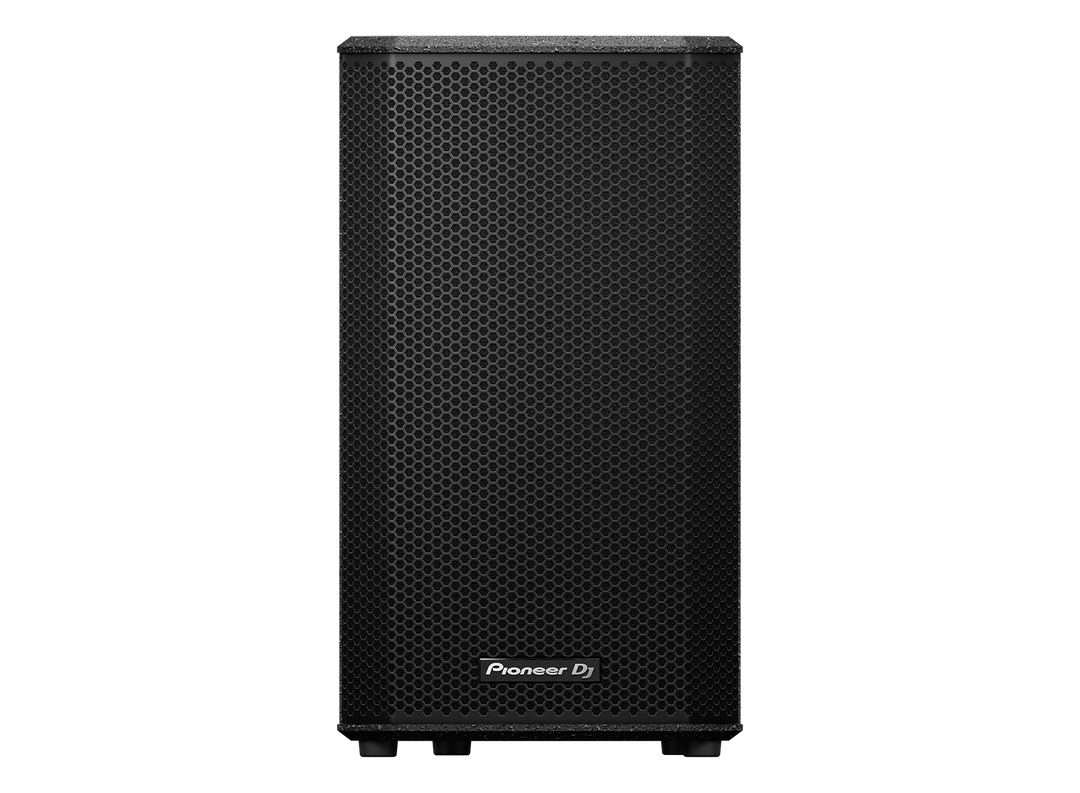

Pioneer DJ XPRS102 Aktiv Højttaler

• 10" full range aktiv højtaler
• 10" woofer
• 2.5" voice coil med en 1" exit compression driver
• 1.75" voice coil
• Superb lydmæssig performance
• SPL)på 129 dB
• Frekvensområde fra 50 Hz op til 20 kHz
• Kraftfuld Class D forstærkning på 2000 W
• 16 User DSP Modes, 4 presets

Pioneer DJ XPRS102 Aktiv højttaler

• 10" full range aktiv højtaler.
• Kombinationen af en 10" woofer, en 2.5" voice coil med en 1" exit compression driver og 1.75" voice coil giver dig en superb lydmæssig performance.
• Max lydstyrke (SPL) på 129 dB, og et frekvensområde fra 50 Hz op til 20 kHz.
• Præcis og klar lydgengivelse.
• Kraftfuld Class D forstærkning på 2000 W.
• 16 redigérbare User DSP Modes, der kan gemmes, udover 4 presets (Live, Music, Speech og Studio Monitoring).
• Robust konstrueret kabinet, der kan klare livet på vejen.

Main Features
Type - 10 inch 2-way active loudspeaker
Amplifier Output - Class D 2000W peak

What's in the box
XPRS102 x 1 (not sold as a pair)

Power d cord
Quick start guide
Important Safety Precautions

Specifications
Supported voltages
110 V to 240 V (50 Hz/60 Hz)

Power consumption
800 W

Frequency Range
50 - 20000 Hz

Width
11.77 in

Height
20.47 in

Depth
12.2 in

Weight
34.17 lb

System characteristic
DSP modes

Factory Presets (4 types)

Sub Setting (Sub Setting menu is for selecting the high-pass frequency or matching subwoofer)

EQ (4-band equalizer)

User Programs (16 presets)

DSP presets modes

Factory presets

LIVE
MUSIC
SPEECH
MONITOR

Maximum Sound Pressure
129 dB

Cross Over Frequency
2 kHz

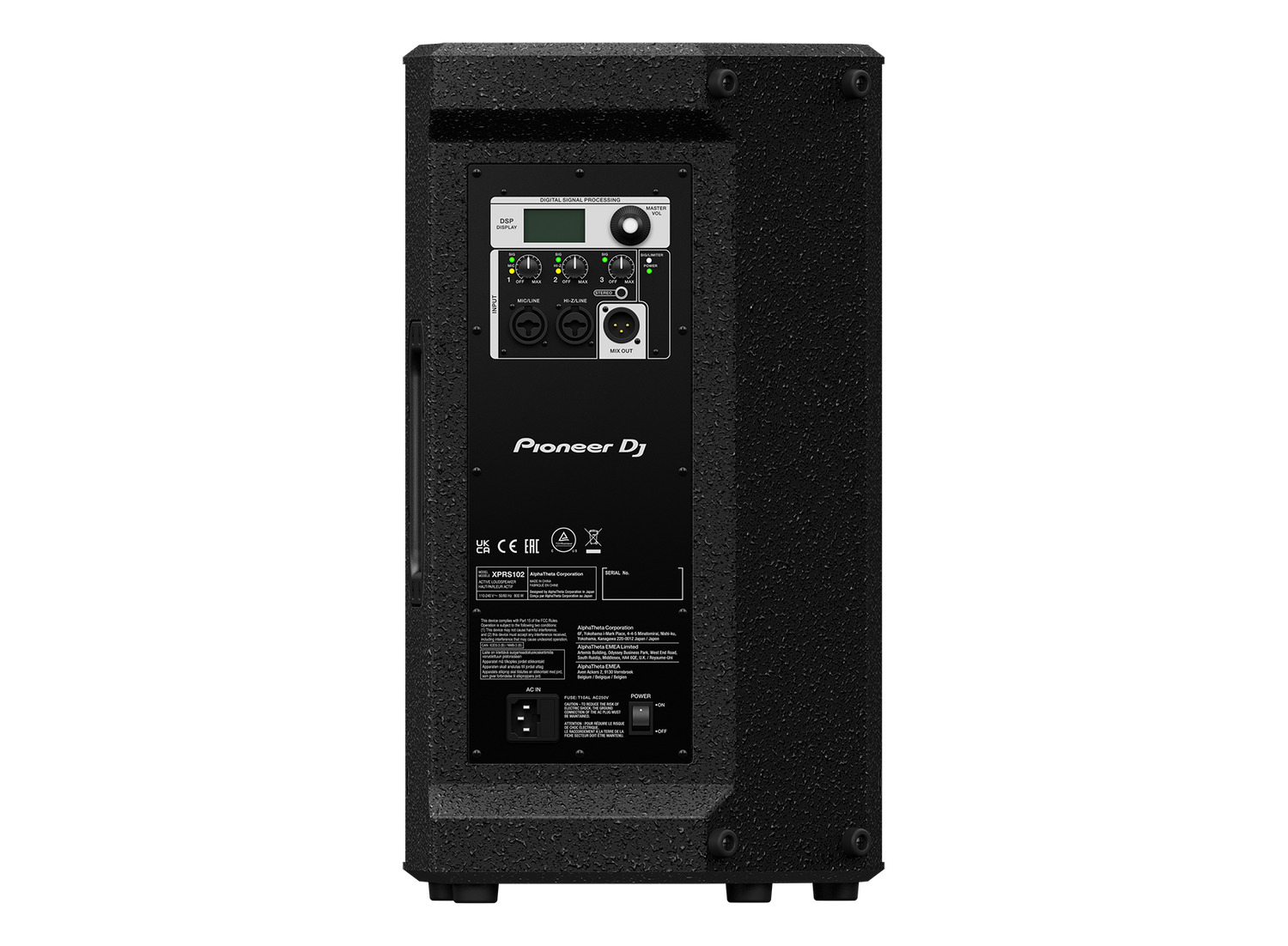

Terminals

nputs
MIC / LINE x 1 (Combo)
HI-Z / LINE x 1 (Combo)
3.5 mm stereo mini jack x 1 (Unbalanced input)

Outputs
MIX (XLR)

Speaker
Driver
10 inch ferrite LF cone driver
1.75 inch compression driver

Finish
Black paint, Rubber feet

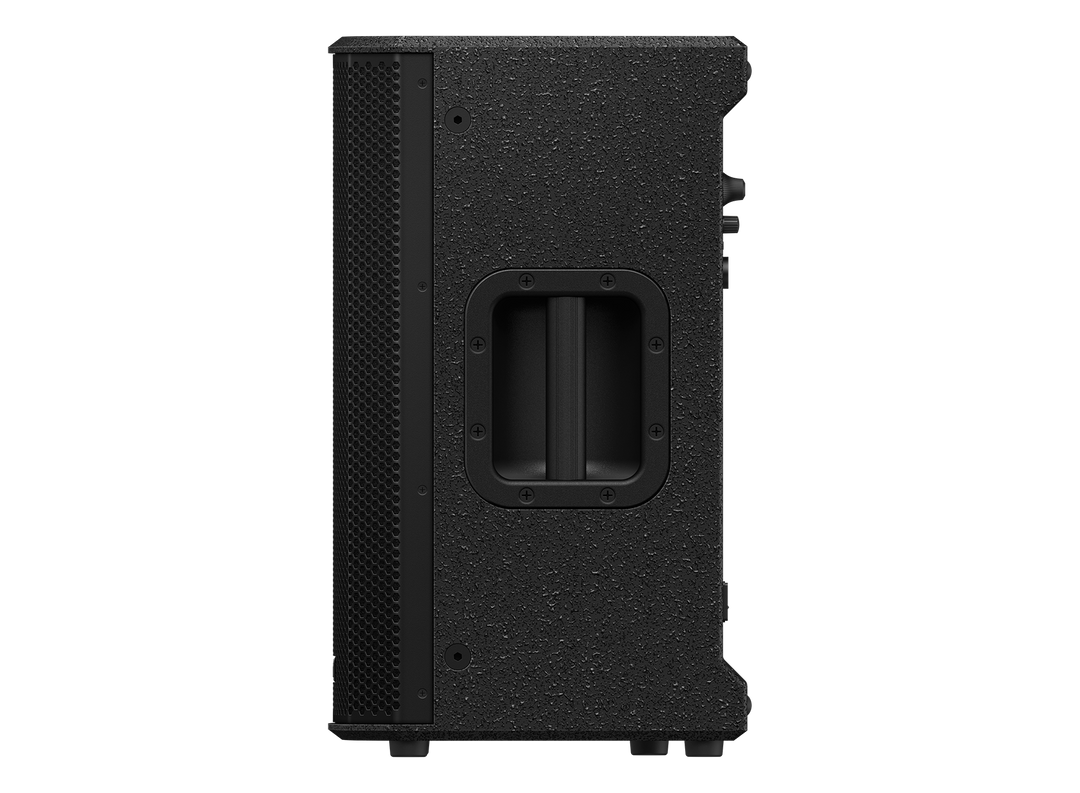

Handle

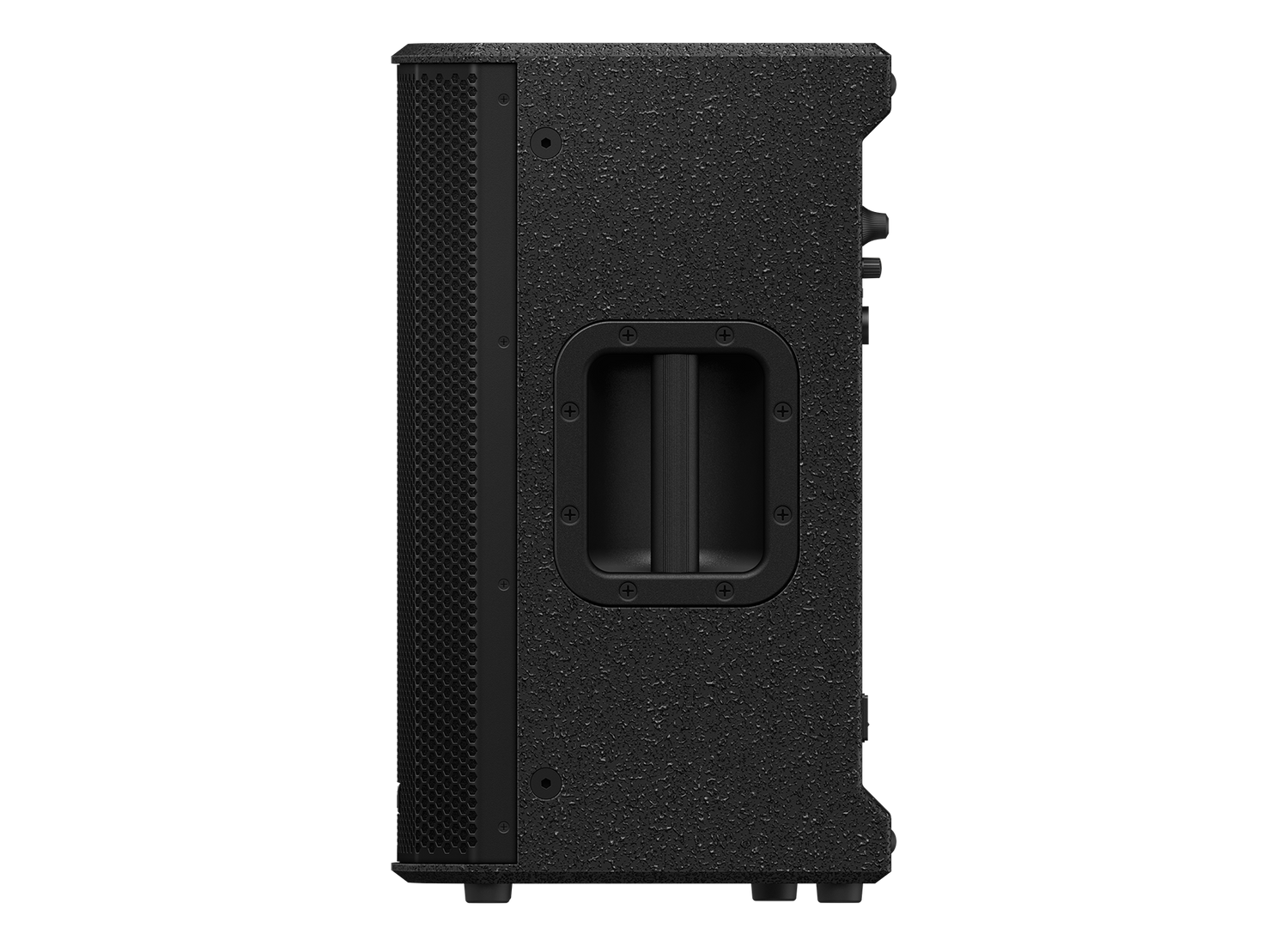

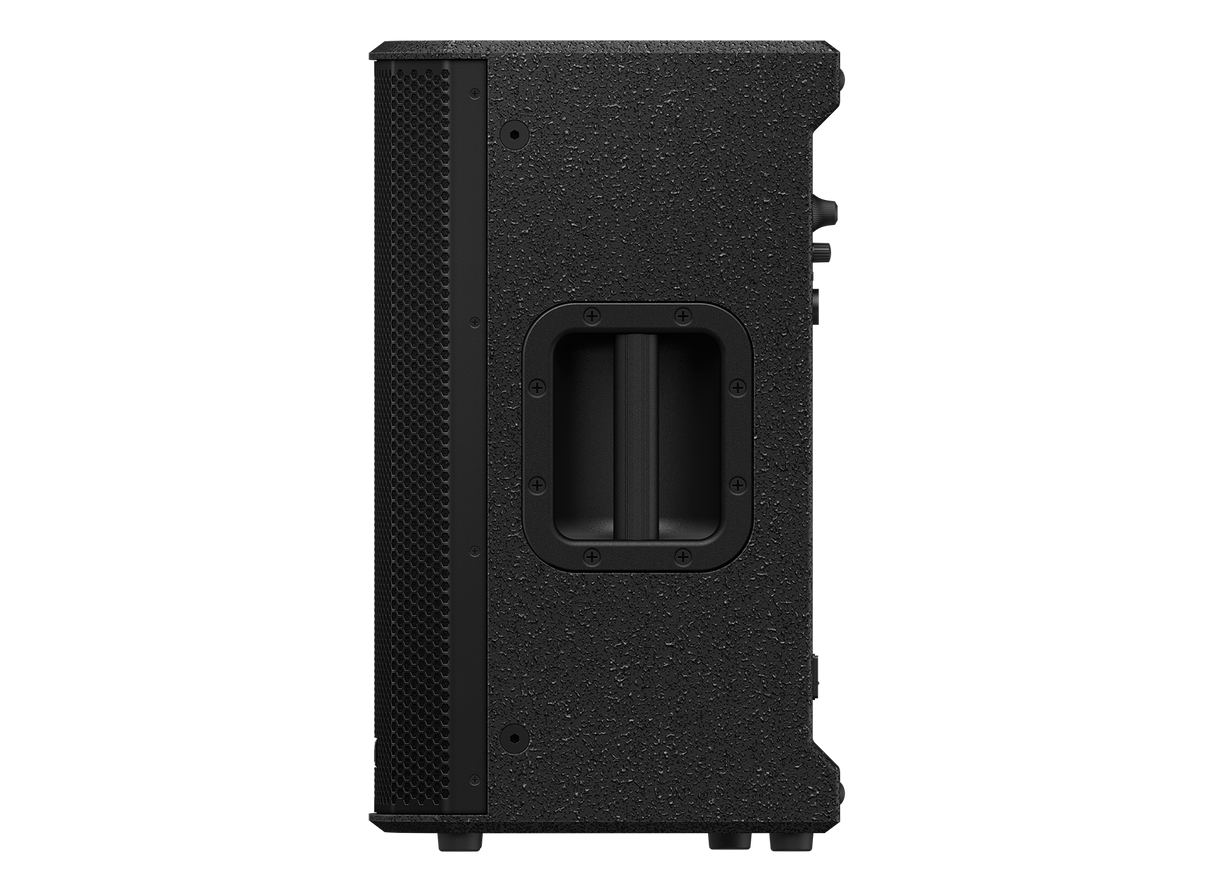

1 metal handle (on left side)

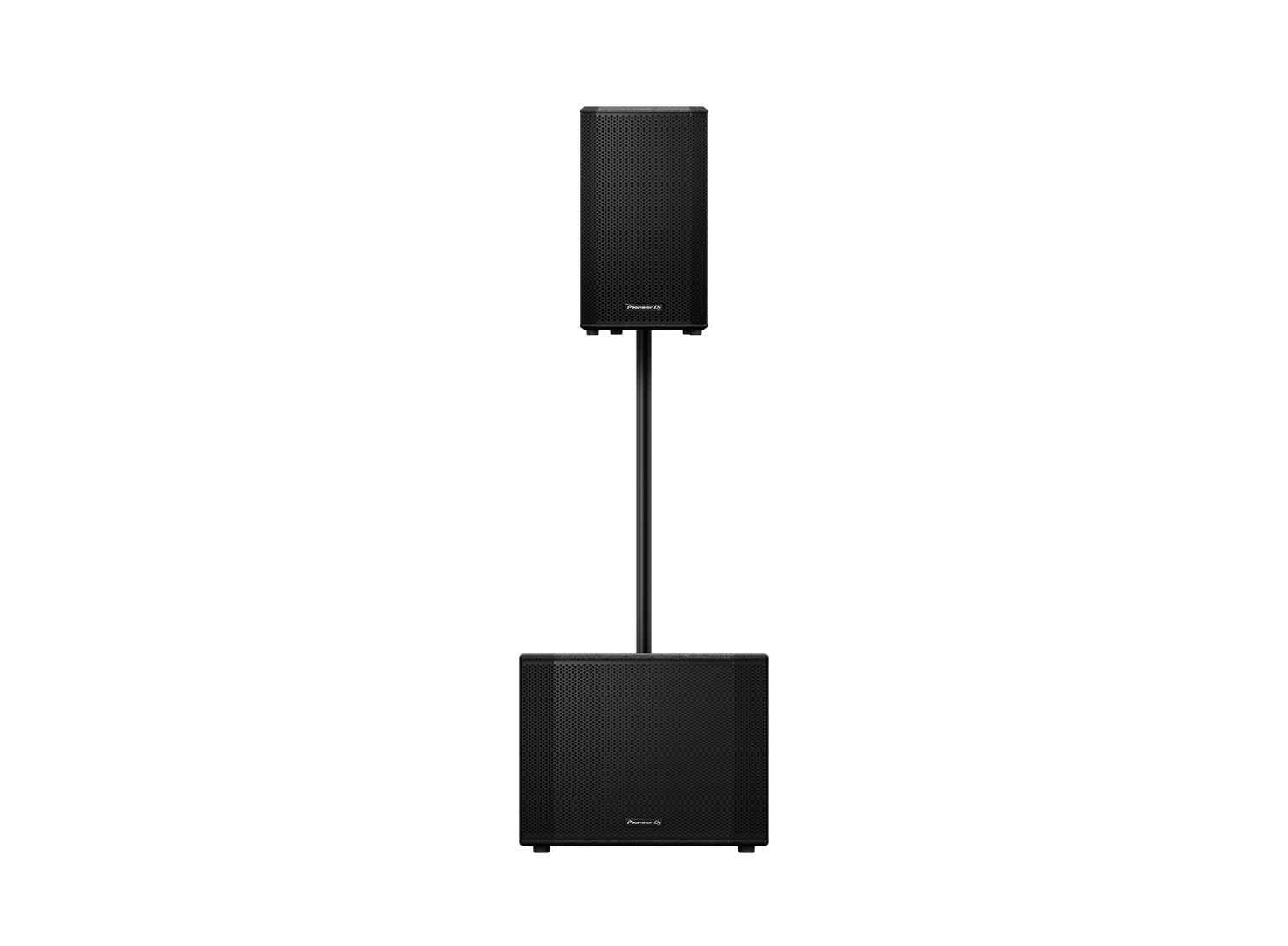

Pole socket
35 mm socket

Rigging point
10x M10

Enclosure
Plywood (TSCA)

Protection
Amplifier Protection
Thermal limiting
Digital Limiter
Digital compressor
Driver Protection
Short circuit protection
Power unit Protection
Primary AC mains overcurrent protection
Primary AC mains overvoltage protection
