Yamaha MG12 Mixer
Beskrivelse
Beskrivelse
- Kompakt livemixer med 12 kanaler
- D-PRE mic preamps
- 1-knaps kompressorer
- Phantom power + PAD switch
- 3-bånds EQ + high pass filter

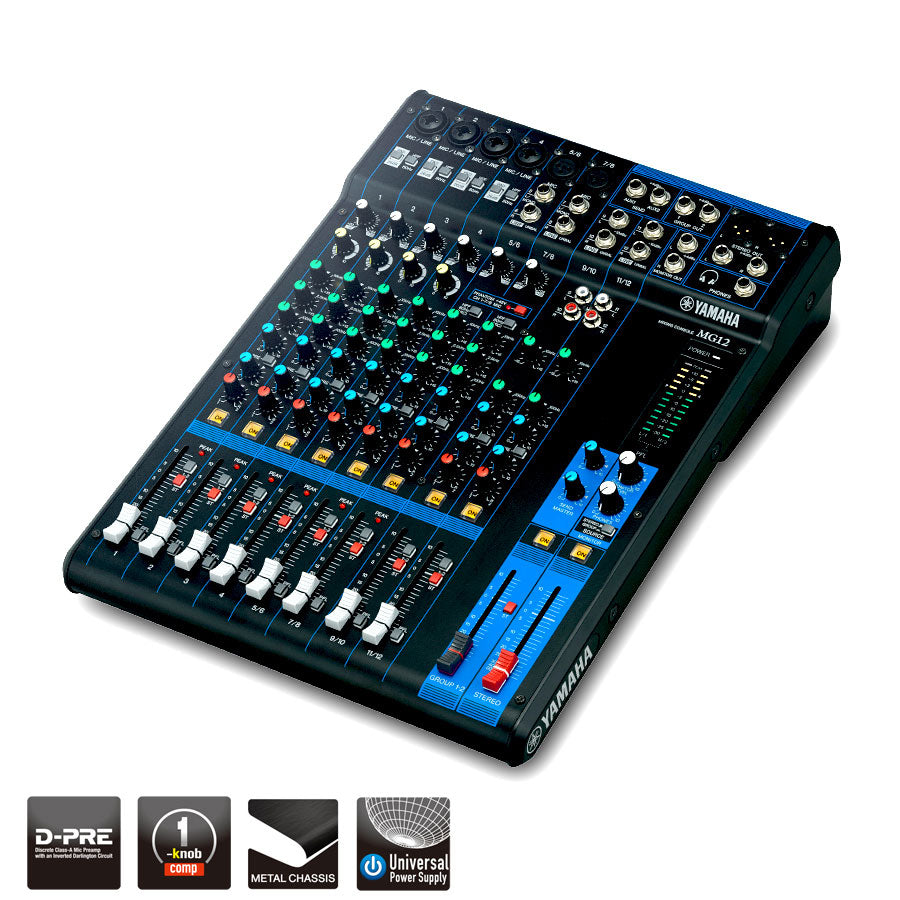

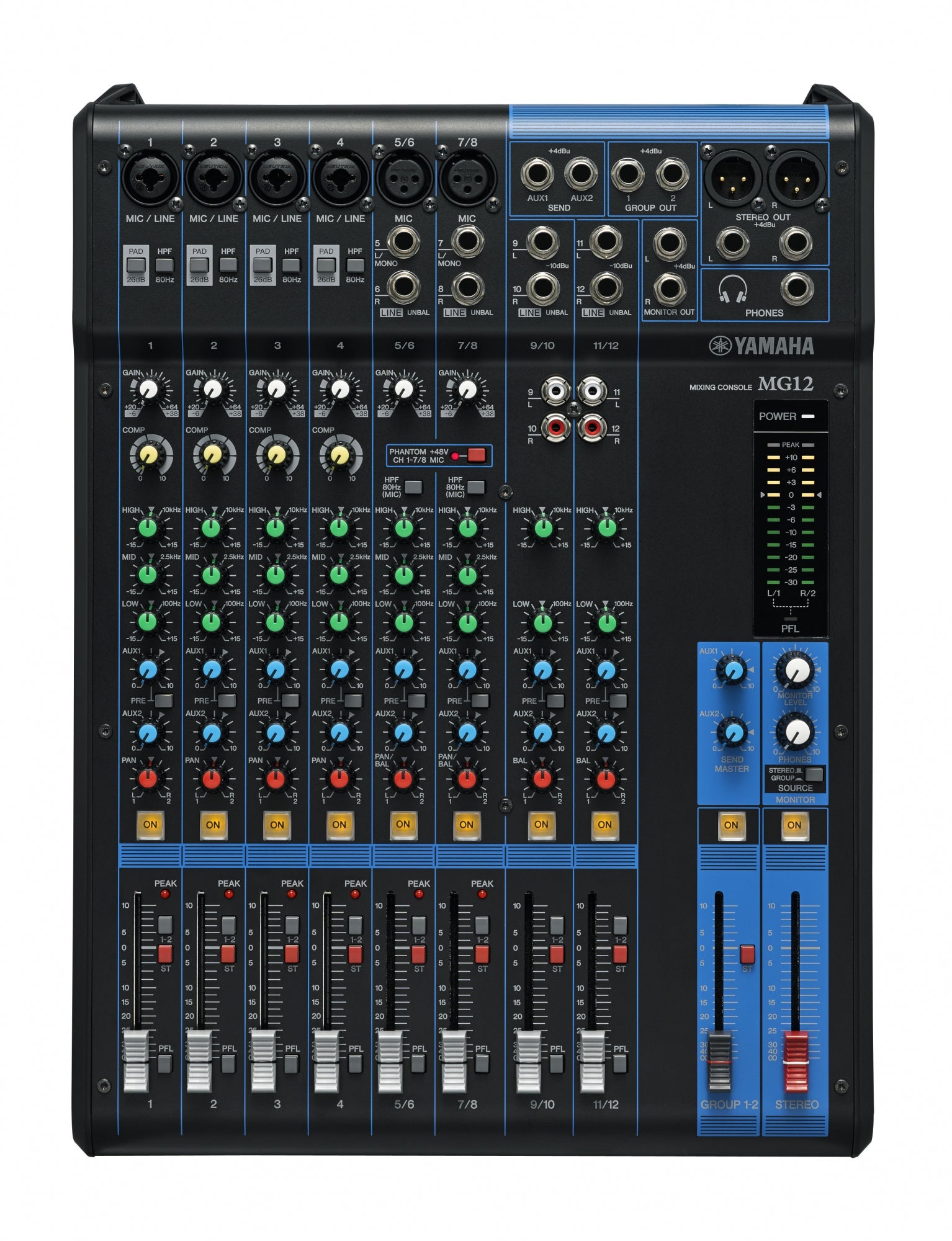

Yamaha MG12 Livemixer
Yamaha MG12 er en 12-kanals livemixer med 6 mic/12 line inputs, 48 V phantom power, PAD-switch på mono-inputs, 3-bånds EQ og high pass filter til eliminering af uønskede lavfrekvente lyde.

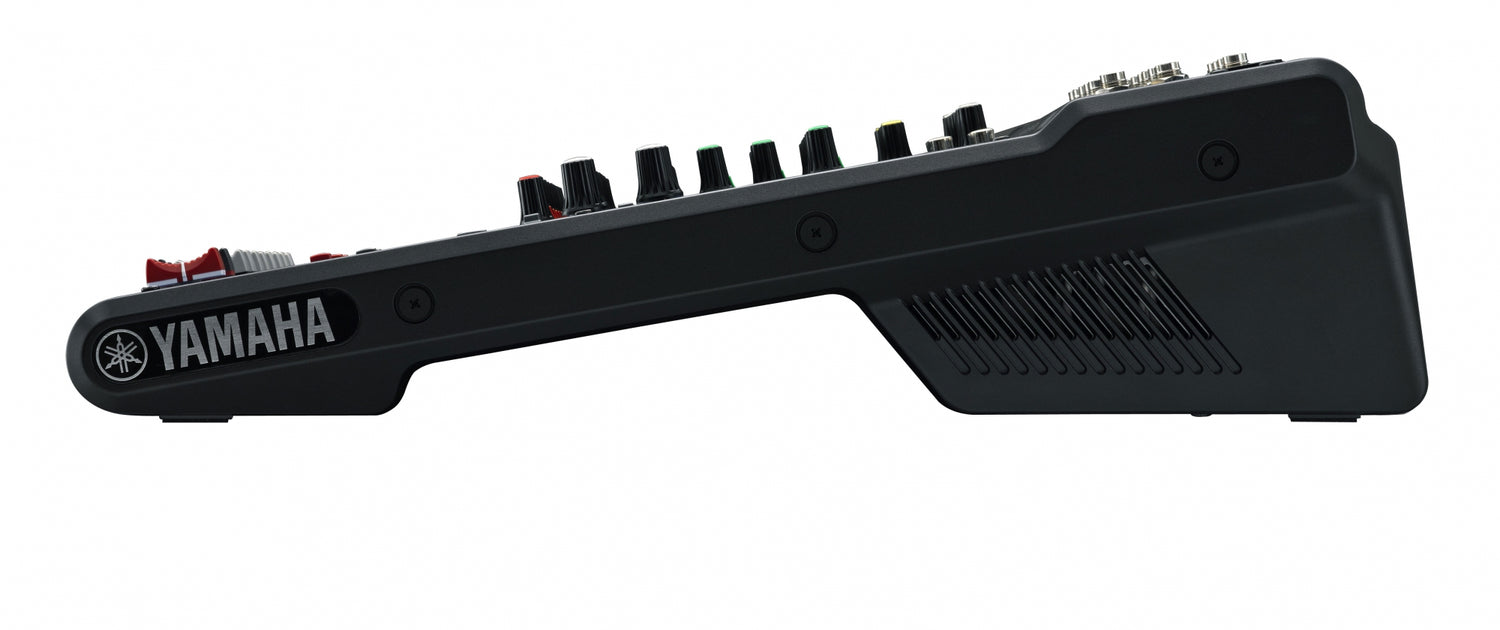

Mixeren er bygget i pulverlakeret metalchassis med et strømlinet design, der gør MG12 holdbar og sørger for passiv afkøling af komponenter.
D-PRE mic preamps
Yamaha MG12 er udstyret med klasse A D-PRE mic preamps med inverteret Darlington-kredsløb og operationsforstærkere, hvilket giver mixeren mere effekt og reduceret impedans. D-PRE preampen kan ved hjælp af dens brede frekvensgang håndtere signaler fra alle lydkilder.
1-knaps kompressorer
Ved blot at dreje en enkel knap kan du justere kompressor på Yamaha MG12 og dermed tilpasse lydsignalet til instrumenter som guitarer, basser, trommer mm.
Yderligere Specifikationer
Yderligere Specifikationer
Specifications | |
Outline | |
| Phantom Power I/O | +48 V |
Input Channels | |
| Mono[MIC/LINE] | 4 |
| Mono/Stereo[MIC/LINE] | 2 |
| Stereo[LINE] | 2 |
Output Channels | |
| STEREO OUT | 2 |
| MONITOR OUT | 1 |
| PHONES | 1 |
| AUX SEND | 2 |
| GROUP OUT | 2 |
| Bus | Stereo: 1, GROUP: 2, AUX: 2 |
Input Channel Function | |
| PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) |
| COMP | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec |
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ MID | Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking |
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter | 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
General Specifications | |
| Total harmonic distortion | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min |
| Frequency response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise | -102 dBu (STEREO OUT, STEREO master fader: Min) |
| Crosstalk | -78 dB |
| Power requirements | AC 100 – 240 V, 50 / 60 Hz |
| Power consumption | 22 W |
| Width | 308 mm (12.1") |
| Heigth | 118 mm (4.6") |
| Depth | 422 mm (16.6") |
| Net weight | 4.0 kg (8.8 lbs.) |
| Accessories | Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Optional Accessory: Rack-mount kit RK-MG12 |
| Others | Operating Temperature: 0 to +40˚C |
