Yamaha MG12XU Mixer
Beskrivelse
Beskrivelse
- 12-kanals livemixer
- D-PRE mic preamps
- SPX med 24 programmer
- Leveres med Cubase Al-software
- Kompatibel med iPad 2 eller nyere

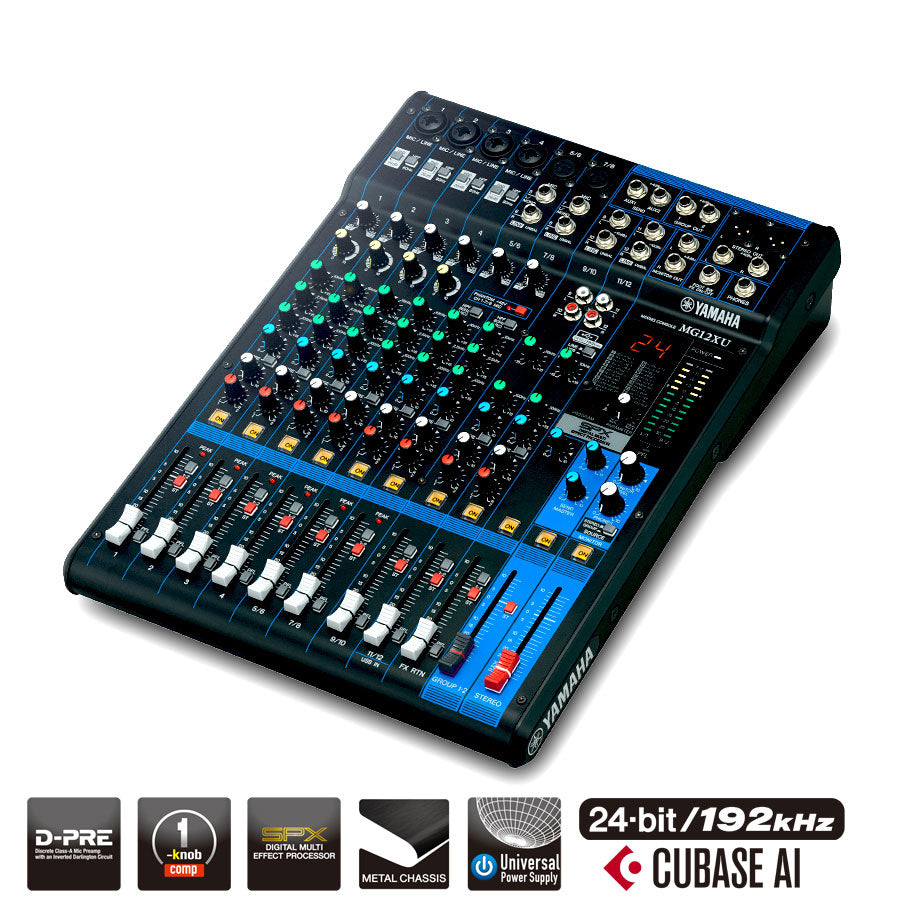

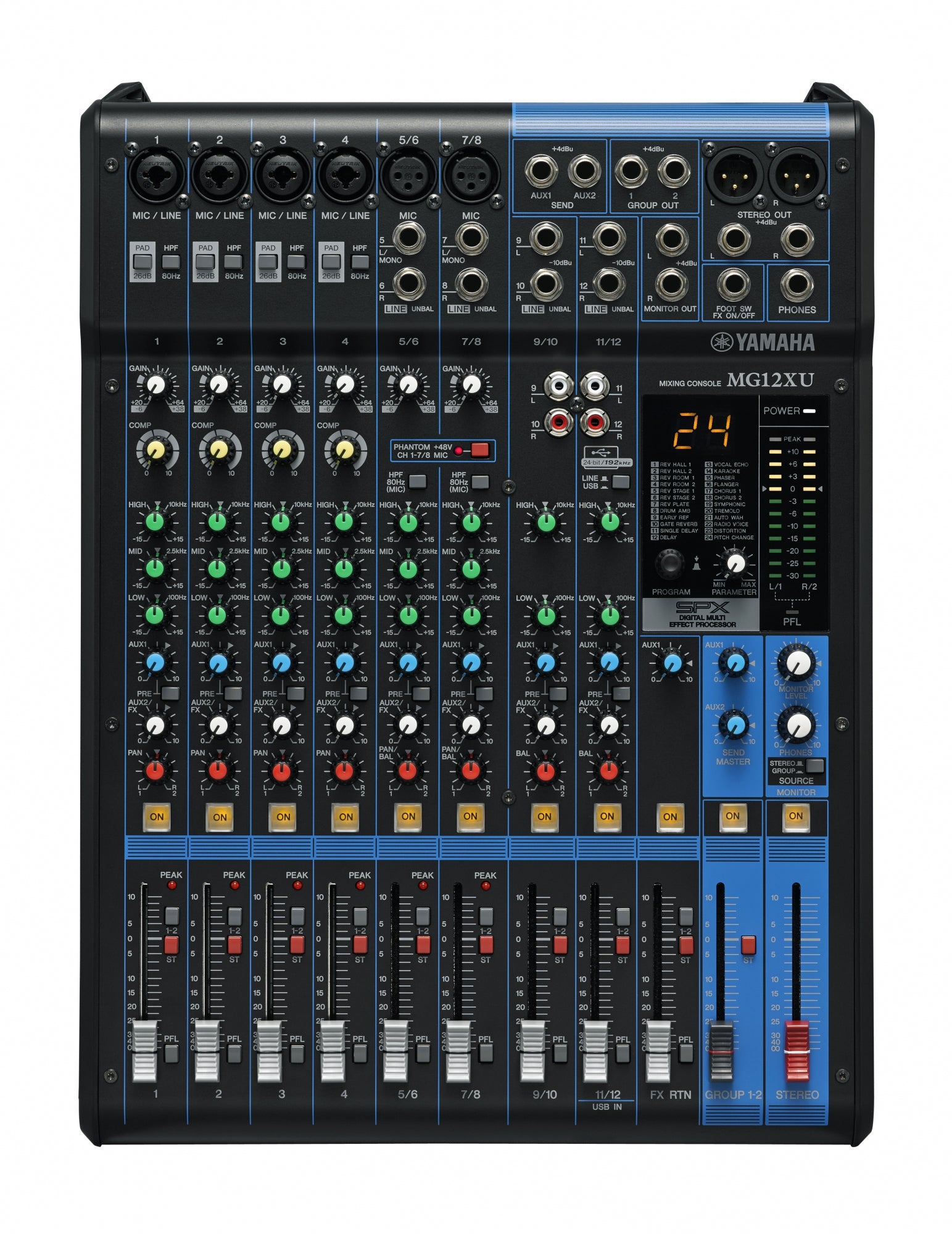

Yamaha MG12XU Livemixer
Yamaha MG12XU er en livemixer med 12 kanaler, der benytter 6 mic/12 line inputs (4 mono + 4 stereo). Mixeren kommer med 48 V phantom power, PAD-switch, 3-bånds EQ, kompressorer og high pass filter til reducering af uønskede lavfrekvente lyde.
MG12XU er konstrueret i robust metalchassis og er kompatibel med iPad 2 eller nyere versioner. Mixeren leveres med licens til Cubase Al-software.
D-PRE mic preamps
Yamaha MG12XU fås med indbygget D-PRE mic preamps med inverteret Darlington-kredsløb, der giver optimal effekt, lavere impedans og en bred frekvensgang til håndtering af alle lydsignaler.
24 SPX effekter
Med MG12XU-modellen får du Yamahas velkendte SPX digitale effektprocessor med 24 forskellige indbyggede effekter, som alle kan justeres og tilpasses din lydmix. Mixeren har chorus, flanger, distortion, reverb, delay mm.
Yderligere Specifikationer
Yderligere Specifikationer
Specifications | |
Outline | |
| Mixing capability, On-board processors | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
| Phantom power I/O | +48 V |
| Digital I/O | USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit |
Input Channels | |
| Mono[MIC/LINE] | 4 |
| Mono/Stereo[MIC/LINE] | 2 |
| Stereo[LINE] | 2 |
Output Channels | |
| STEREO OUT | 2 |
| MONITOR OUT | 1 |
| PHONES | 1 |
| AUX SEND | 2 |
| GROUP OUT | 2 |
| Bus | Stereo: 1, GROUP: 2, AUX: 2 (incl. FX) |
Input Channel Function | |
| PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) |
| COMP | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec |
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ MID | Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking |
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter | 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
General specifications | |
| Total harmonic distortion | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min |
| Frequency response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise | -102 dBu (STEREO OUT, STEREO master fader: Min) |
| Crosstalk | -78 dB |
| Power requirements | AC 100 – 240 V, 50 / 60 Hz |
| Power consumption | 22 W |
| Width | 308 mm (12.1") |
| Height | 118 mm (4.6") |
| Depth | 422 mm (16.6") |
| Net weight | 4.2 kg (9.3 lbs.) |
| Accessories | Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5 |
| Others | Operating Temperature: 0 to +40˚C |
