Yamaha MG16 Mixer
4.283 kr.
Stk. pris
/
Ikke tilgængelig
Beskrivelse
Beskrivelse
- 16-kanals livemixer
- 10 mic/16 line inputs
- D-PRE mic preamps med operationsforstærkere
- Kompressor til ændring af lydsignaler
- Robust metalchassis

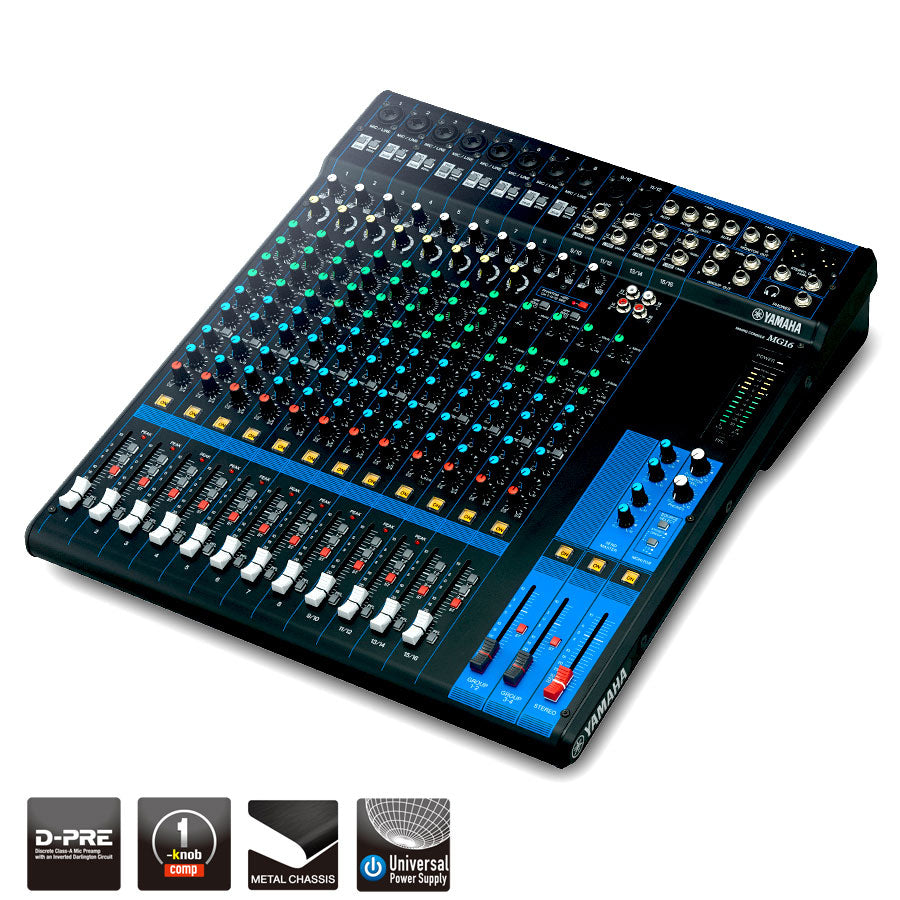

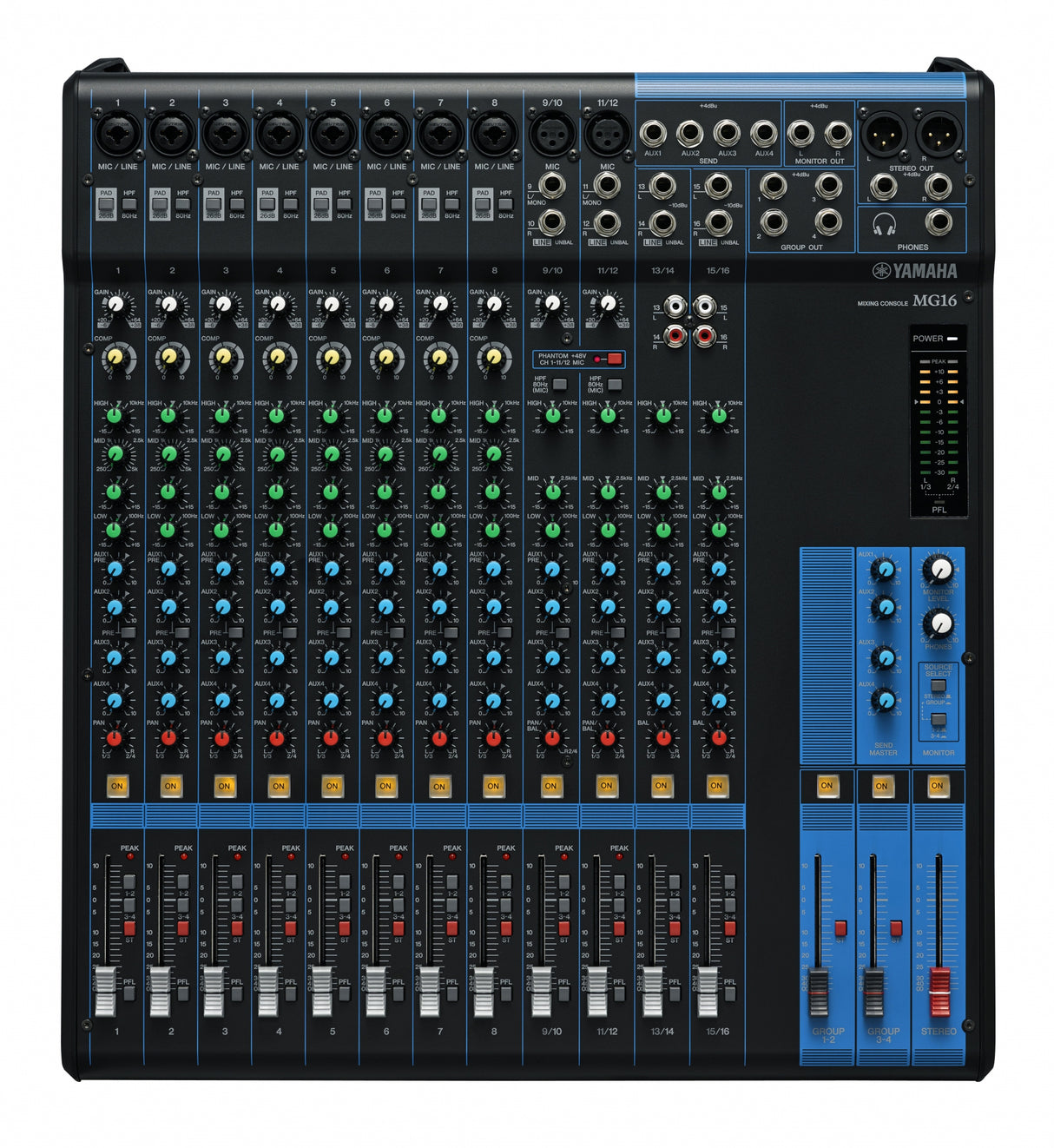

Yamaha MG16 Livemixer
Yamaha MG16 er en 16-kanals livemixer med 10 mic/16 line inputs (8 mono + 4 stereo), 4 AUX-sends, 48 V phantom power, PAD-switch på mono-inputs, 3-bånds EQ og high pass filter til optimering af mixlyd.
MG16 er bygget i robust pulverlakeret metalchassis, der sikrer holdbarhed og passiv afkøling af komponenter.
D-PRE mic preamps
Yamaha MG16 er udstyret med klasse A D-PRE mic preamps med operationsforstærkere, der giver lavere impedans og mere effekt. D-PRE preampen har en bred frekvensgang til håndtering af signaler fra alle lydkilder.
1-knaps kompressorer
Med indbyggede 1-knaps kompressorer på Yamaha MG16 kan du ændre dynamikken af lydsignaler og derved tilpasse signalet til guitarer, basser og trommer mm. ved blot at dreje på en enkel knap.
Yderligere Specifikationer
Yderligere Specifikationer
Specifications | |
Outline | |
| Phantom power I/O | +48 V |
Input Channels | |
| Mono[MIC/LINE] | 8 |
| Mono/Stereo[MIC/LINE] | 2 |
| Stereo[LINE] | 2 |
Output Channels | |
| STEREO OUT | 2 |
| MONITOR OUT | 1 |
| PHONES | 1 |
| AUX SEND | 4 |
| GROUP OUT | 4 |
| Bus | Stereo: 1, GROUP: 4, AUX: 4 |
Input Channel Function | |
| PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) |
| COMP | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec |
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ MID | Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking |
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping |
General specification | |
| Total harmonic distortion | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min |
| Frequency response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise | -102 dBu (STEREO OUT, STEREO master fader: Min) |
| Crosstalk | -78 dB |
| Power requirements | AC 100 – 240 V, 50 / 60 Hz |
| Power consumption | 30 W |
| Width | 444 mm (17.5") |
| Heigth | 130 mm (5.1") |
| Depth | 500 mm (19.7") |
| Net weight | 6.6 kg (14.6 lbs.) |
| Accessories | Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Rack-mount kit |
| Others | Operating Temperature: 0 to +40˚C |
Brand: Yamaha
SKU: YAM-MG16
